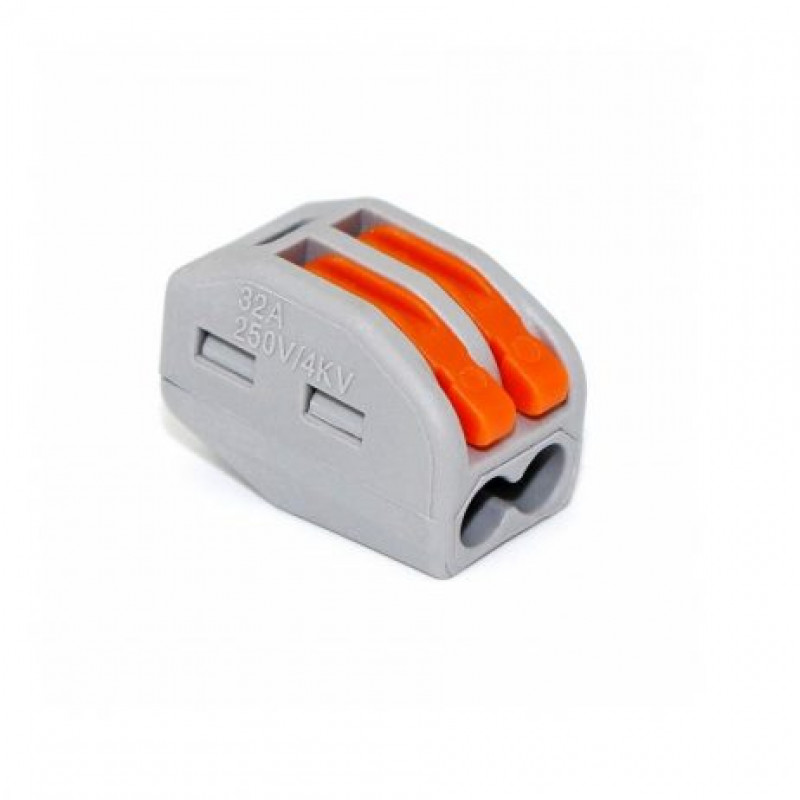

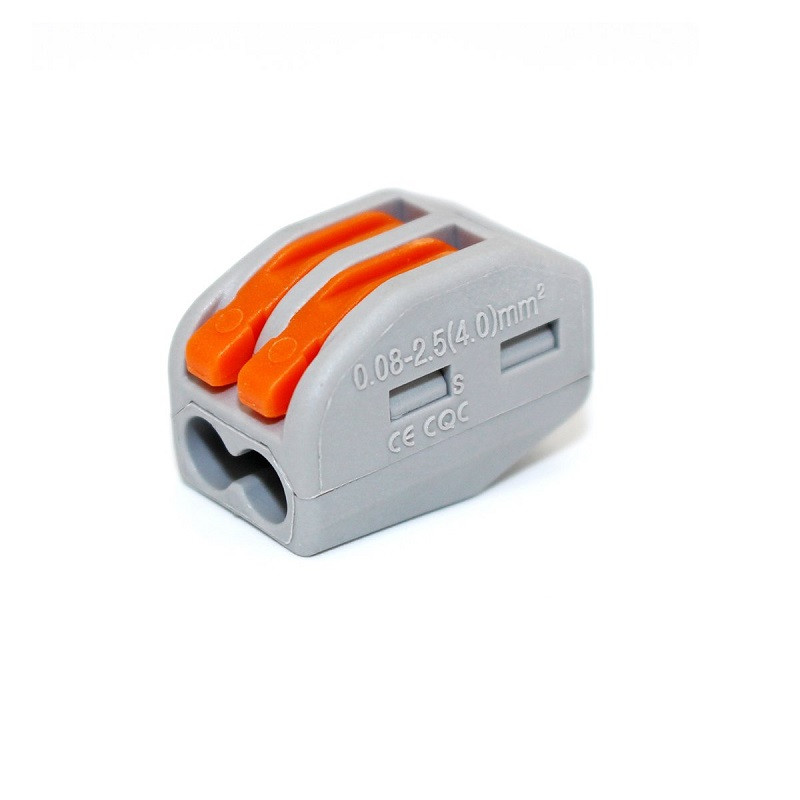

This is a PCT-212 Universal Terminal 0.08-2.5Mm Push-In Electrical Terminals for Cable Connection. PCT Spring Lever Connector PCT-212, 213, 215, 215, 218 and CH-812, 813, 2-4, 2-6, etc. comes with compact locking wire connector by a spring lever, which is used for single-strand hardwire with 0.08mm to 2.5mm2area or soft wire with 0.08mm to 4.0mm2 area (or AWG28 to AWG12). This connector can tolerate the rated voltage up to 400V with an electric current peak of 32A, result in a maximum of 7KW Power.


Features:

  1. High-grade Insulative Nylon Material
  2. Strong Spring Locking Lever
  3. Nickel Plated Metal Point Inside
  4. Good Temperature Resistance
  5. Compact Splicing Connector
  6. 4-Conductor Terminal Block
  7. With Operating Levers
  8. Max. Continuous Service Temperature 85C

Package Includes:

1 x PCT-212 Universal Terminal 0.08-2.5Mm Push-In Wire Connector



Specifications :-

Operating Voltage

250 V

Connector Type

Pin

Insulation Material Type

Nylon

Gauge

12

Terminal Type

Pin Terminal

Working Temperature Range (C)

-40 to 85

Shipment Weight

0.005 kg

Shipment Dimensions

6.5 5 1 cm

Write a review
Please login or register to review

* Product Images are shown for illustrative purposes only and may differ from actual product.

PCT-212 Universal Terminal 0.08-2.5Mm Push-In Electrical Terminals for Cable Connection

  • Product Code: EC-7661
  • Availability: 27
  • Rs.18.00
  • (Excluding 18% GST)
