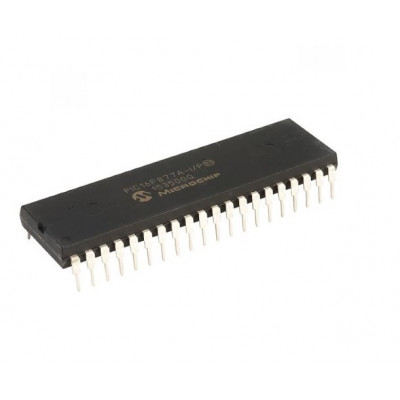

  • PIC16F877A Microcontroller

The PIC16F877A is a 28/40/44-Pin Enhanced Flash Microcontrollers . The following are the features:-

• Timer0: 8-bit timer/counter with 8-bit prescaler

• Timer1: 16-bit timer/counter with prescaler, can be incremented during Sleep via external crystal/clock

• Timer2: 8-bit timer/counter with 8-bit period register, prescaler and postscaler

• Two Capture, Compare, PWM modules

   - Capture is 16-bit, max. resolution is 12.5 ns

   - Compare is 16-bit, max. resolution is 200 ns

   - PWM max. resolution is 10-bit

• Synchronous Serial Port (SSP) with SPI (Master mode) and I2C™ (Master/Slave)

 Universal Synchronous Asynchronous Receiver Transmitter (USART/SCI) with 9-bit address detection

• Parallel Slave Port (PSP) – 8 bits wide with external RD, WR and CS controls (40/44-pin only)

• Brown-out detection circuitry for Brown-out Reset (BOR)

Specification:-

Parameter Value
Program Memory Type Flash
Program Memory Size (KB) 14
CPU Speed (MIPS/DMIPS) 5
SRAM (B) 368
Temperature Range (°C) -40 to 125
Operating Voltage Range (V) 2 to 5.5
Pin Count 40
Timers 2 x 8-bit, 1 x 16-bit
ADC Input 8 ch, 10-bit
Capture/Compare/PWM Peripherals 2 Input Capture, 2 CCP
Digital Communication Peripherals 1-UART, 1-SPI, 1-I2C1-MSSP(SPI/I2C)
Data EEPROM/HEF (bytes) 256


Related Document:-

 PIC16F877A IC Data Sheet

Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 218.3 (Inclusive of all Taxes)
Write a review
Please login or register to review

* Product Images are shown for illustrative purposes only and may differ from actual product.

PIC16F877A Microcontroller

  • Product Code: EC-0100
  • Availability: 374
  • Rs.269.00
  • (Excluding 18% GST)
