The PIC18F46K80-I/PT is a high-performance 8-bit Microcontroller with integrated ECAN featuring extreme Low Power consumption. New features in microcontrollers include low sleep current for low power applications, 1.8 to 5.5V operating voltage for automotive, building control, elevator control, and industrial applications, timers/enhanced compare/capture/PWMs for precision timing control, 12-bit ADC for advanced analog interface and charge time measurement unit for easy capacitive touch user interface. The PIC18F46K80-I/PT family is ideal for applications requiring cost-effective, low-power CAN solutions with high performance and robust peripheral set.

Features:

1. nanoWatt XLP Technology
2. 20nA Sleep Mode (Watch Webinar)
3. 300nA Watch Dog Timer Operation in Sleep Modes
4. Integrated ECAN Conforming to CAN 2.0B Active Specification
5. Extreme Low Power Sleep Mode Ideal for Battery Applications
6. Charge Time Measurement Unit (CTMU) Supports Touch Sensing and Advanced Sensing Applications
7. 11-channel, 12-bit ADC
8. 4 Capture/Compare/PWM Modules and 1 Enhanced Capture/Compare/PWM Modules
9. 1 MSSP Serial Ports for SPI or IC Communication
10. 2 Enhanced USART Modules
11. Two Analogue Comparators
12. Digital Signal Modulator
13. Self-Programming Flash Supports 10K Erase/Write Cycles and 20 Years Retention

Package Includes:

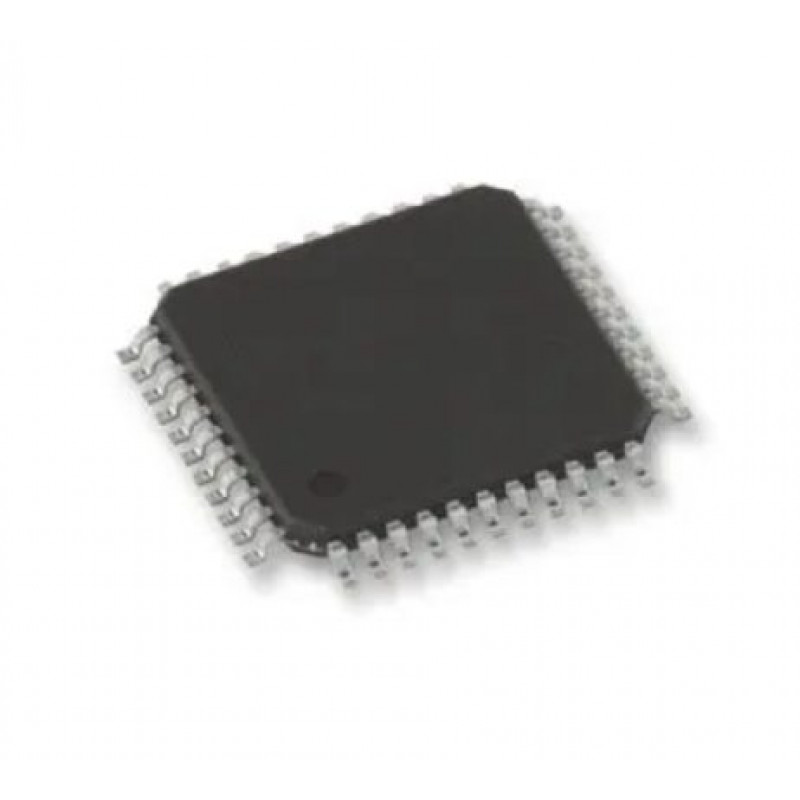

1 x PIC18F46K80-I/PT MICROCHIP 8 Bit MCU, Flash, PIC18 Family PIC18F K8x Series Microcontrollers, PIC18, 64 MHz, 64 KB, 44 Pins
