- Continuous short-circuit protection
- No-load input current as low as 5mA
- Operating ambient temperature range: -40℃ to+105℃
- High efficiency up to 85%
- Compact SMD package
- I/O isolation test voltage 1.5k VDC
- Industry standard pin-out
- IEC62368, UL62368, EN62368 approved
B0524LS-1WR3 series are specially designed for applications where an isolated (two isolated) voltage is required in a distributed power supply system. They are suitable for: pure digital circuits, low frequency analog circuits, relay-driven circuits and data switching circuits.
Features:-
Specifications:-
- I/p Voltage range: 4.5-5.5
- Nominal voltage:5 Vdc
- O/p voltage:24V
- O/p current:42/4(mA)
- Wattage:1W
- Isolation:1.5kVdc
- Package : SIP
Package Includes:-
1 x B0524LS-1WR3 Mornsun 5V to 24V DC-DC Converter 1W Power Supply Module - SIP Package
Download DATASHEET :
| Brand/Manufacturer | |
| Country Of Origin | |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

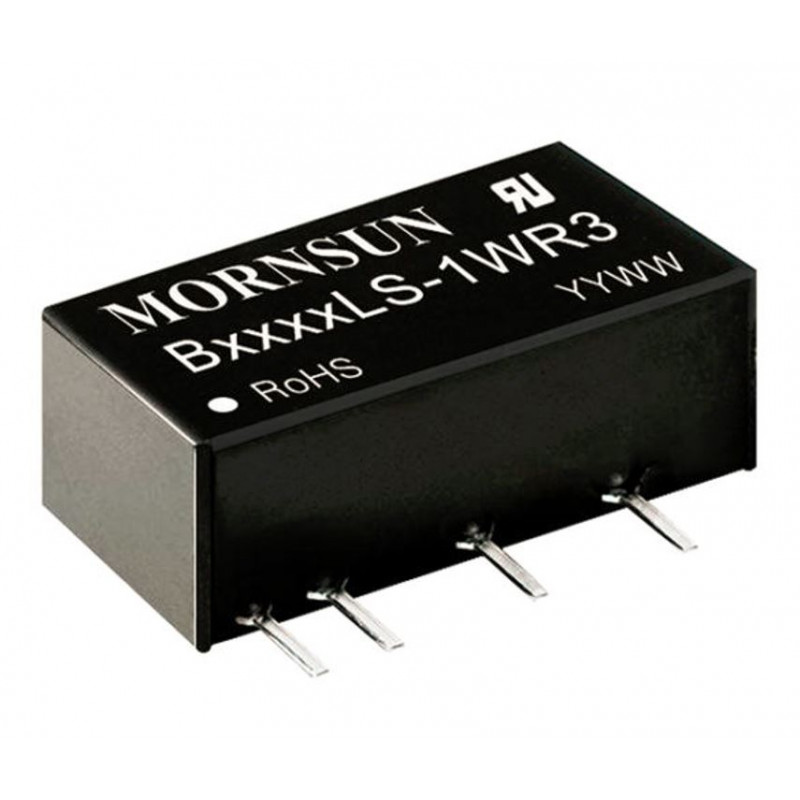

B0524LS-1WR3 Mornsun 5V to 24V DC-DC Converter 1W Power Supply Module - SIP Package
- Product Code: EC-16640
- Availability: Out Of Stock
-
Rs.225.00
- (Excluding 18% GST)
