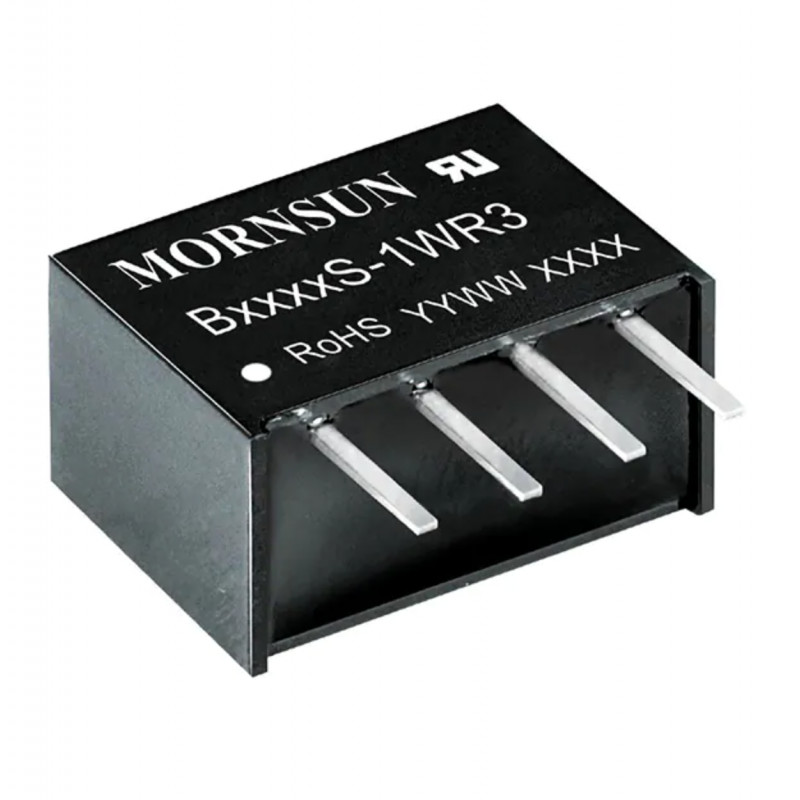

  • B2424S-1WR3 Mornsun 24V to 24V DC-DC Converter 1W Power Supply Module - Compact SIP Package

This B2424S-1WR3 Mornsun 24V to 24V DC-DC Converter 1W Power Supply Module - Compact SIP Package from Mornsun is specially designed for applications where an isolated voltage is required in a distributed power supply system. They are suitable for: pure digital circuits, low frequency analog circuits, relay-driven circuits and data switching circuits.


Features:

  1. Continuous short-circuit protection
  2. No-load input current as low as 8mA
  3. Operating temperature range: -40℃ to +105℃
  4. High efficiency up to 81%
  5. I/O Isolation Test voltage:1.5K VDC/min
  6. Industry standard pin-out
  7. Compact SIP package


Specifications:-

Model Number:            B2424S-1WR3
Input Voltage range:    21.6-26.4 Vdc
Nominal voltage:         24 Vdc
Output voltage:           24V
Output current:           42/5(mA)
Wattage:                    1W
Isolation Voltage:        1.5 kVdc/min
Package:                    SIP
Size:                          11.60mm(Length) X 6.00mm(Width) X 10.16mm (Height)
Weight:                      1.3gm

Package Includes:-

1 x B2424S-1WR3 Mornsun 24V to 24V DC-DC Converter 1W Power Supply Module - Compact SIP Package

Download DATASHEET :

Download

Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 352.82 (Inclusive of all Taxes)
Write a review
Please login or register to review

* Product Images are shown for illustrative purposes only and may differ from actual product.

B2424S-1WR3 Mornsun 24V to 24V DC-DC Converter 1W Power Supply Module - Compact SIP Package

  • Product Code: EC-10151
  • Availability: 9
  • Rs.399.00
  • (Excluding 18% GST)
