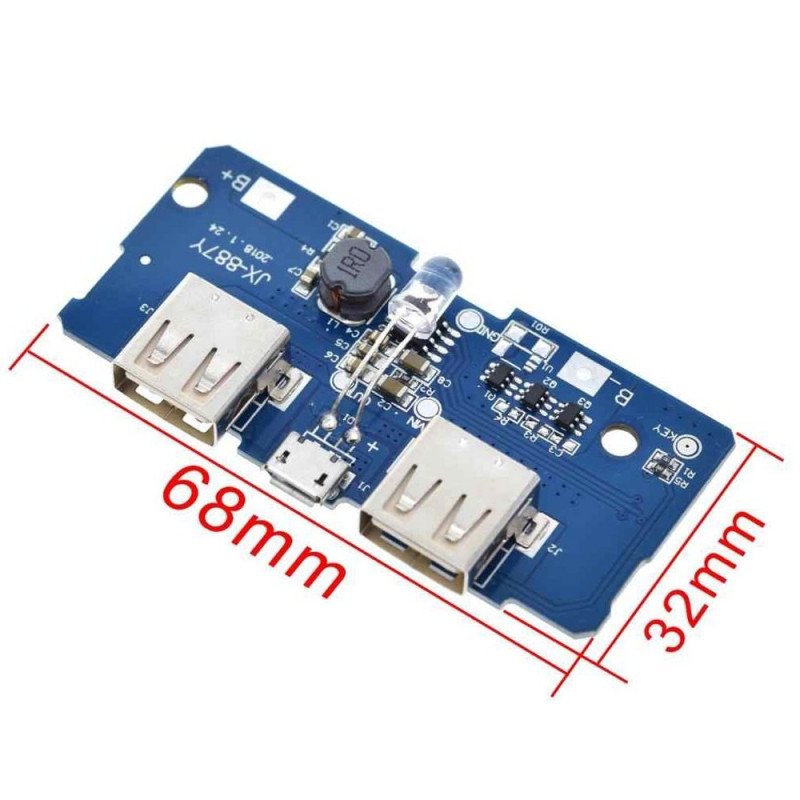

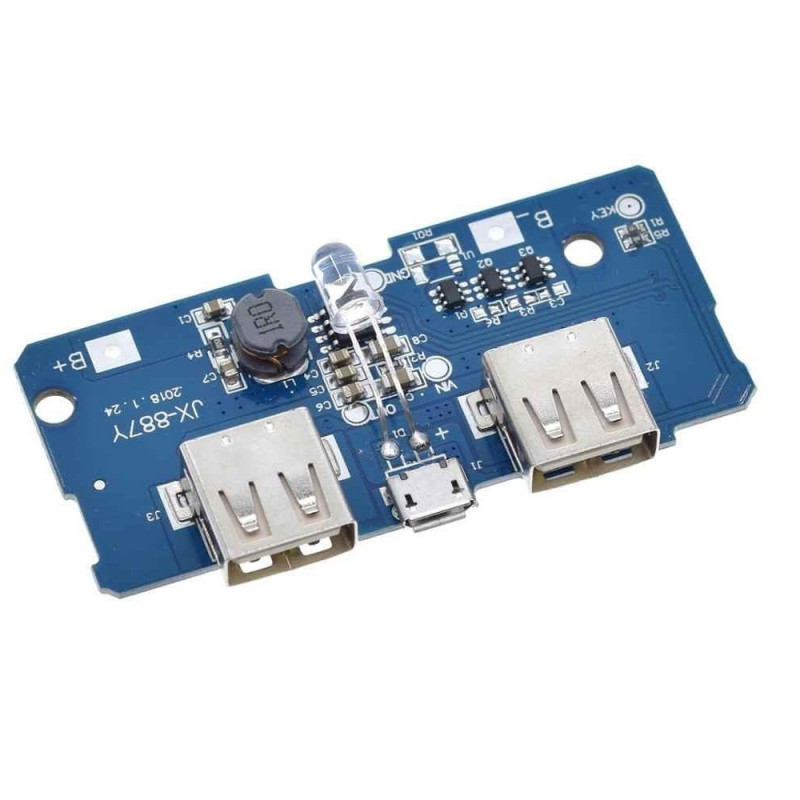

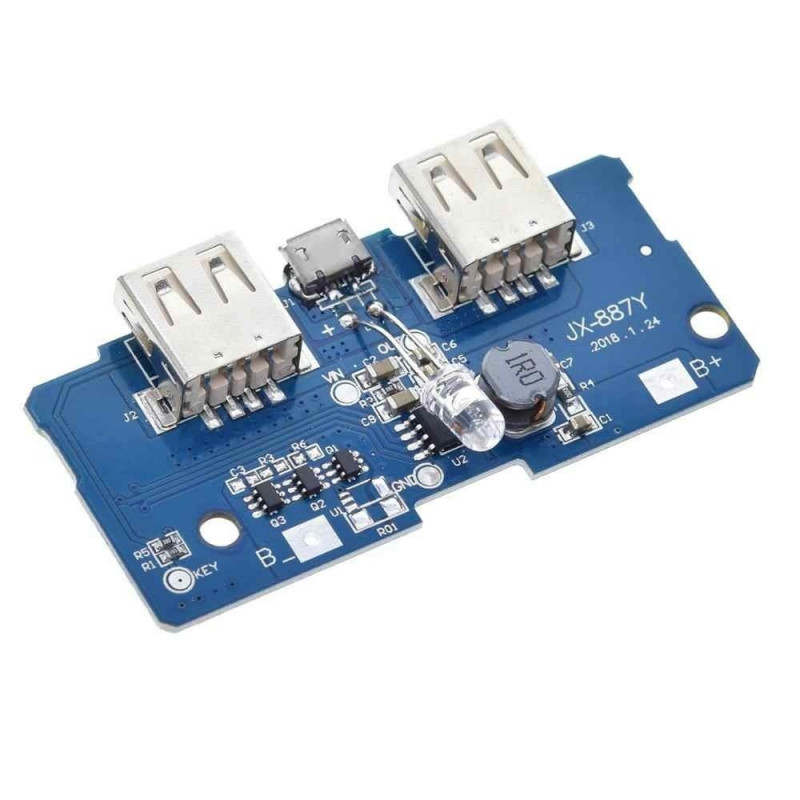

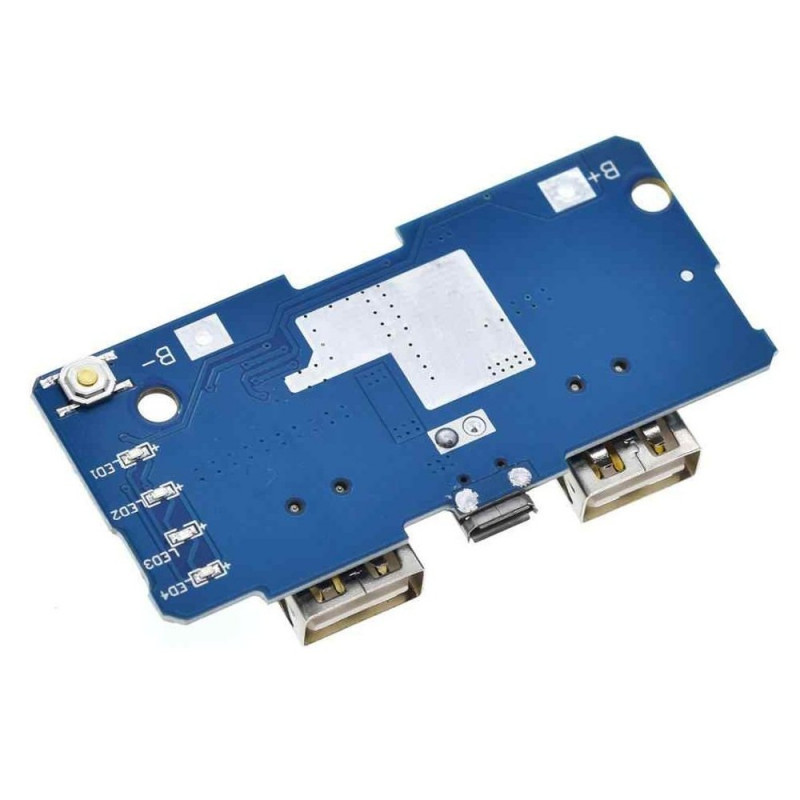

Dual Micro USB 3.7v to 5V 2A Mobile power bank charging module DIY 18650 Lithium Battery with LED. This is the mobile power module Accessories, 18650 Circuit board shell. Meet the individual needs of your DIY, but you must understand basic electronic assembly.


We need to note the following points when installing products:
  1. Batteries to parallel, the voltage in 3.2-4.2V can work between, 18650 flat and polymer battery can be.
  2. We can connect the battery to the motherboard B + negative-, installed against the necessary burning motherboard.
  3. New and old batteries, model brand inconsistent batteries cannot be mixed.


Features:

  1. 4-level LED lamp display power, not working state intelligent automatic shutdown;
  2. The built-in lithium battery protection IC, over-current, overpressure, under-voltage protection;
  3. Dual USB output ports.
  4. Input requirements: 5V constant voltage power supply can do charge input power, the most matching charger for 5V 1A above
  5. Requirements for rechargeable batteries:
  6. Compatible Batteries: 18650 batteries, cell phone batteries, flat-panel batteries, MP3 batteries, etc. 3.7v-4.2V polymer Lithium battery.


Package Includes:

1 x Dual Micro USB 3.7v to 5v 2A Power Bank Charging Module.



Specifications:

Input port

Micro USB

Output port

USB

Input Voltage (V)

3.7 ~ 5

Output parameters

5V 1A / 5V2A

Length (mm)

68

Width (mm)

34.5

Height (mm)

8.5

Weight (gm)

12


Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 282.02 (Inclusive of all Taxes)
