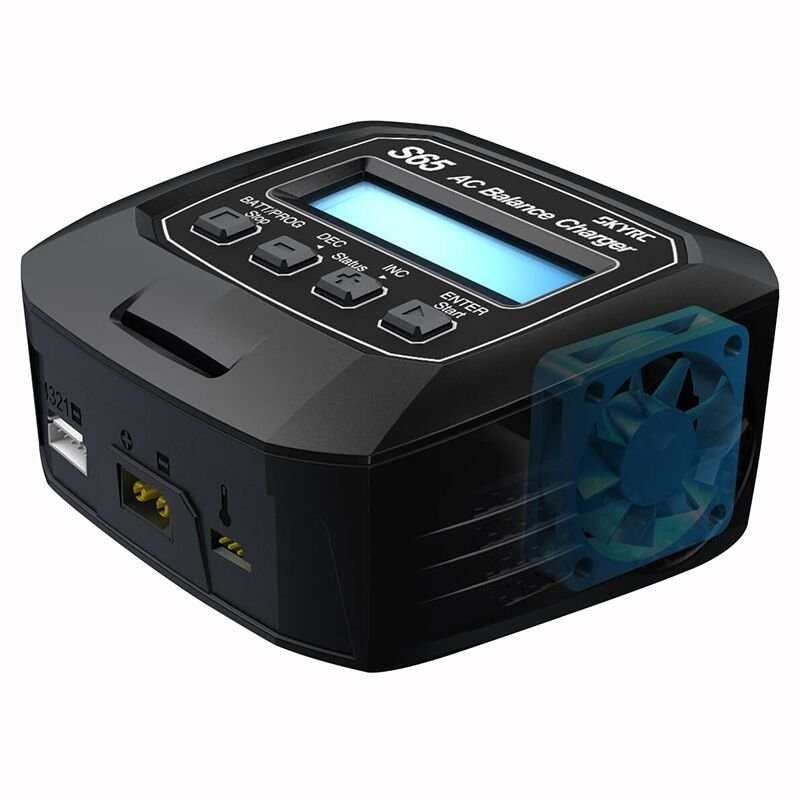

SKYRC S65 65W 6A is an AC input high-performance microprocessor control charge/discharge station with battery management suitable for use with all current battery types, LiPo, LiIon, LiFe, NiCd, NiMH, PB and also new generation LiHV with end voltage 4.35V. It is an AC input charger/discharger with compact size. The maximum charging power of SKYRC S65 65W 6A with a maximum charging current 6A and discharging current 2A.

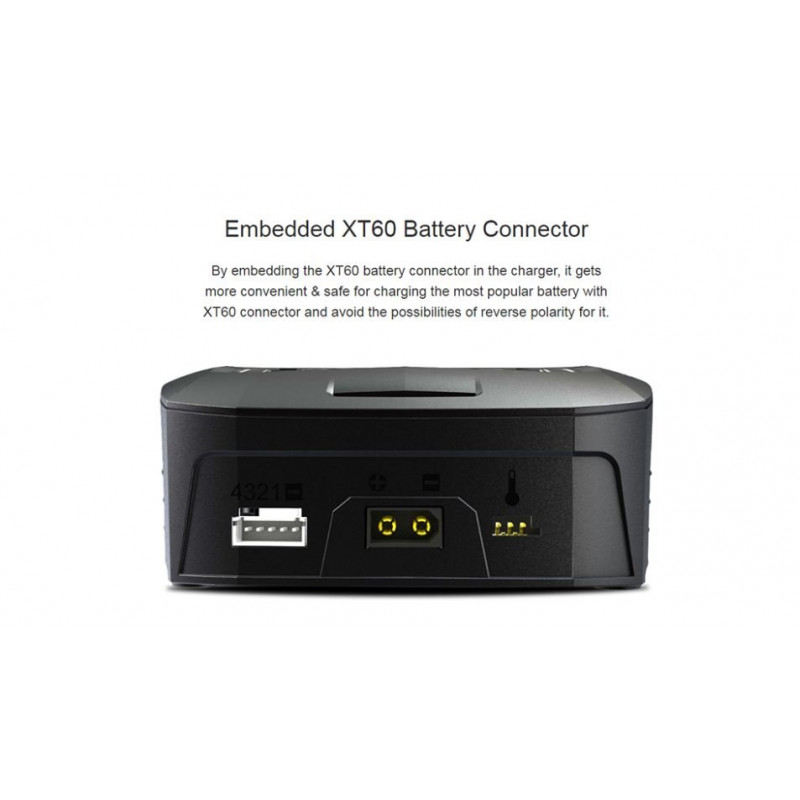

Embedded XT60 Battery Connector :

  • By embedding the XT60 battery connector in the charger, it gets more convenient & safe for charging the most popular battery with XT60 connector and avoid the possibilities of reverse polarity for it.


Battery Memory (Data Store/Load) :

  • The charger can store up to 10 different charge/discharge profiles for your convenience. You can keep the data pertaining to the program setting of the battery of continuous charging or discharging. Users can call out these data at any time without any special program setting.

AGM & Cold Charge Modes for PB Battery :
  • SKYRC S65 65W 6A can charge AGM battery and also can be used for charging PB battery at very low temperatures.

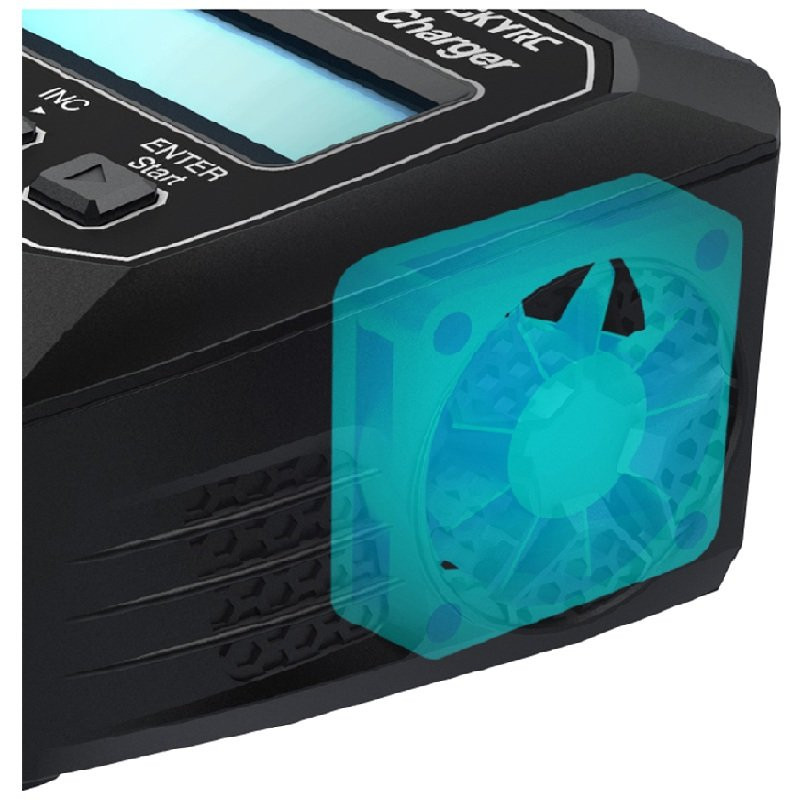

Smart & Efficient Cooling System :
  • Temperature controlled 7000rpm high-speed sleeve bearing cooling fan effectively blows the air through the extruded aluminium heat sink, effectively cooling the device.

Higher Accuracy with Three Decimals for Battery Voltage :
  • The charger firmware is highly optimized by displaying the battery voltage with three decimals during the process of charging & battery voltage measuring.

Temperature Thresholds:
  • If the temperature limit is reached, the process will be terminated.


Cautions:

  • 1) Never leave the charger unattended when it is connected to its power supply. If any malfunction is found, TERMINATE THE PROCESS AT ONCE and refer to the operation manual.
  • 2) Keep the charger well away from dust, damp, rain, heat, direct sunshine and vibration. Never drop it.
  • 3) The allowable AC input voltage is 100 ~ 240V AC
  • 4) This charger and the battery should be put on a heat-resistant, non-inflammable and non-conductive surface. Never place them on a car seat, carpet or similar. Keep all the inflammable volatile materials away from the operating area.
  • 5) Make sure you know the specifications of the battery to be charged or discharged to ensure it meets the requirements of this charger. If the program is set up incorrectly, the battery and charger may be damaged. It can cause fire or explosion due to overcharging.

Be very careful to choose the correct voltage for different types of battery otherwise you may cause damage to the batteries. Incorrect settings could cause the cells to fire or explode.


Package Includes :

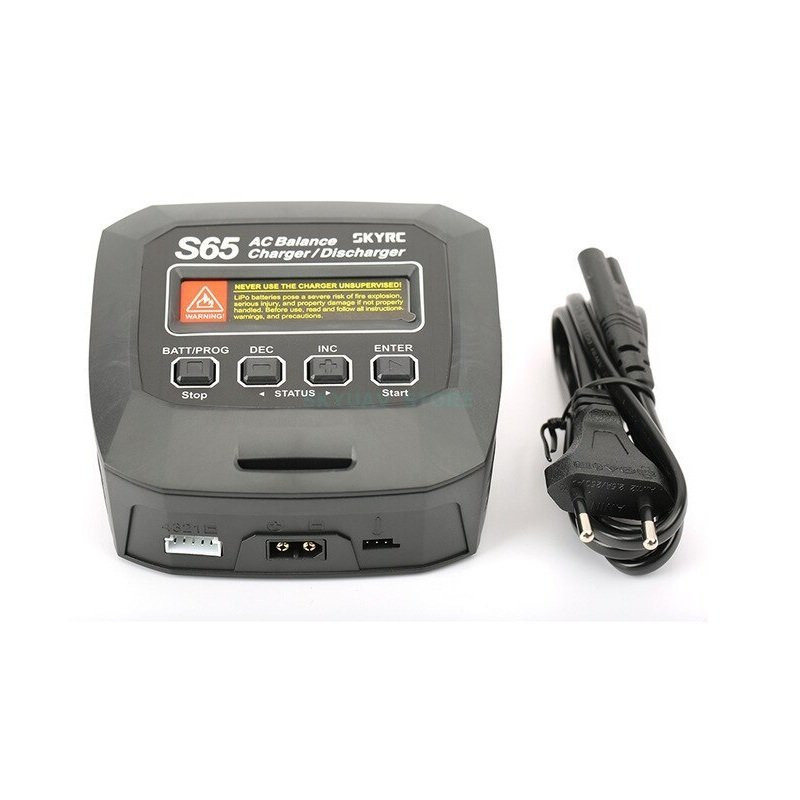

1 x SKYRC S65 65W 6A AC Balance Charger.

1 x AC Power Cord (EU plug).

1 x Instruction Manual.



Specifications:

Input Voltage (V AC)

100 ~ 240

Output Power(Watt)

65

Maximum Discharge Power (W)

10

Charge Current Range (A)

0.1 ~ 6

Discharge Current Range (A)

0.1 ~ 2.0

Trickle Charging Current

50mA 300mA & OFF

Drain Current for Balancing Li-Po's (mA/Cell)

200

Li-ion/Po cell count

2 ~ 4

NiCd/NiMH cell count

6~8 S

Pb battery voltage

6 ~ 12

Dimensions (mm) LxWxH

117 x 105 x 55

Weight (gm)

315
Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 5603.82 (Inclusive of all Taxes)
