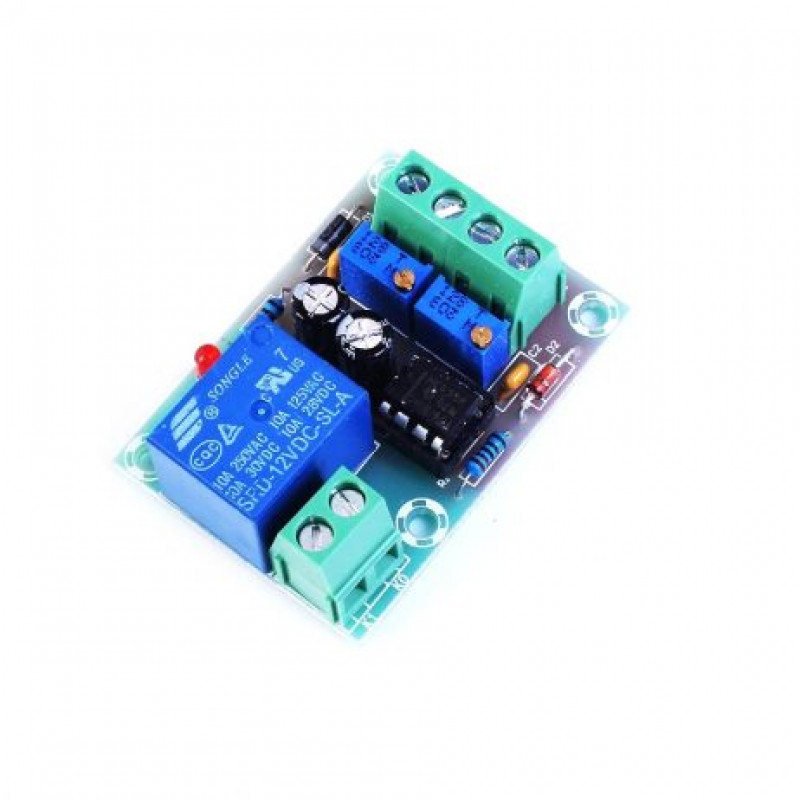

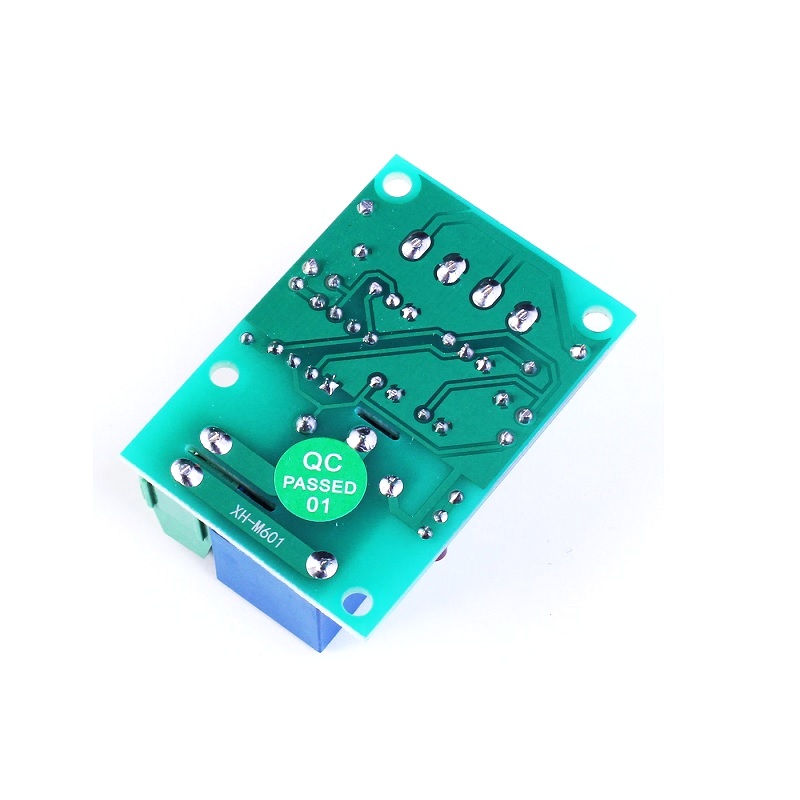

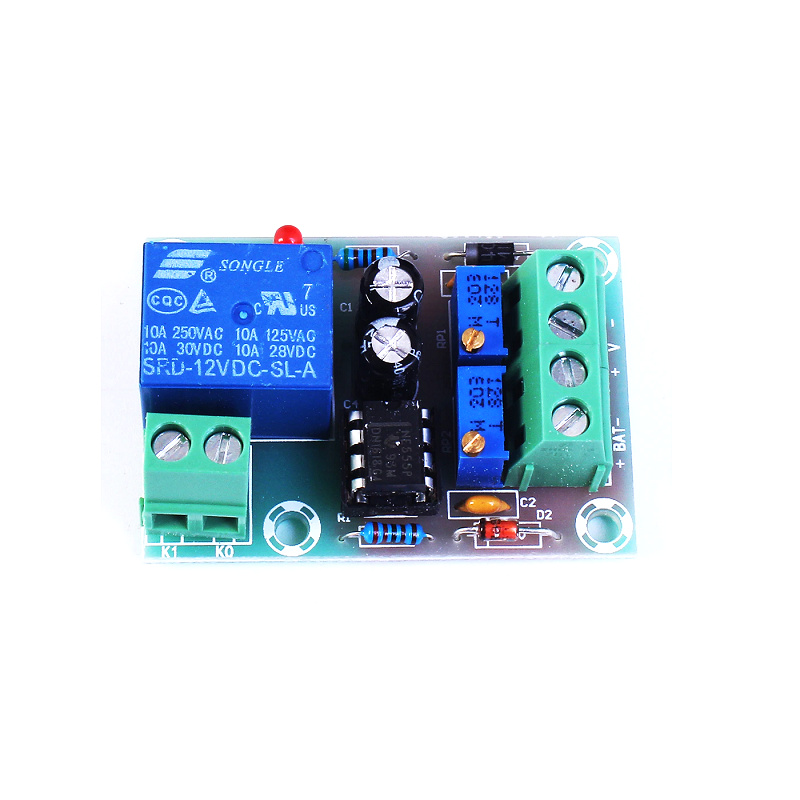

This XH-M601 Battery Charging Control Board 12V Intelligent Charger Power Supply Control Module Panel Automatic Charging/Stop Power.
Potentiometer Adjustment:
RP1:adjust storage battery start charging voltage (low voltage setting: clockwise becomes higher, counter-clockwise becomes lower)
RP2:adjust storage battery disconnect charging voltage (low voltage setting: clockwise becomes higher, counter-clockwise becomes lower)
Features:
- It is very smart and helps to save electricity, and is safe.
- Automatically power off, save energy and extend battery life.
- Durable, Charging Protection, Easy to Install
Specifications:
- Power Supply Voltage:13.8-14.8V
- Relay Operating Voltage:12.4V
- Relay Disconnect Voltage:14.8V
- Voltage Tolerance:+/-0.1V
- Voltage Detection Way: DC voltmeter
- Charging Type:12V storage battery
Package Includes:
1 x XH-M601 12V Battery Charging Control Board Intelligent Charger Power Control Panel Automatic Charging Power Module
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 234.82 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
XH-M601 12V Battery Charging Control Board Intelligent Charger Power Control Panel Automatic Charging Power Module
- Product Code: EC-7947
- Availability: Out Of Stock
-
Rs.235.00
- (Excluding 18% GST)
