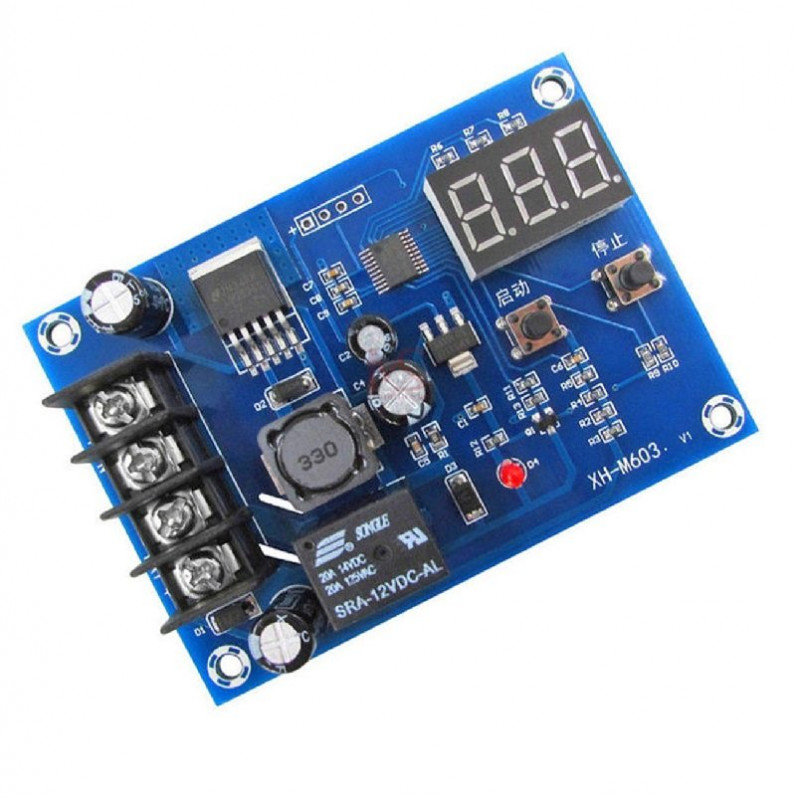

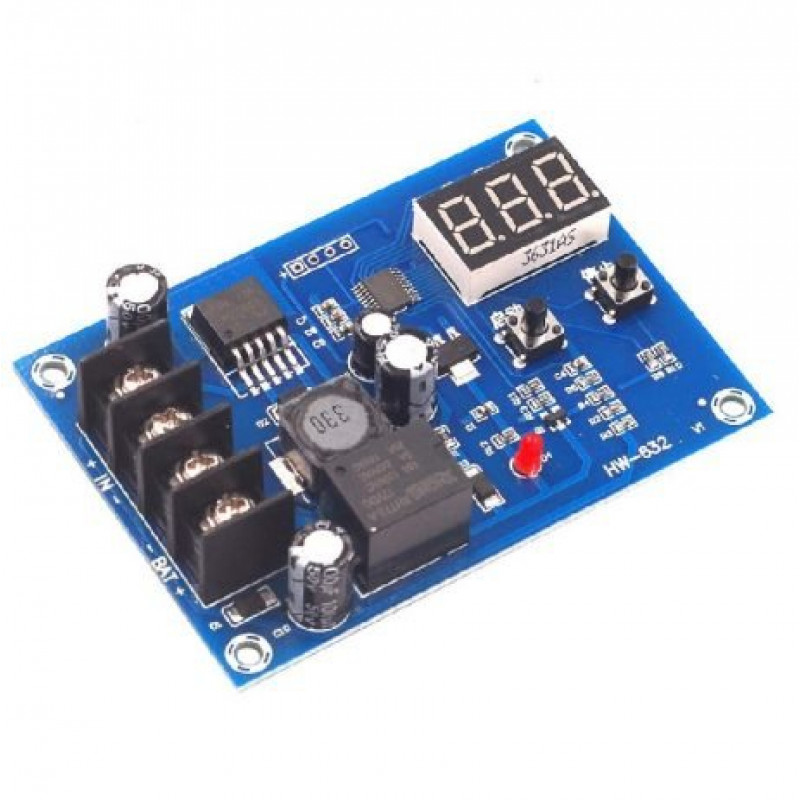

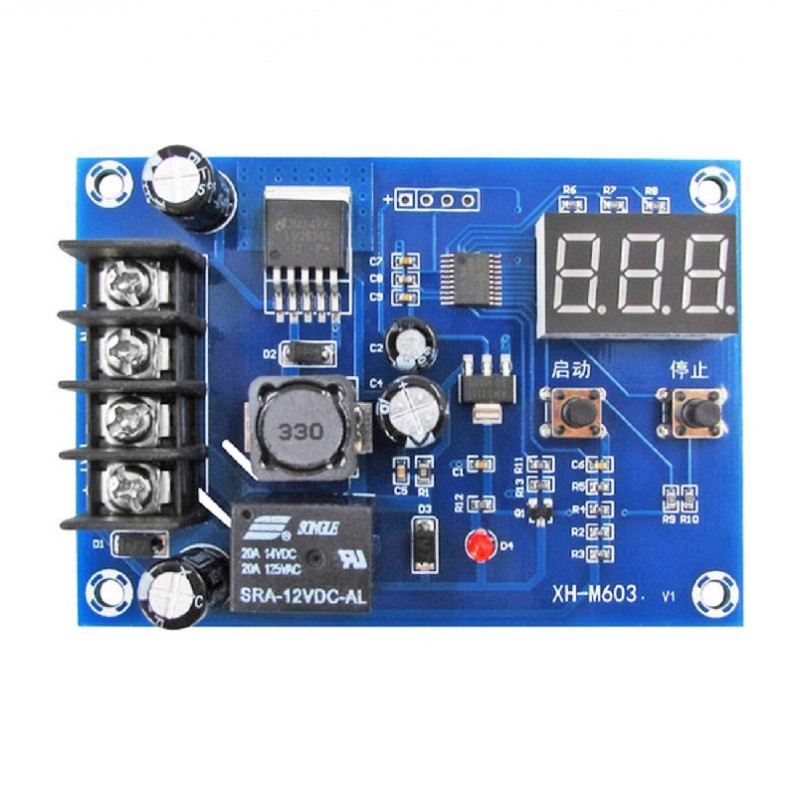

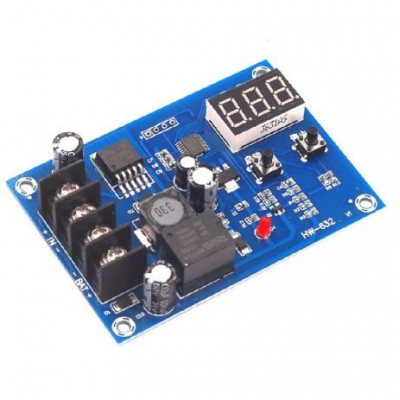

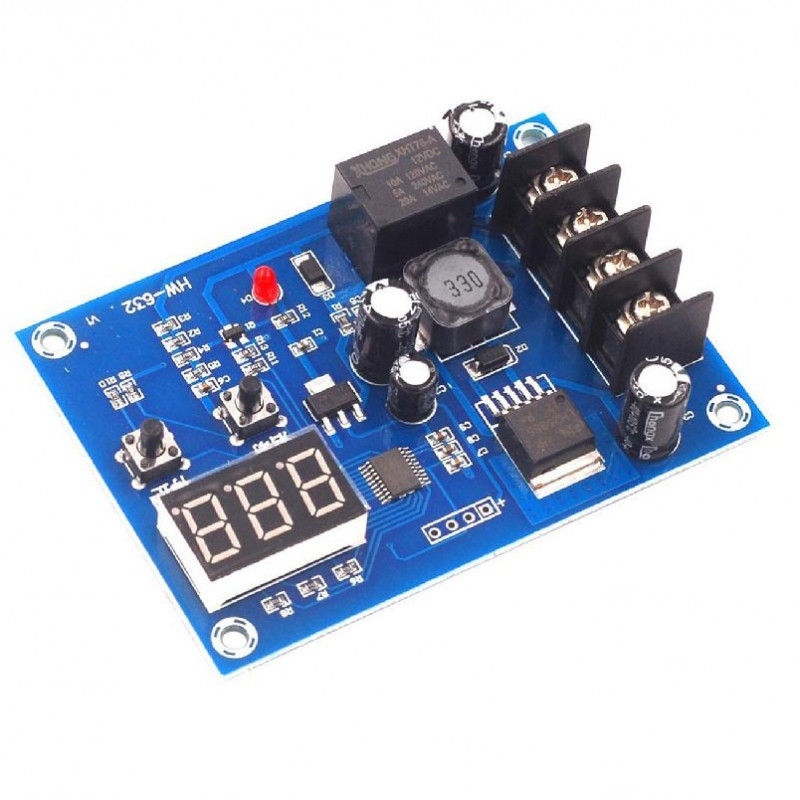

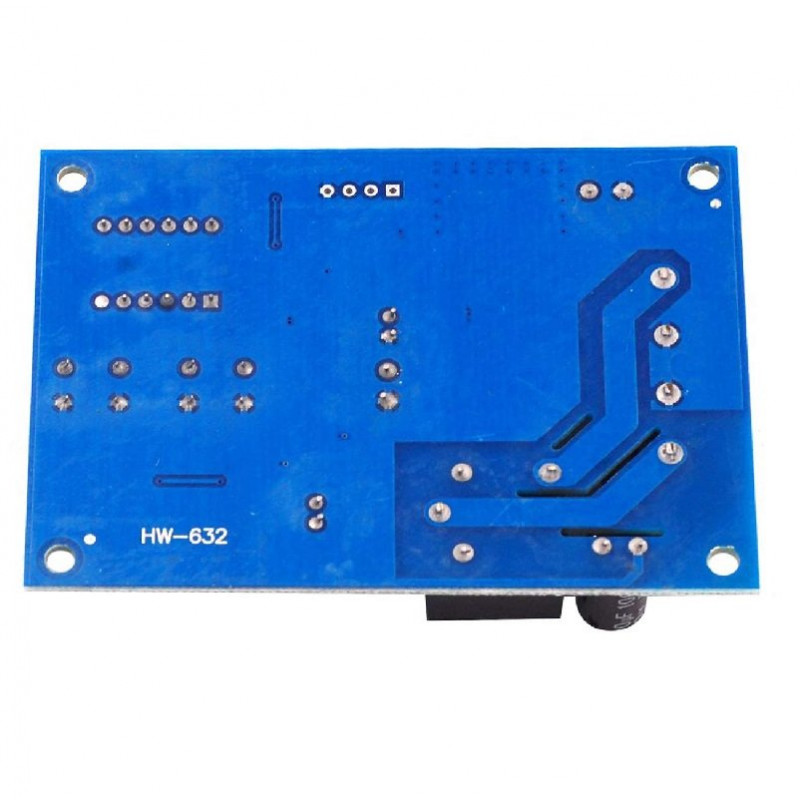

XH-M603 HW-632 Charging Control Module is a 12-24V Storage Lithium Battery Charger Control Switch Protection Board With LED Display. It is used in variety of applications.

Application Fields: 12-24V storage battery. It is applicable to solar cells, new energy batteries, Lead-acid batteries, nickel-cadmium batteries, nickel-metal hydrid batteries, lithium-ion batteries, polymer batteries, Car battery, electric car battery

Using method:

1. Set Starting Voltage: in normal display voltage state, press the button will display start charging voltage; long press for 3s the digital tube will flash: you can start or stop button to set starting up charge voltage value.

2. Set Stop Voltage: in normal display voltage state, press the button will display stopping charge voltage; long-press the button for 3s the digital tube will flash; you can start or stop button to set stopping charge voltage value.

3. Factory Reset: in power-on state press the start/stop button at the same time, a digital tube will display 888; that represents factory reset settings.

Note: This Product is available in two different variant(XH-M603 and Hw-632) with same working, we will ship it randomly.

Features:

1. Automatic control circuit connection
2. Automatic charging and power off
3. Real-time voltage monitor
4. Autosave setting
5. ST core chip
6. LM2596 switch voltage regulator

Package Includes:

1 x XH-M603 HW-632 Charging Control Module With LED Display

Specifications:

Model	XH-M603 / HW-632
Input Voltage	DC 10-30V
Display Precision	0.1V
Control Precision	0.1V
Output Type	direct output
Voltage Tolerance	±0.1V
Dimension(mm)	82 x 58 x 18
