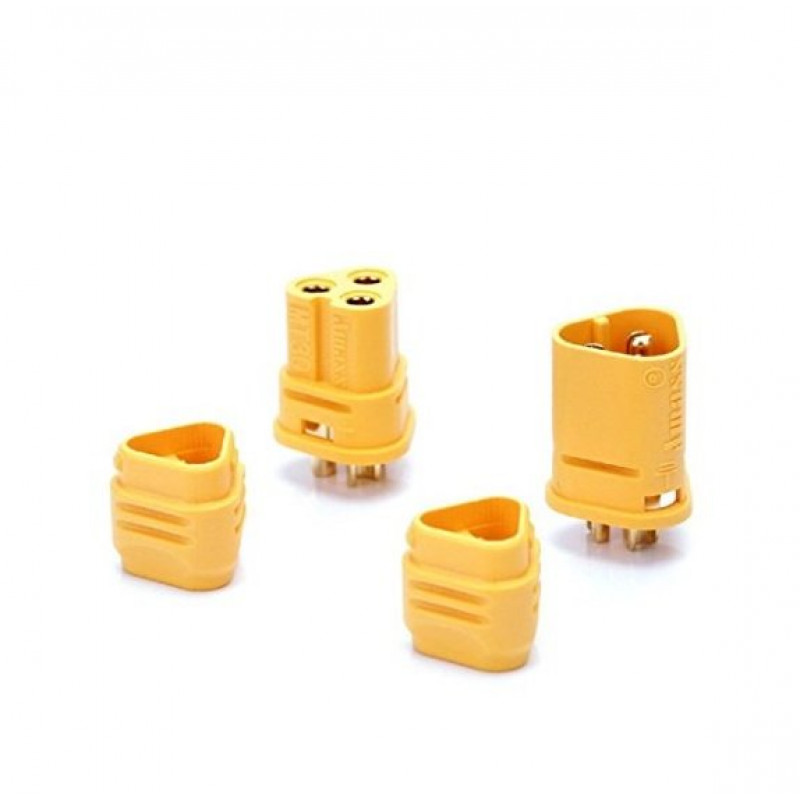

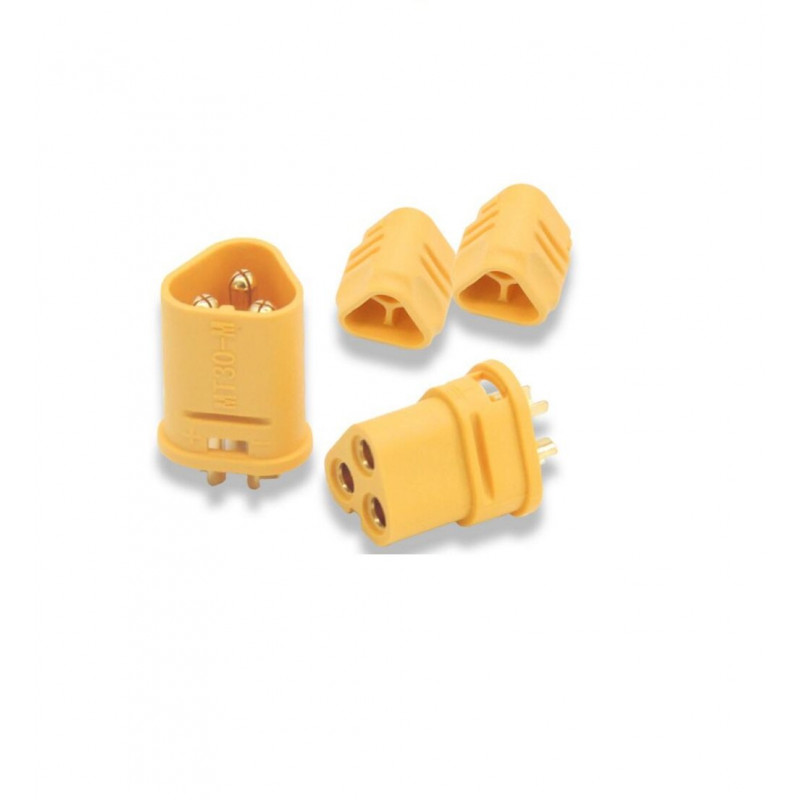

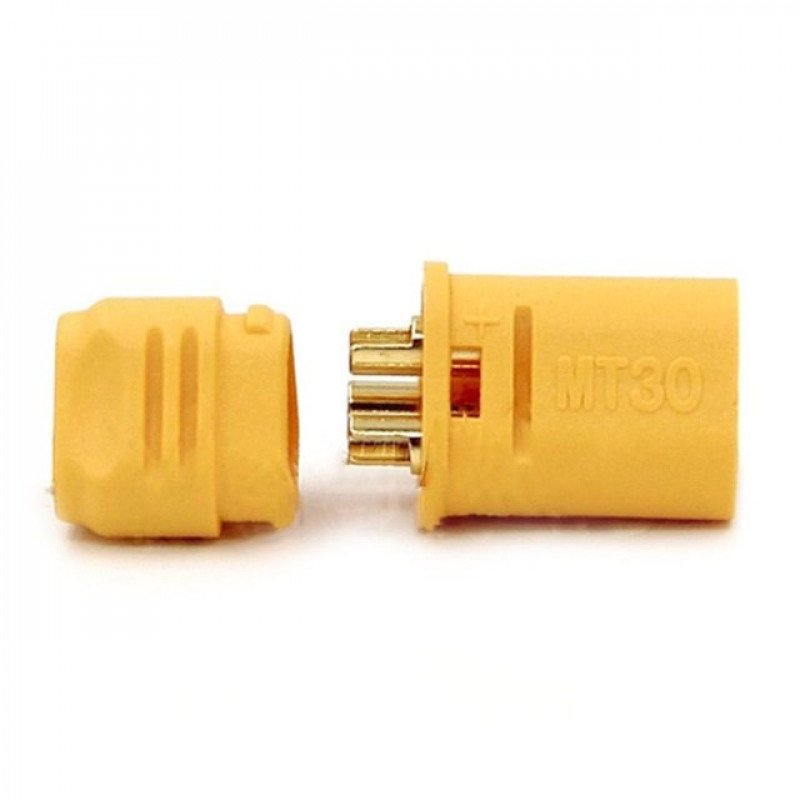

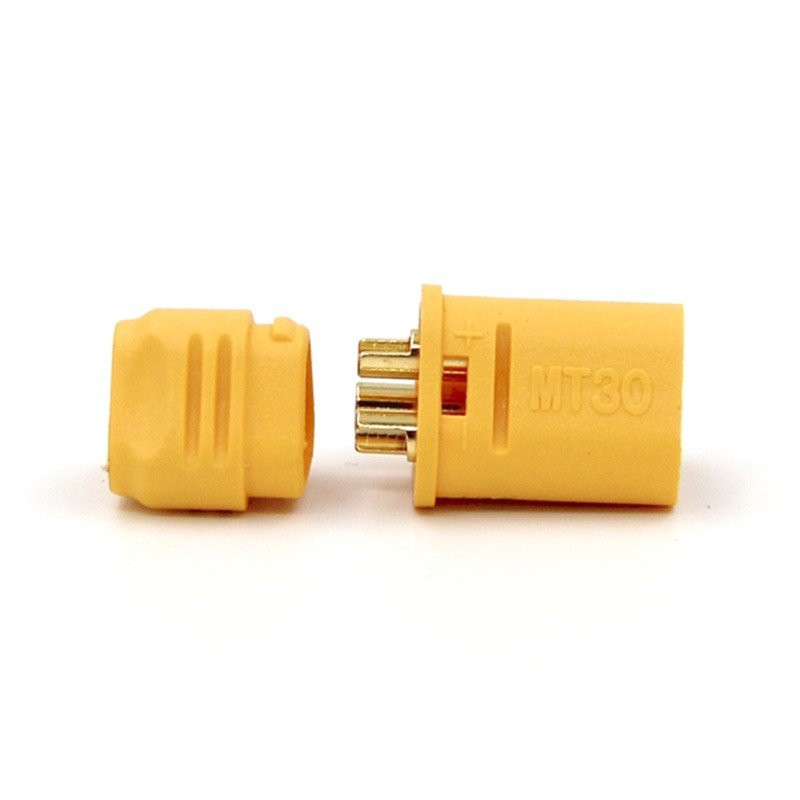

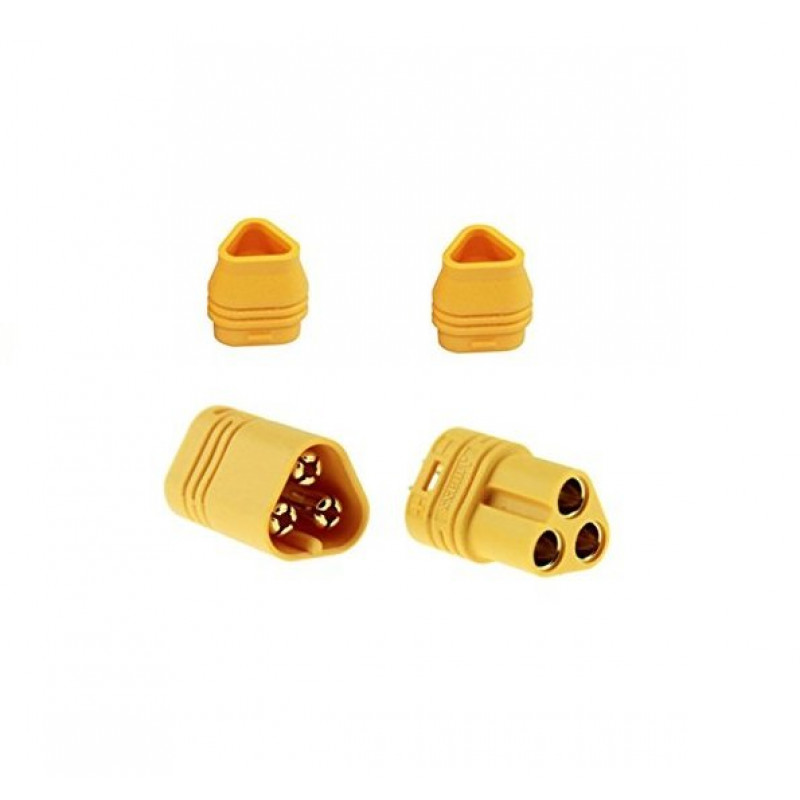

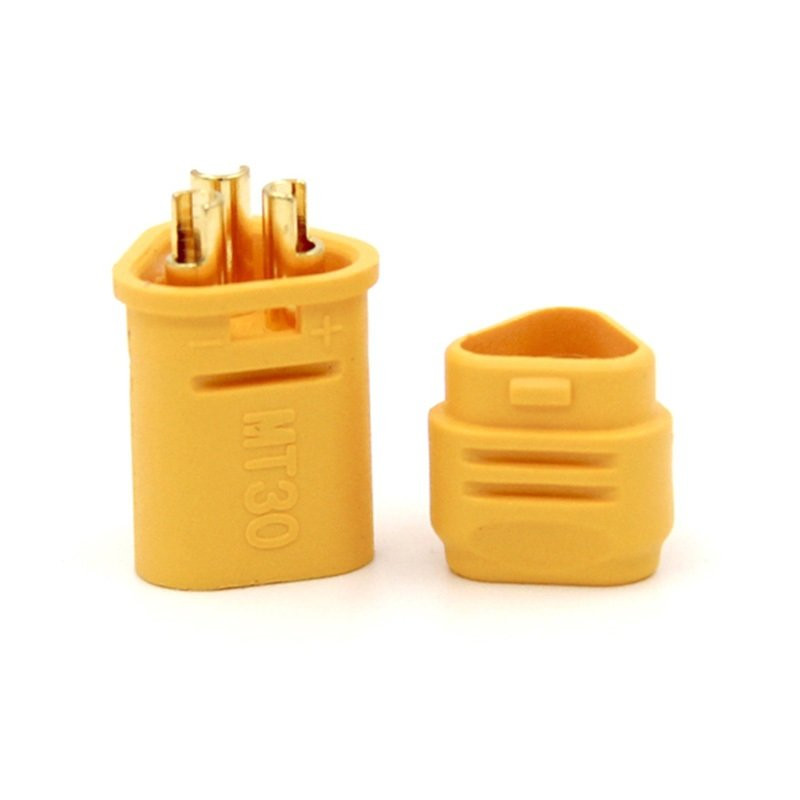

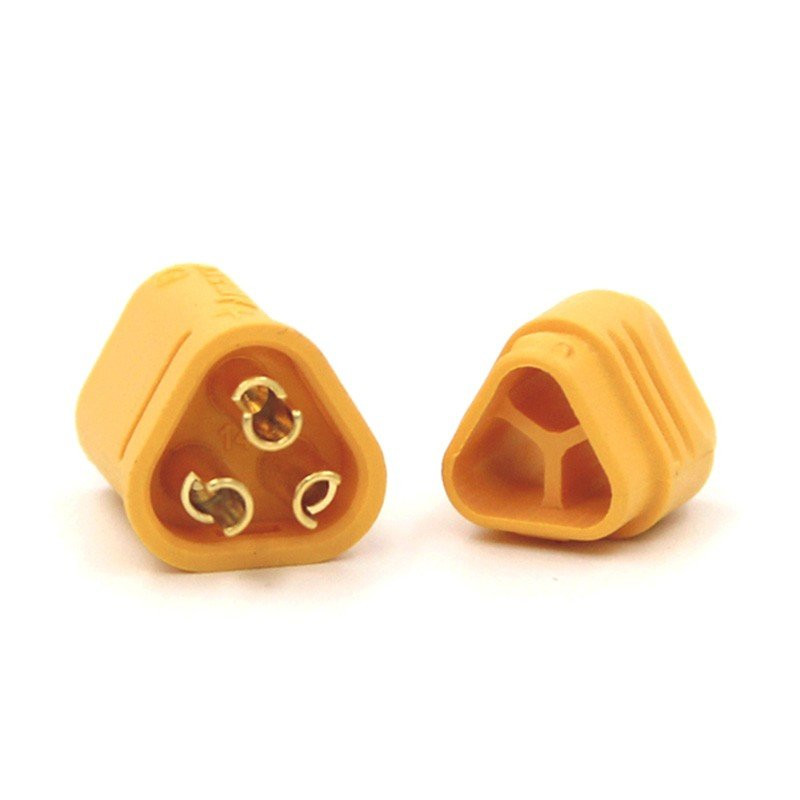

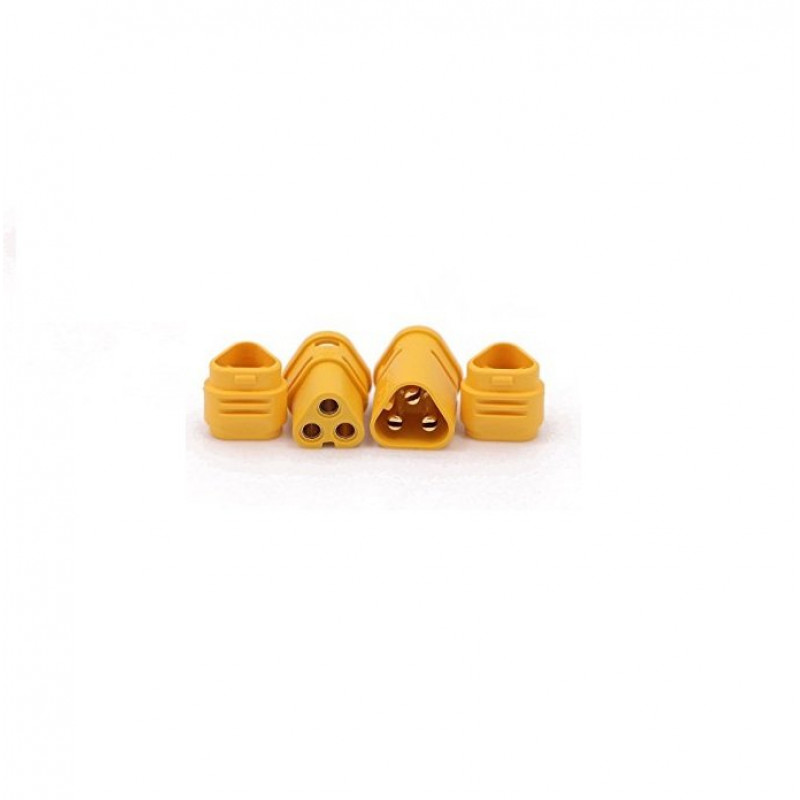

The MT30 3 Pole Motor Connector set is the perfect solution for securing your brushless motor / ESC connections for up to 16AWG wires. The connector set featured with gold plated connecting points, high-quality plastic with ideal design by Amass. Both male and female connectors are fitted with 2mm bullet points to solder the wires and supplied with a cable tidy attachment Cap to keep things nice and neat!
Note: Connector back Caps Lock is designed to be very tight, Once you locked it then it is little tough to reopen it.
Features:
- Brand: Amass
- Suitable for:16AWG wire (Max)
- Color: Yellow
- Gold Plated Connector
- High-Quality Material
Package Includes:
1 x MT30 3 Pole Motor/ESC Connector Set Male+Female Pair (1 Set)
Specifications :-
| Brand | Amass |
| Gender | Mail-Female Pair |
| Rated Operating Voltage (VDC) | 500 |
| Current Handling Capacity (A) | 60 |
| No. of Contact Points | 3 |
| Connector Type | MT30 |
| Contact Material | Brass |
| Contact Plating | Gold flash |
| Operating Temperature Range (°C) | -20 to 120 |
| Flammability Rating | UL94V-0 |
| Color | Yellow |
| Dimensions (mm) LxWxH | 20 x 10 x 10mm (assembled) |
| Weight (gm) | 2.96 per pcs. |
| Allowed Wire Size (AWG) | 18 ~ 16 |
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 173.46 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
MT30 3 Pole Motor-ESC Connector Set Male-Female Pair - 1 Set
- Product Code: EC-7297
- Availability: 51
-
Rs.111.00
- (Excluding 18% GST)
