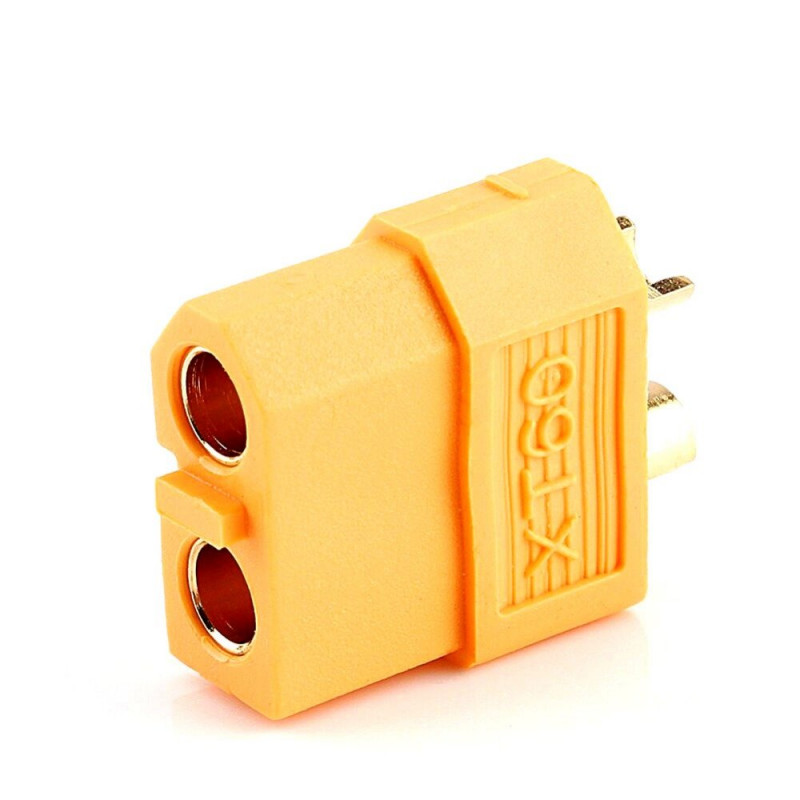

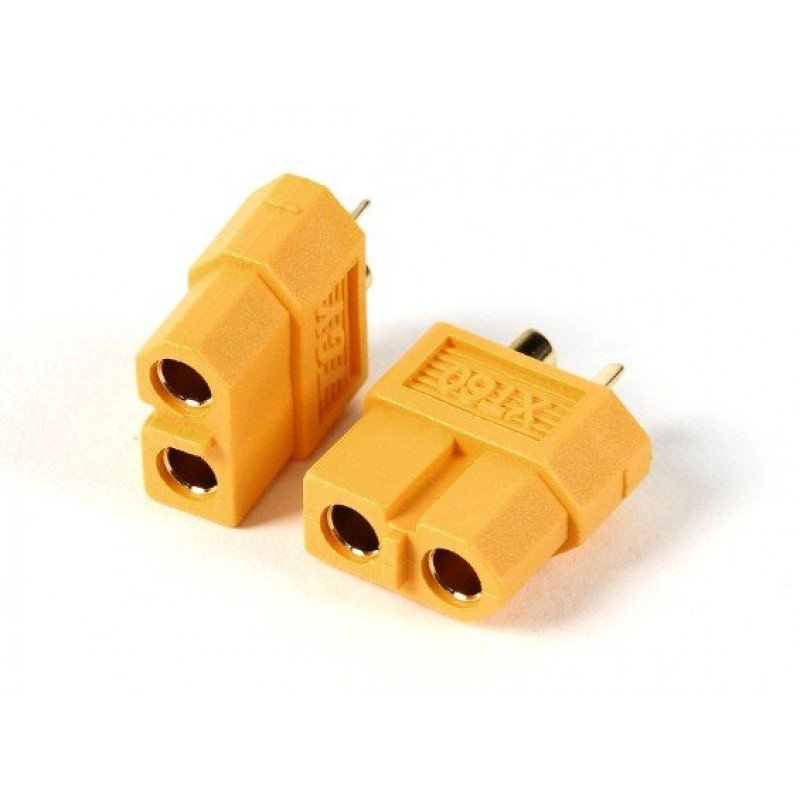

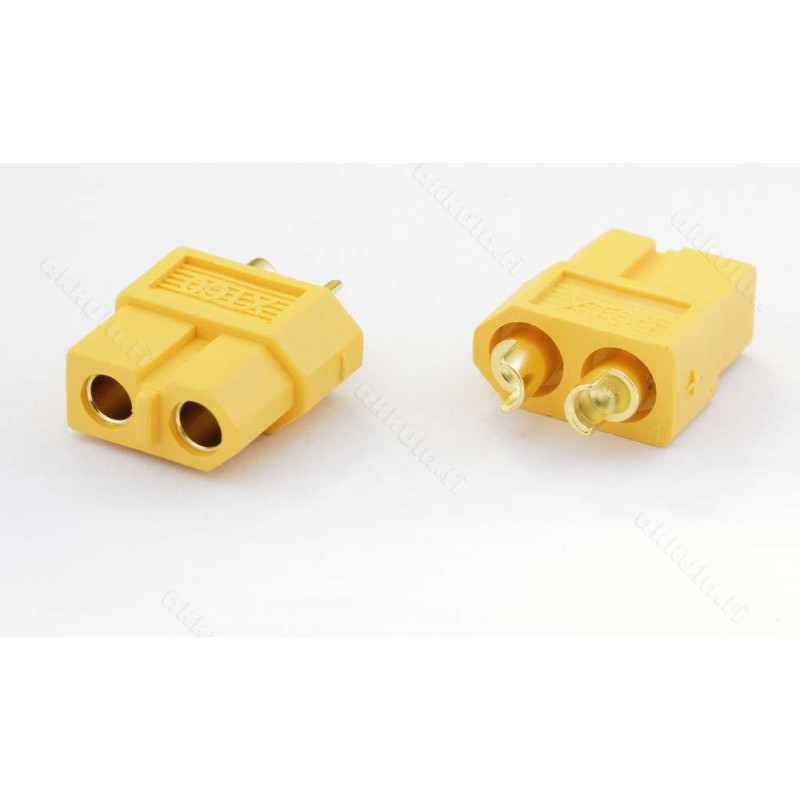

This is an Excellent W.S. Deans T-connector replacements. Made from high-temp Nylon and gold plated spring connectors, both included in the injection mold at the time when forming the connector. The XT60 ensures a solid high-amp connection, perfect for applications up to and beyond 65A constant. XT60, Designed by Amass to be more reliable and a better quality connection than Deans T-Connectors.
Features:
- Mechanical mounting for cable
- Electrical mounting soldered
- Contact plating Gold flash
- Spatial Orientation Straight
- Compatible for Wire size up to 12AWG
Package Includes:
1 x XT60 Female Connectors - 2pcs
Specifications:
| Manufacturer | AMASS |
| Connector Type | XT60H |
| Gender | Female |
| No. of Pins | 2 |
| Flammability Rating | UL94V-0 |
| Contact Material | Brass |
| Body Material | polymide |
| Color | Yellow |
| Rated Current(A) | 60 |
| Rated Operating Voltage (VDC) | 500 |
| Operating Temperature Range (°C) | -20 to 120 |
| Weight | 2.4g (each) |
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 88.5 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
XT60 Female Connectors - 2 Pieces Pack - Genuine
- Product Code: EC-7322
- Availability: 495
-
Rs.75.00
- (Excluding 18% GST)
