The best battery connectors on the market just got better with the development of the XT60H.
Like the original XT60H, this connector is made from high-temp nylon with gold plated connectors so the XT60H continues to provide an excellent high-amp connection for applications up to 65A. The change in design has made it shorter and lighter and far more user-friendly for connection and disconnection with an improved integrated grip area as well as tight locking Housing with different color provide the protection to the soldered points and make this connector little fancy and that's why H letter is added in XT60.
The XT60H is completely compatible with original XT60 connectors so you can use them straight away.
Features:
- Mechanical mounting for cable
- Electrical mounting soldered
- Contact plating Gold flash
- Spatial Orientation Straight
- Contact Material: Brass
- Compatible for Wire size up to 12AWG
Package Includes:
1 x XT60H Connector with Housing- Female
Specifications:
| Brand | Amass |
| Gender | Female |
| Rated Operating Voltage (VDC) | 500 |
| Current Handling Capacity (A) | 60 |
| No. of Contact Points | 2 |
| Connector Type | XT60H |
| Contact Material | Brass |
| Contact Plating | Gold flash |
| Metal Connector Size (mm) | 4.5 |
| Color | Yellow-Gray |
| Weight (gm) | 8 |
| Operating Temperature Range (°C) | -20 to 120 |
| Flammability Rating | UL94V-0 |
| Allowed Wire Size (AWG) | 14 ~ 12 |
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 92.04 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

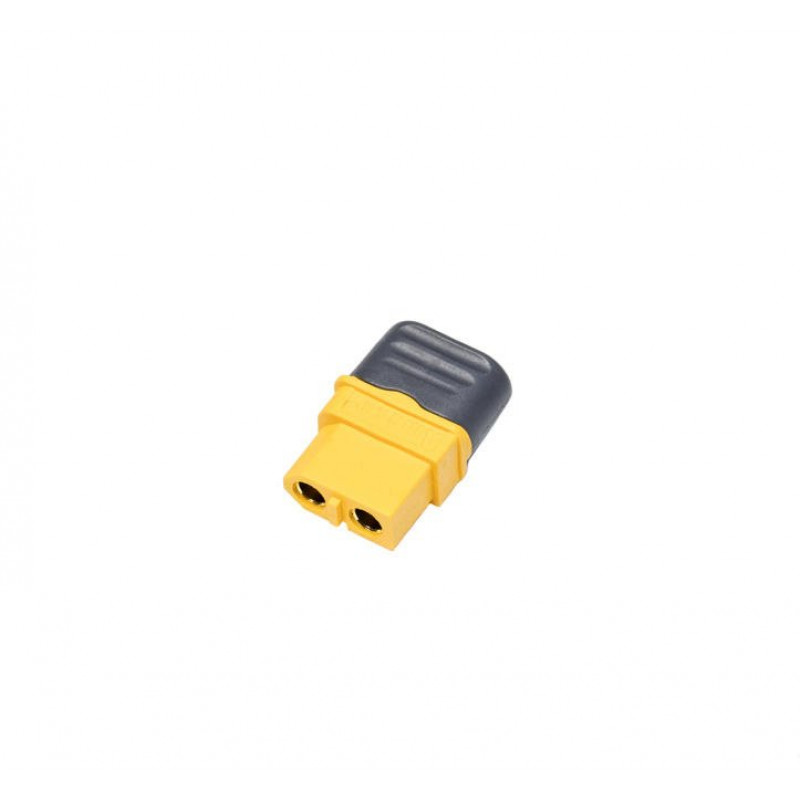

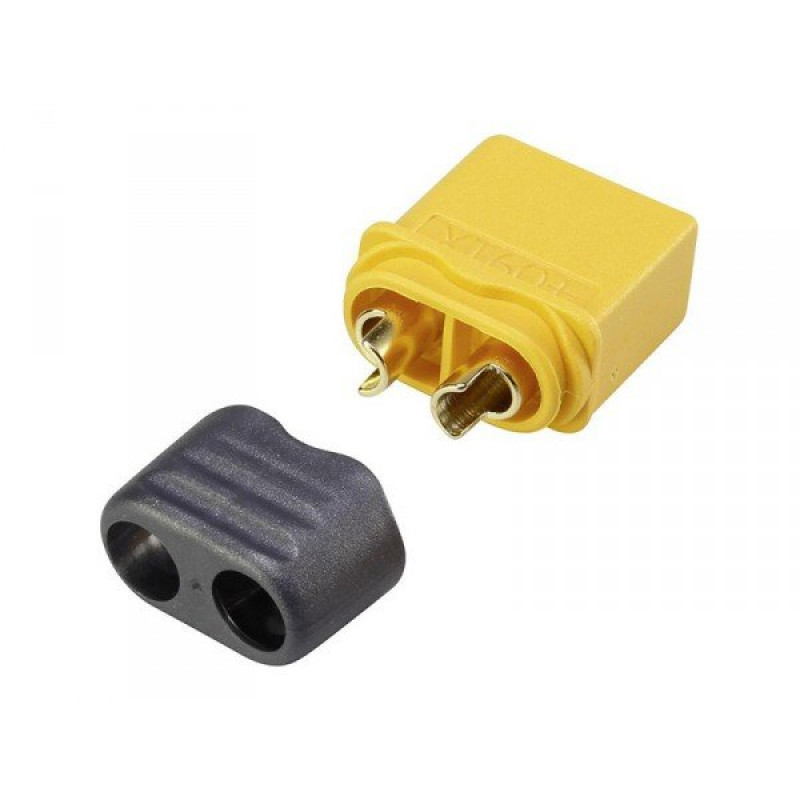

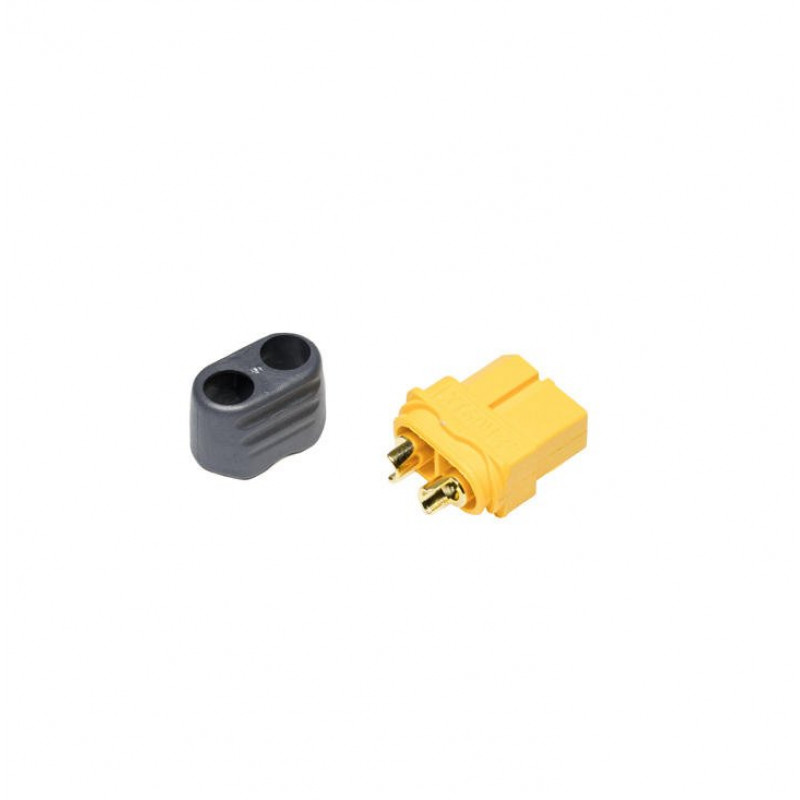

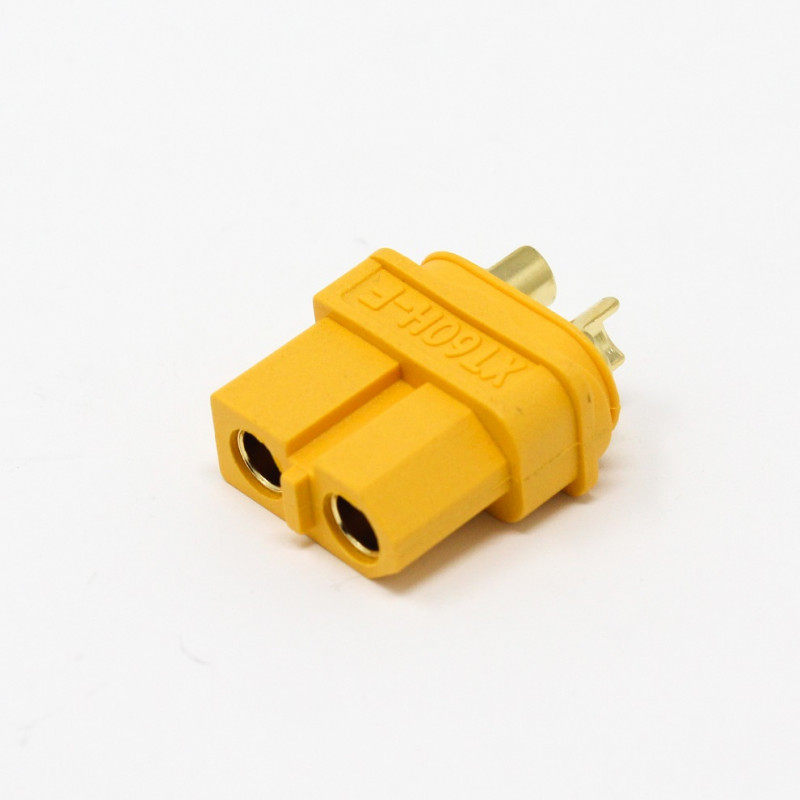

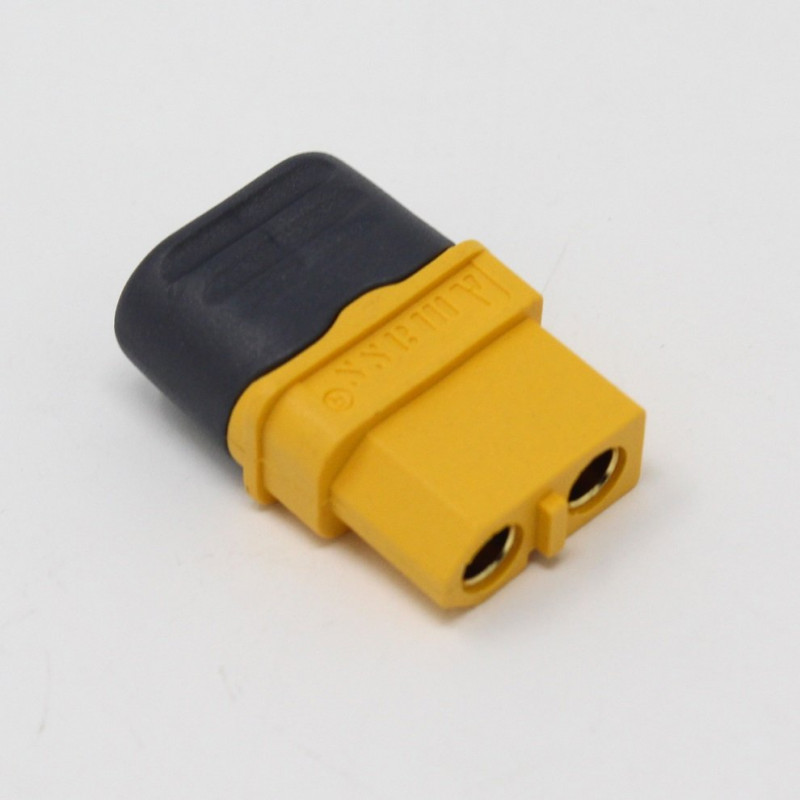

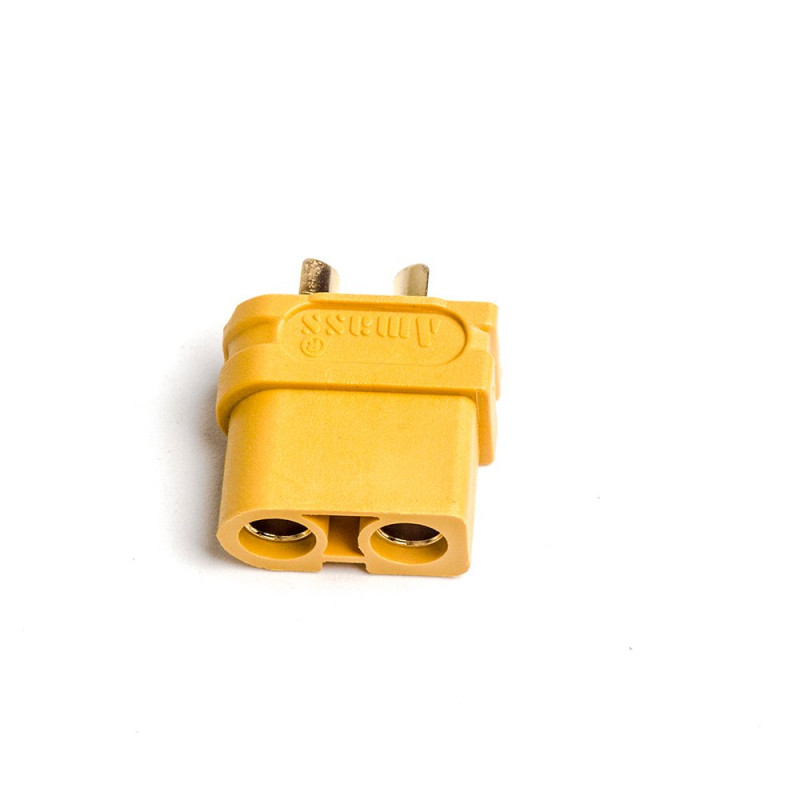

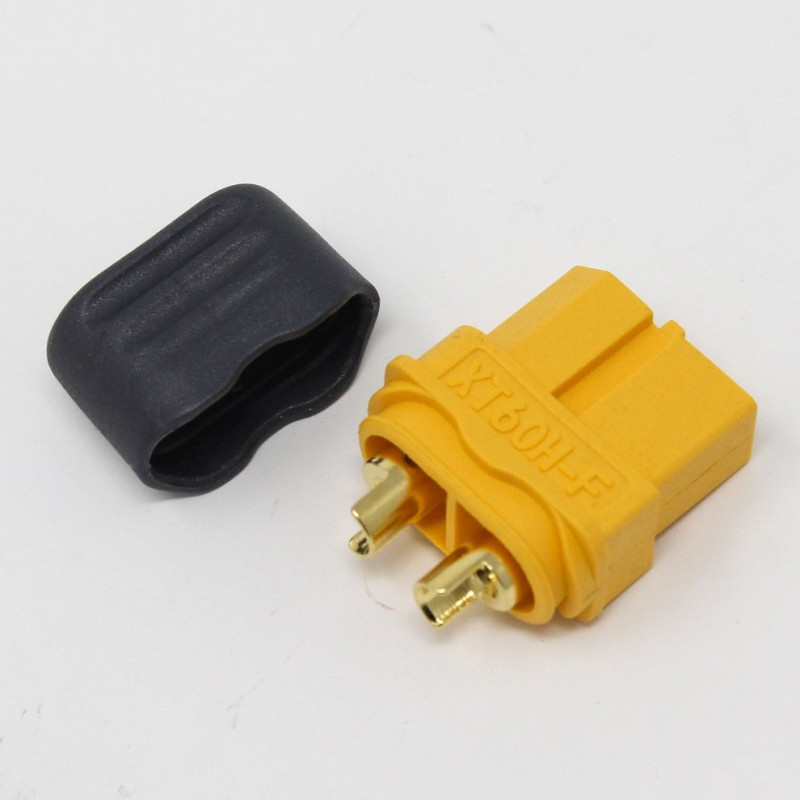

XT60H Connector with Housing - Female
- Product Code: EC-7308
- Availability: 287
-
Rs.39.00
- (Excluding 18% GST)
