Battery protection board, as the name suggests battery protection board is mainly rechargeable (Refers to the lithium battery) and protects the integrated circuit board. As the lithium battery, its material determines itself can not be overcharge, over-discharge, overcurrent, short circuit, and ultra-high temperature charge and discharge, so lithium battery lithium components will always follow A protective plate with sampling resistor, and a current fuse.

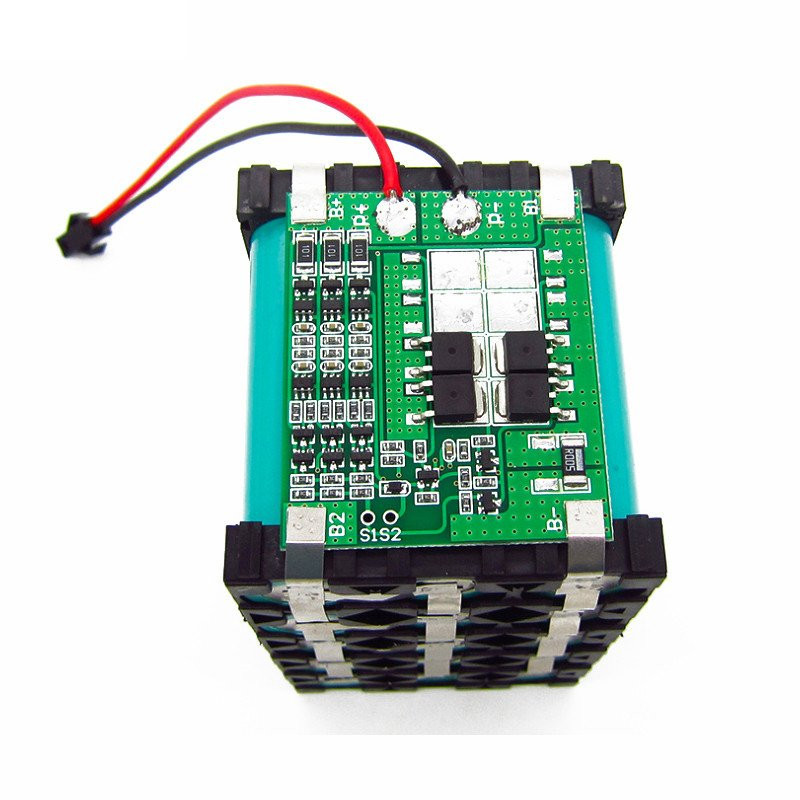

Providing all above features this 3S BMS board can combine 3 x 18650 battery to form a battery pack to provide up to 15V DC output at 15A current which can be used for heavy applications.


Features:

  1. Overcharging and Over Discharging Protection
  2. Short circuit protection: Yes
  3. Applicable assembly: Nominal 3.7V Batteries / 3 strings.

Package Includes:

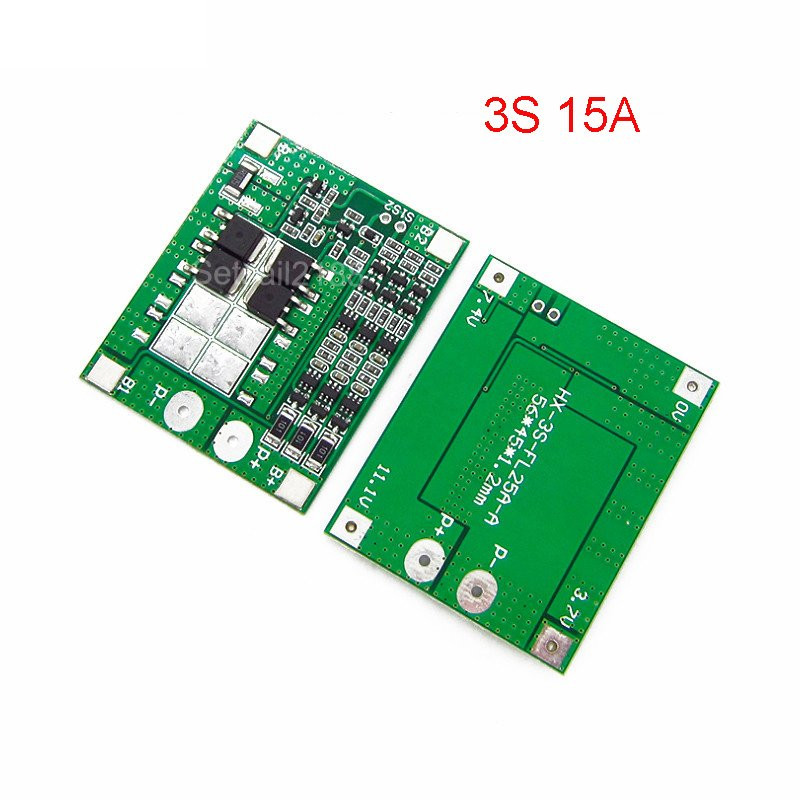

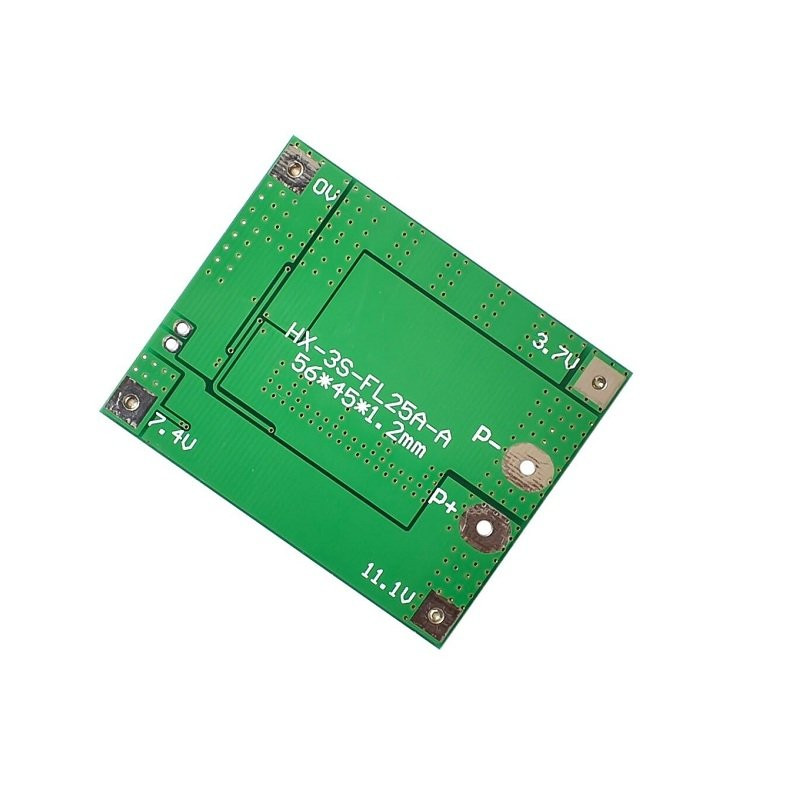

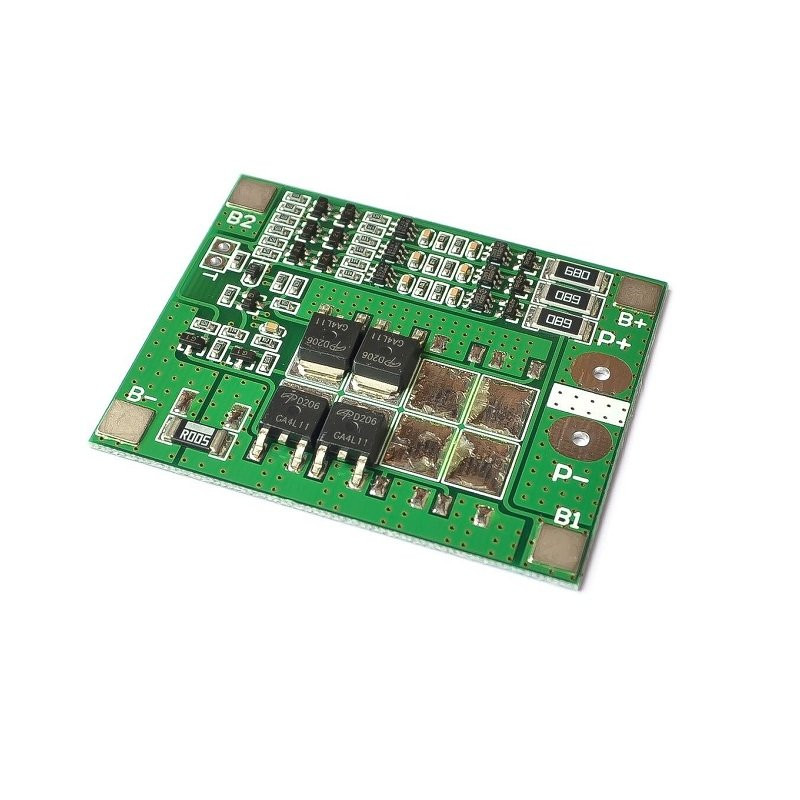

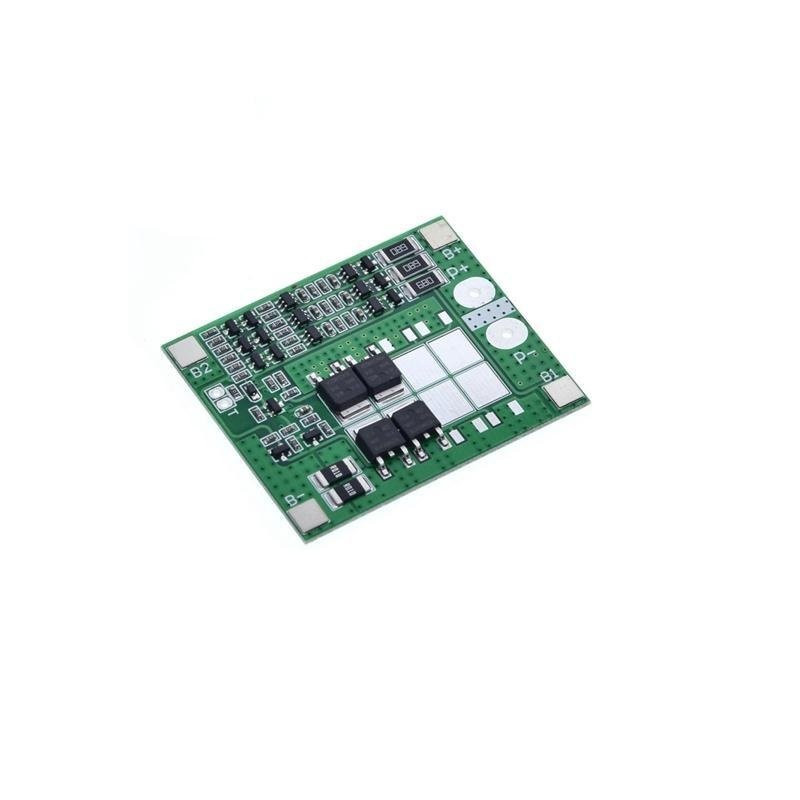

1 x 3S 15A 18650 Lithium Battery Protection Board



Specifications:

Model

HX-3S-FL25A-A

Charging voltage range

12V

Over-discharge recovery voltage

2.5v±0.05v,

Over-Discharge-Delay-Time

144ms

M

Maximum Working Current

10A

Maximum Peak current

20A

Static current

Less than 8uA

Resistance

Less than 4mΩ

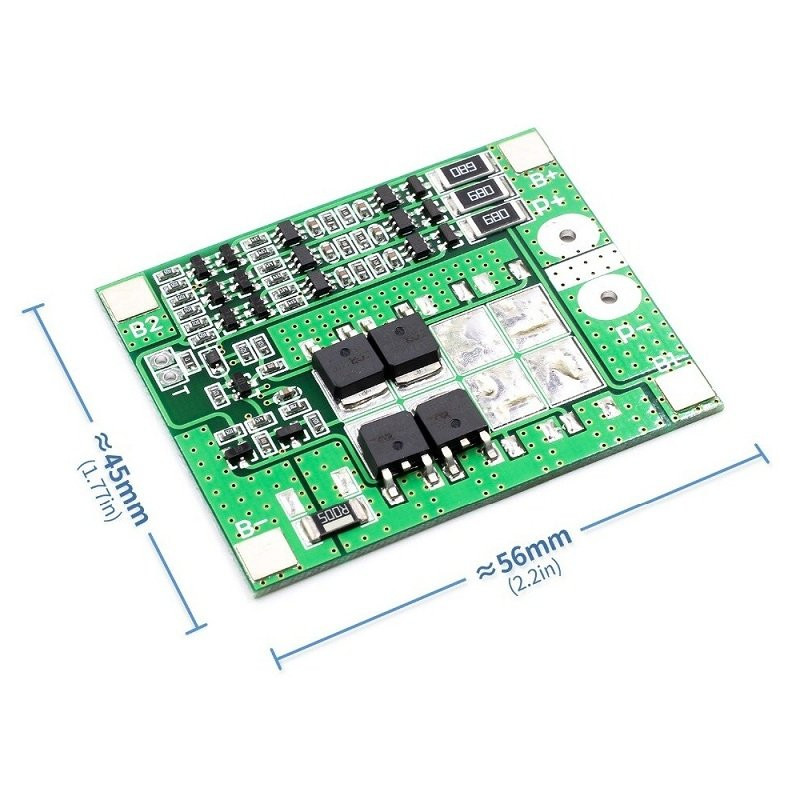

Length (mm)

56

Width (mm)

45

Height (mm)

2

Weight (gm)

8


Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 206.5 (Inclusive of all Taxes)
