TP5100 4.2v 8.4v Single Double Lithium Battery Charge Management Lion Battery Compatible 2A Charging Board is a double switch buck 8.4V, single cell 4. 2V lithium battery charge management chip. Its ultra-compact QFN16 package and simple external circuit, making TP5100 ideal for portable equipment so large current charging management applications. Meanwhile, TP5100 built-in input overcurrent, under-voltage protection, over-temperature protection, short circuit protection, battery temperature monitoring, reverse battery protection.
TP5100 has 5V-15V wide input voltage, dual battery trickle charge into pre-charge, constant current, constant voltage three-phases, pre-charge current trickle charge current through an external resistor adjustment, the maximum charge current up to 2A. TP5100 with a frequency of 400kHz switching mode makes it possible to use a smaller outer Suo device and the large current charging still maintains a smaller amount of heat.
TP5100 built-in power PMOSFET, anti-intrusion circuit, so no anti-intrusion protection and another external Schottky diode.
Features:
- Input voltage: 5-15V DC power supply.
- Charge status: full and unloaded blue lights, charging red.
- Double 8.4v / 4.2v lithium rechargeable single .
- Programmable charge current. 0. 1A-2A .
- Programmable steady pre-charge current 10% -100%.
- Wide operating voltage, maximum reach I8V.
- Red and green LED charge status indicator.
- Chip temperature protection, overcurrent protection, under voltage protection.
- Battery temperature protection, reverse battery shutdown, short circuit protection.
- Switching frequency 400Khz, usable inductance 20uH and more.
- PWR_ON Power battery for switching control.
Package Includes:
1 x TP5100 4.2v 8.4v Single Double Lithium Battery Charging Board.
Specifications:
| Model | TP5100 |
| Input Supply voltage (V) | 5 ~ 15 |
| Programmable charge current | 0.1 ~ 2 A |

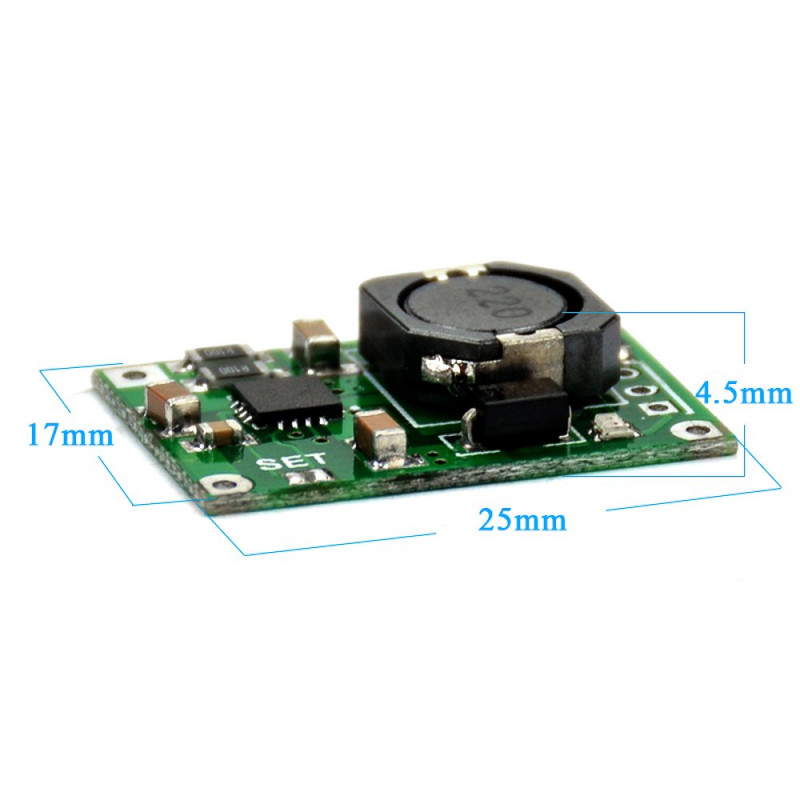

| Length (mm) | 26 |
| Width (mm) | 18 |
| Height (mm) | 5 |
| Weight (gm) | 3 |
| Shipment Weight | 0.005 kg |
| Shipment Dimensions | 10 6 5 cm |
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 71.98 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
TP5100 4.2v and 8.4v Dual One/Two Battery Protection Board
- Product Code: EC-7211
- Availability: 436
-
Rs.54.00
- (Excluding 18% GST)
