This is a Mitsubishi ER17330V 3.6V Lithium battery maintain Programmable Controller PLC Memory backup from PLC Automation equipment such as CNC Machine-tools or any industrial equipment with Mitsubishi PLC batteries using this type of 3.6V battery.

Application range: Real-time clock, PLC backup memory power supply, automotive electronics, various instruments, meters, equipment, and so on.

LITHIUM BATTERY FOR PLC

• This battery is used for data back-up in the event of a power failure as mentioned above, and continuous operation of a real-time clock.
• Even if using the EEPROM or EPROM cassette the battery is necessary to hold the internal memory in case of a power outage.
• Never use this battery together with different type/model code batteries together.
• The voltage of this battery is not compatible with that of manganese or alkaline manganese battery.
• Since the positive terminal is glass-sealed, avoid applying any shock or excessive force to this portion

WARNING:

• To avoid fire, explosion, and severe burn hazard, do not recharge, disassemble, heat above 100°C(212°F), incinerate, or expose contents to water
• Never short the positive and negative terminals of the battery

• Soldering, when made for use with this battery, must satisfy the following conditions:

           - Solder temperature at the end of the tab or pin terminal: Below 270°C(518°F)

          - Soldering time: 5 Seconds or less.

Specifications :

• Model number: ER17330V
• Voltage : 3.6V
• Capacity : 1700Mah
• Rechargeable : No
• Battery Shape : Cylinder
• Weight : 15gm
• Diameter : 20mm

Package includes :

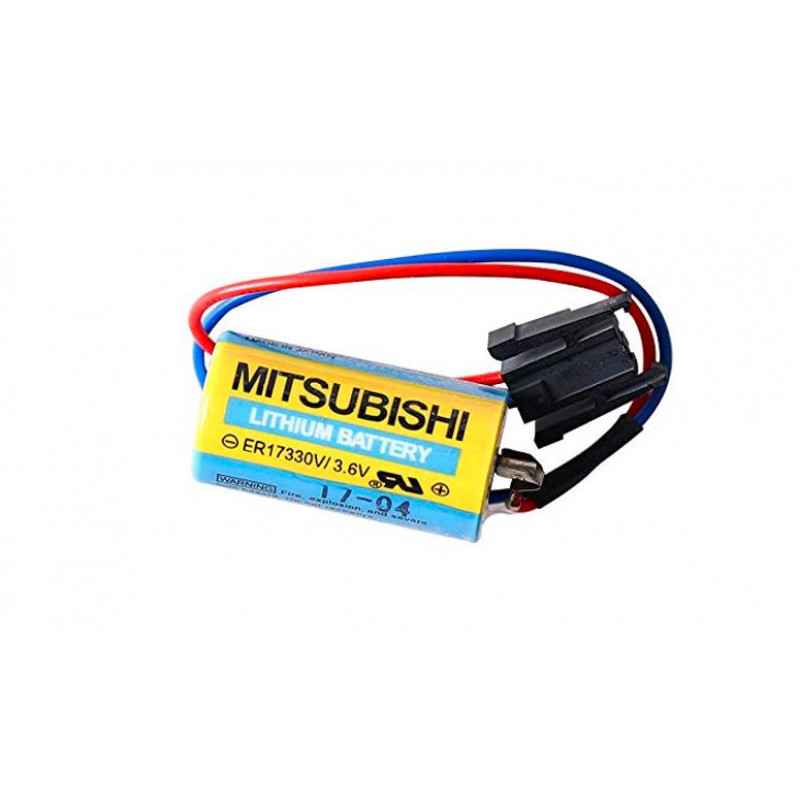

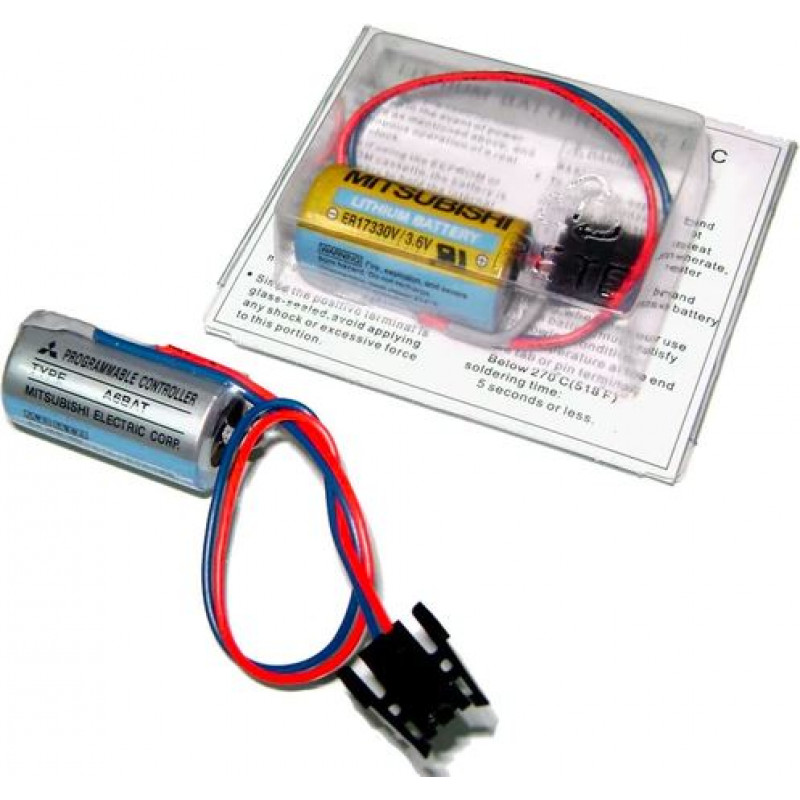

1 X MITSUBISHI ER17330V 3.6V 1700mAH PLC Non-Rechargeable Lithium Battery with Plug
