Features:
- Universal 85-264V AC and wide 100 370V DC Input
- Operating ambient temperature range -40 to +70
- High I/O isolation test voltage up to 4000VAC
- Regulated output, Low output ripple & noise
- Output short circuit, over-current, over-voltage protection
- High efficiency, high reliability
- Plastic case meets UL94V-0 flammability
- EMI performance meets CISPR32 / EN55032 CLASS B
- IEC62368, UL62368, EN62368 approval
Specifications :-
AC-DC CONVERTER
I/p Voltage range: Universal 85-264VAC and wide 100-370VDC Input
O/p voltage:12V
O/p current:250mA
wattage:3W
Isolation:4000VAC
Package: DIP
Package Includes:

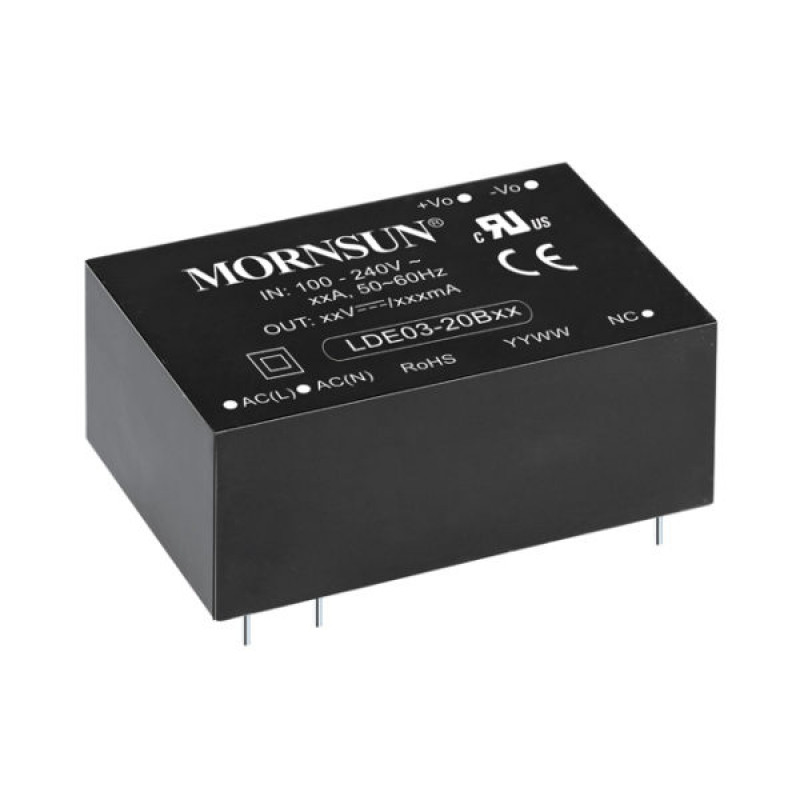

1 x LDE03-20B12 Mornsun 85-264V AC to 12V DC 3W AC-DC Converter Power Supply Module - DIP Package
Download DATASHEET :
Download
| |
| Brand/Manufacturer |
Mornsun |
| Country Of Origin |
China |
| Packer / Importer Address |
Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP |
Rs. 813.02 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
