Key Specifications:-
  • Output Voltage         24V
  • Type                 LED & Waterproof
  • Approx. Wattage 12W
  • Features                 Standard
  • Series                 APV (Economical)
  • Mechanical Form Plastic
  • Warranty                 2 Years Warranty
  • IP Level                 IP42
  • Input Voltage         100-240V auto-select


  • Universal AC input / Full range
  • Fully isolated plastic case
  • Protections: Short circuit / Overload / Over voltage
  • Constant voltage design (C.V. mode)
  • IP42 design
  • Class 2 power unit / Pass LPS
  • Isolation class II, no F.G.
  • Cooling by free air convection
  • 100% full load burn-in test
  • Low cost, high reliability
  • Suitable for LED lighting and moving sign applications
  • 2 years warranty


AC input voltage range90~264VAC ; 127~370VDC
AC inrush currentCold start, 70A at 230VAC
Overload Range>105% rated output current
Protection TypeHiccup up mode, auto-recovery
Over voltage protection110%~145% rated output voltage
Withstand voltageI/P-O/P: 3kVAC
Working temperature-30~+70OC (refer to output derating curve)
Vibration10~500Hz, 2G 10 minutes /1 cycle, period for 60 minutes each along X, Y, Z axes
Safety standardsUL8750 approved;Design refer to IEC61347-1, IEC61347-2-13
EMC standardsEN55015, EN61000-3-2 class A, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547
Connection InputUL rated, 18AWGx2C (15cm)
Connection OutputUL rated, 20AWGx2C (15cm)
Dimension (LxWxH)(mm)77x 40x 29

Related Documents:-

 APV-12 Datasheet

 APV-12-24 Test Report

 CE Certificate (APV-12)

 UL Certificate (APV-12)

 CB Certificate (APV-12)

Write a review
Please login or register to review

* Product Images are shown for illustrative purposes only and may differ from actual product.

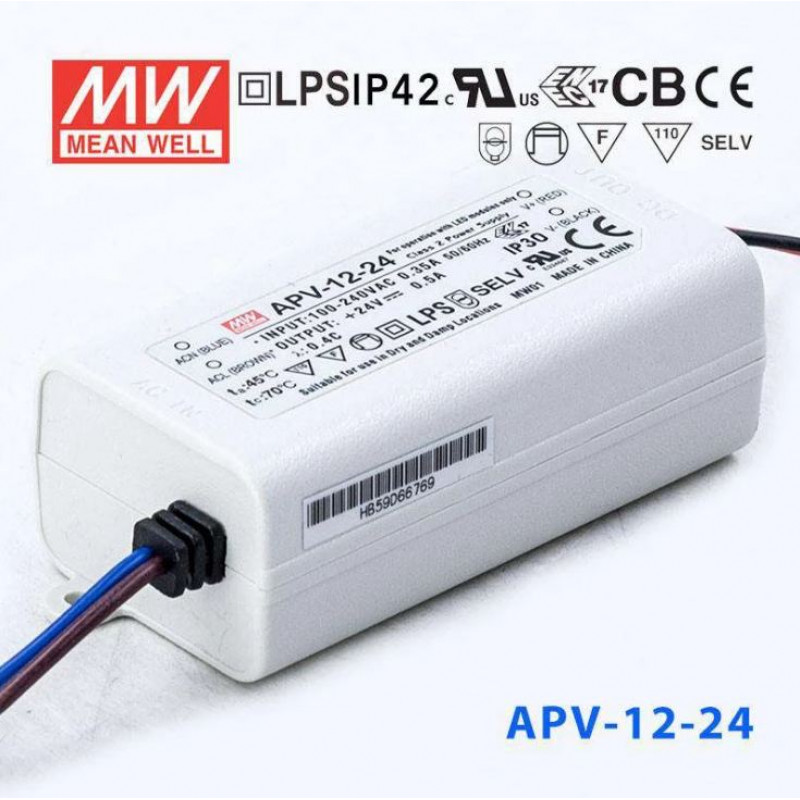

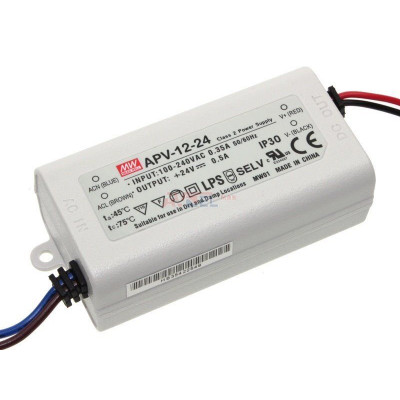

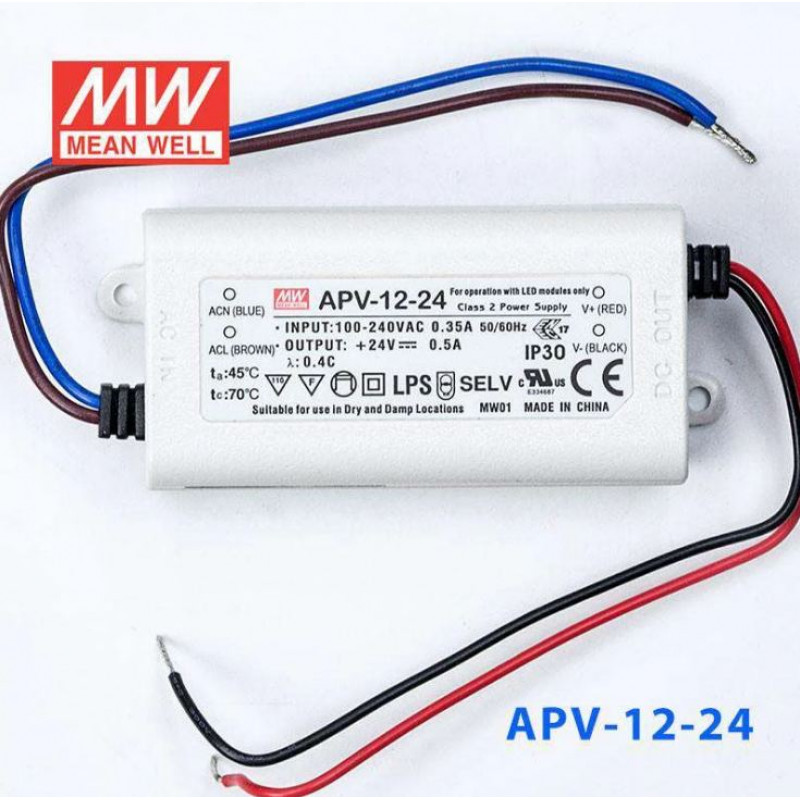

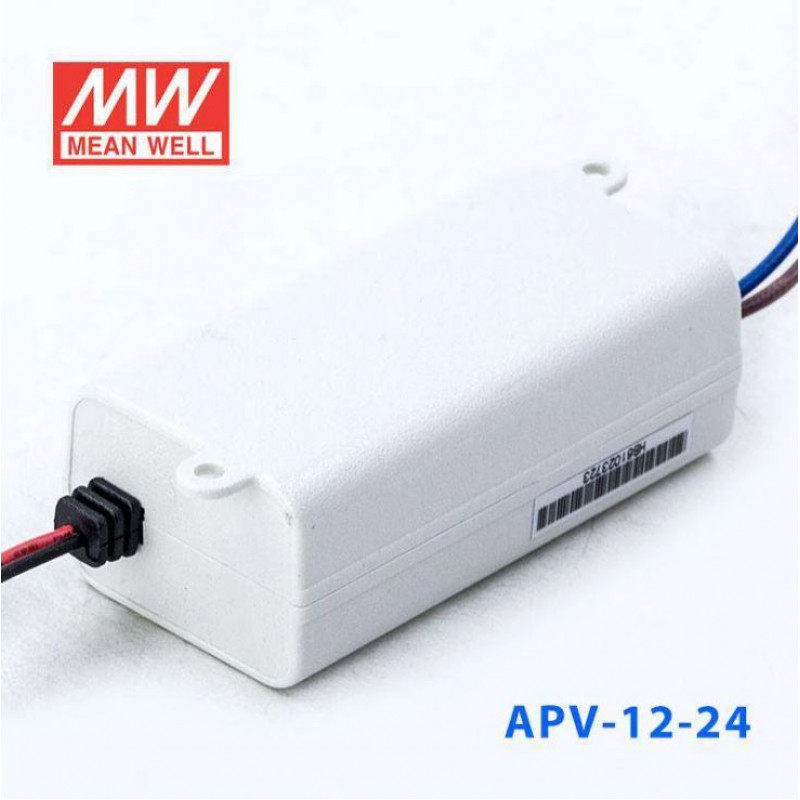

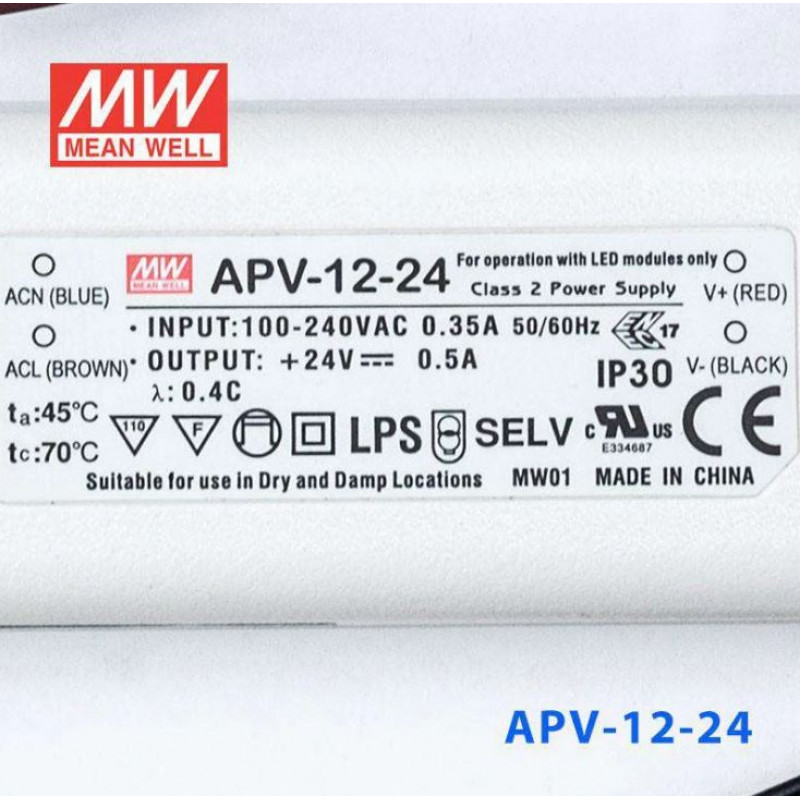

APV-12-24 Mean Well SMPS - 24V 0.5A 12W LED Power Supply

  • Product Code: EC-3504
  • Availability: 375
