Key Specifications:-

  • Output Voltage         24V
  • Type                 LED & Waterproof
  • Approx. Wattage 150W
  • Features                 Standard,Green Power
  • Series                 LPV (Plastic IP67)
  • Mechanical Form Plastic
  • Warranty                 2 Years Warranty
  • IP Level                 IP67
  • Input Voltage         100-240V auto-select


 Features:-

  • 180~305VAC input only
  • Fully encapsulated with IP67 level
  • Protections: Short circuit / Overload / Over voltage / Over temperature
  • Constant voltage design (C.V. mode)
  • Class 2 power unit
  • Isolation class II, no F.G.
  • Withstand 300VAC surge input for 5 seconds
  • Cooling by free air convection
  • 100% full load burn-in test
  • Low cost, high reliability
  • Suitable for LED-based decorative/architectural lighting, LED stage and theater lighting, and LED electronic displays
  • 2 years warranty


Specifications:-

AC input voltage range85~264VAC; 120~370VDC
AC inrush current (max.)Cold start, 50A at 230VAC
DC adjustment range±10% by potentiometer
Overload protection Range110%~150%
Overload protection TypeHiccup mode, auto-recovery
Over voltage protection Range115%~135% rated output voltage
Over voltage protection TypeShut down o/p voltage, re-power on to recover
Withstand voltage3.75kVAC, I/P-FG: 2kVAC, O/P-FG: 1.25kVAC, 1 minute
Working temperature-30~+70°C (refer to output derating curve)
Safety standardsUL60950-1, IEC/EN60950-1, IEC/EN61558-1, EN61558-2-16, IEC/EN60335-1, CCC GB4943 approved
EMC standardsEN55022 class B, EN55014, EN61000-3-2, 3, EN61000-4,2,3,4,5,6,8,11, GB9254
Connection7P/9.5mm pitch terminal block
Dimension (LxWxH)129x 97x 30


Related Documents:-
 LPV-150 Datasheet
 LPV-150-24 Test Report
 CE Certificate (LPV-150)
 UL Certificate (LPV-150)
 CB Certificate (LPV-150)
 EMC Certificate (LPV-150)
Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 2339.68 (Inclusive of all Taxes)
Write a review
Please login or register to review

* Product Images are shown for illustrative purposes only and may differ from actual product.

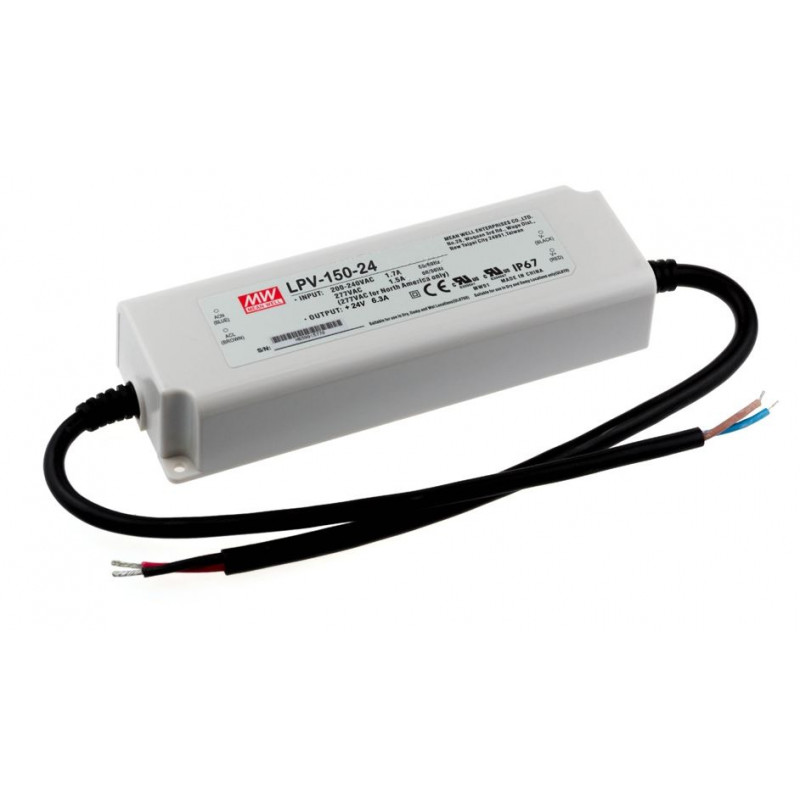

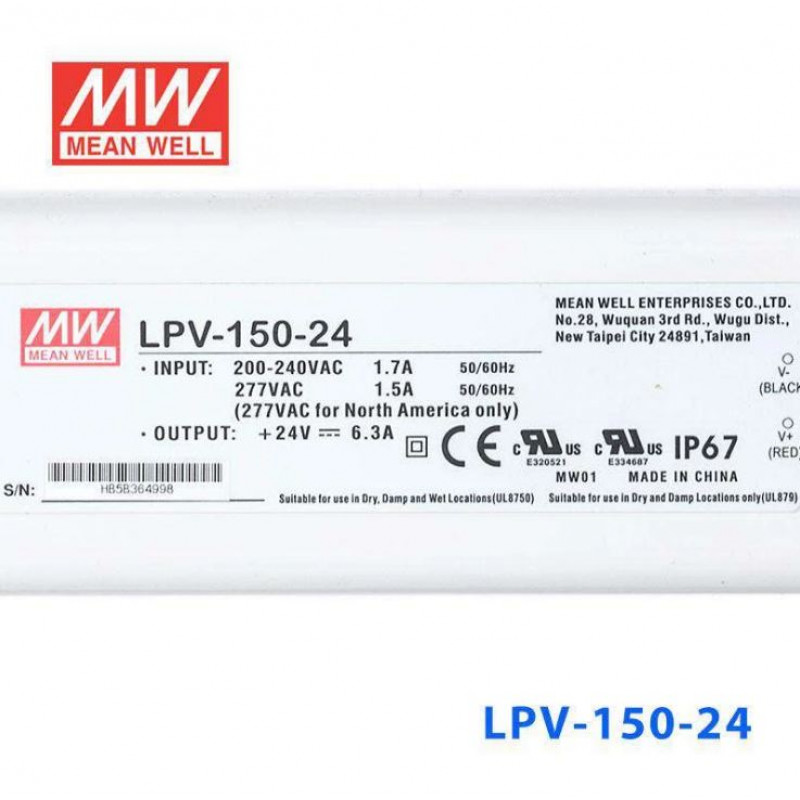

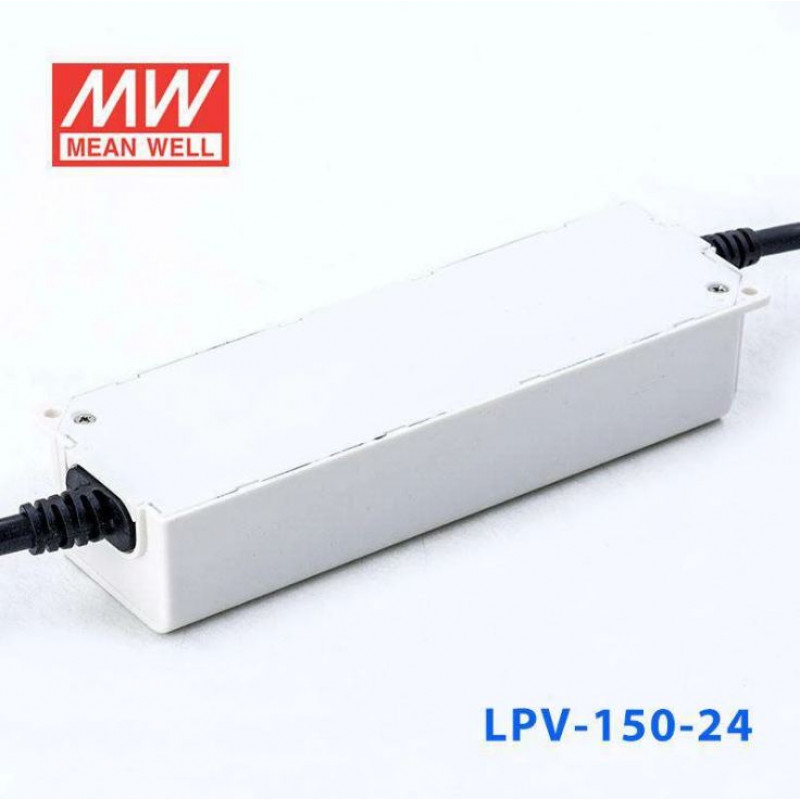

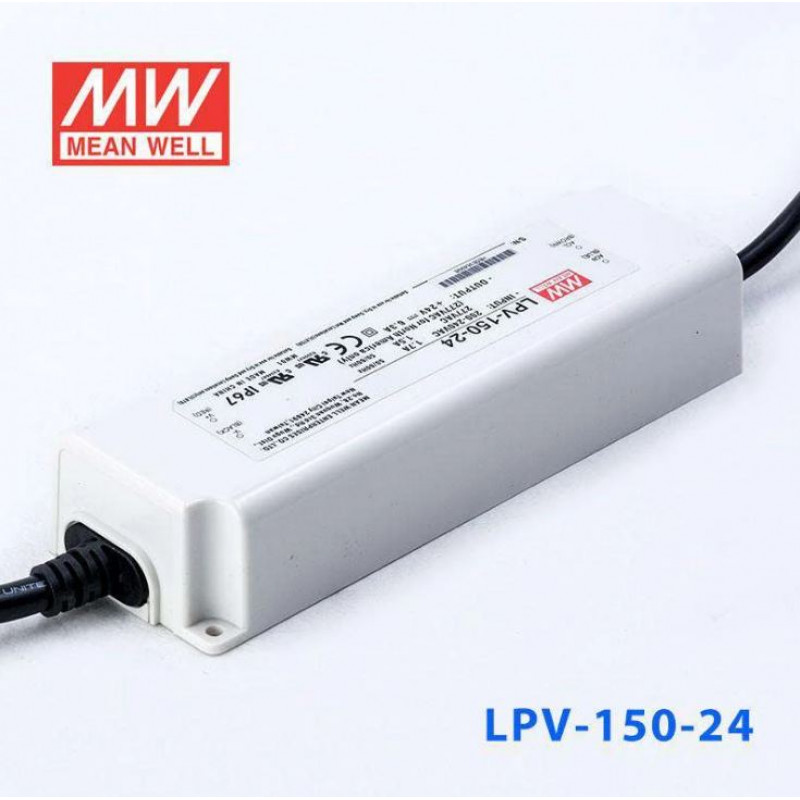

LPV-150-24 Mean Well SMPS - 24V 6.3A 151.2W Waterproof LED Power Supply

  • Product Code: EC-3520
  • Availability: Out Of Stock
  • Rs.2089.00
  • (Excluding 12% GST)
