Key Specifications:-

  • Output Voltage           12V
  • Type                         Enclosed Type
  • Approx. Wattage 25W
  • Features                 Standard
  • Series                 G3(Reliable)
  • Mechanical Form Enclosed
  • Warranty                 3 Years Warranty
  • IP Level                 Non-Waterproof
  • Input Voltage         100-240V auto-select


Features:-

  • No load power consumption <0.5W
  • All using 105°C long life electrolytic capacitors
  • Protections: Short circuit / Overload / Over voltage / Over Temp.
  • Meet EMS EN50082-2/EN61000-6-2
  • heavy industry level (35~150W)
  • Withstand 300VAC surge input for 5 sec.
  • High operating temperature up to 70°C
  • Withstand 5G vibration test
  • Miniature size, high power density
  • High efficiency, long life and high reliability
  • LED indicator for power on
  • 100% full load burn-in test
  • Suitable for critical applications
  • 3 years warranty


Specifications:-

AC input voltage range88~264VAC, 125~373VDC
AC inrush current (max.)30A at 230VAC
DC adjustment range±10% by potentiometer for single output; CH1 -5%~+10% by potentiometer for multiple output
Overload protection110%~180%
Over voltage protection115%~135% rated output voltage, hiccup mode, auto-recovery
Withstand voltageI/P - O/P: 3kVAC, I/P - FG: 1.5kVAC, O/P - FG: 0.5kVAC, 1 minute
Working temperature-20~+70°C
Vibration10~500Hz, 5G 10min. /1 cycle, period for 60 min. each along X, Y, Z axes
Safety standardsUL60950-1, TUV EN60950-1 approved
EMC standardsEN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, EN61000-6-2 (EN50082-2) (35~150W)

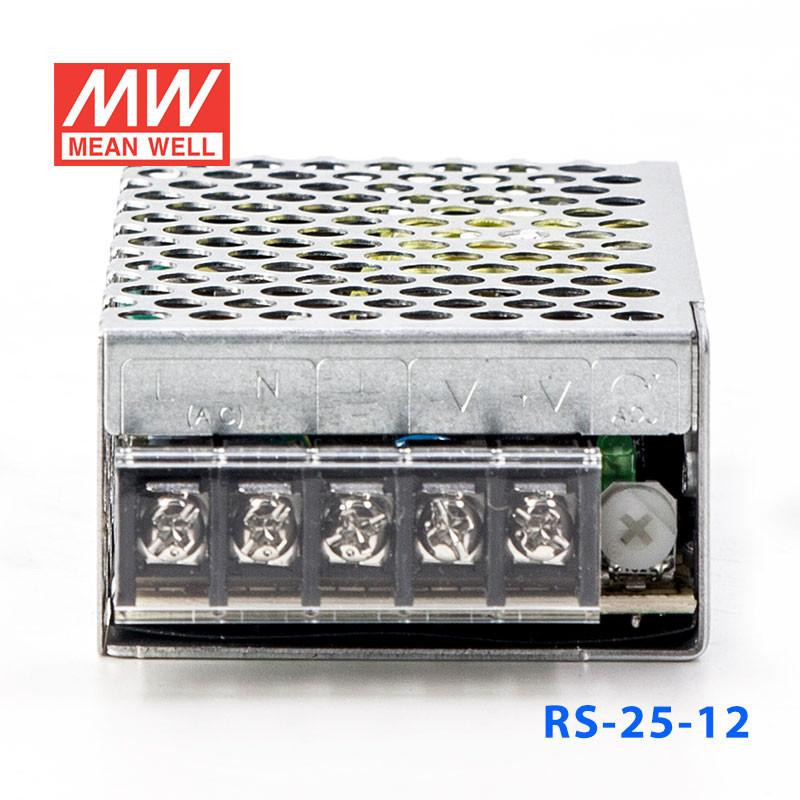

ConnectionTerminal block for input and output
Dimension (LxWxH)78x 51x 28
Case No.931A
Packing60pcs /13.0kg



Related Documents:-

 RS-25 Datasheet

 RS-25-12 Test Report

 CE Certificate (RS-25)

 UL Certificate (RS-25)

 CB Certificate (RS-25)

 TUV Certificate (RS-25)

 EMC Certificate(RS-25)

Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 1060.82 (Inclusive of all Taxes)
Write a review
Please login or register to review

* Product Images are shown for illustrative purposes only and may differ from actual product.

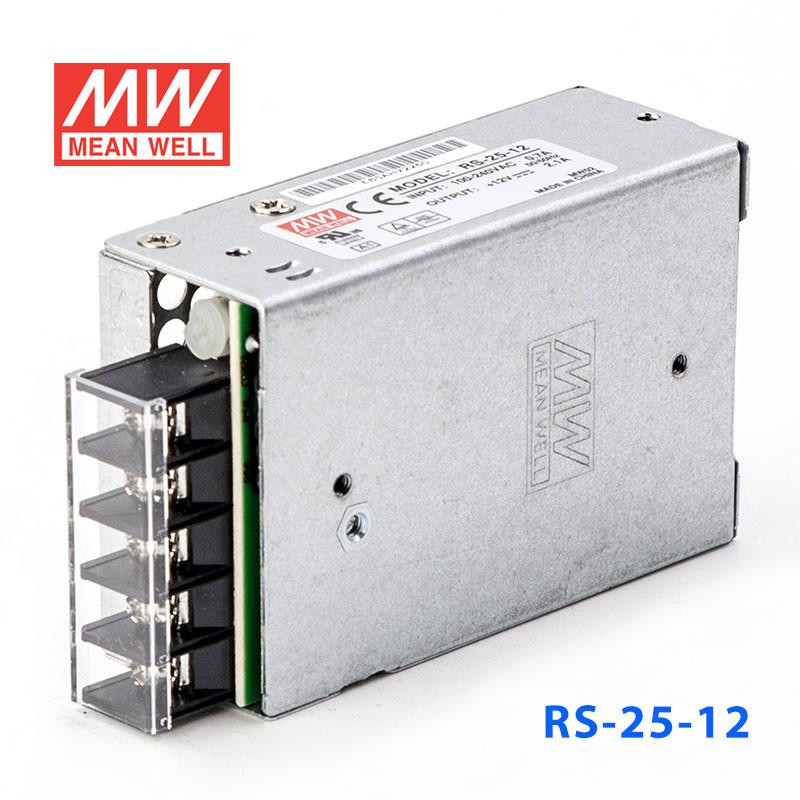

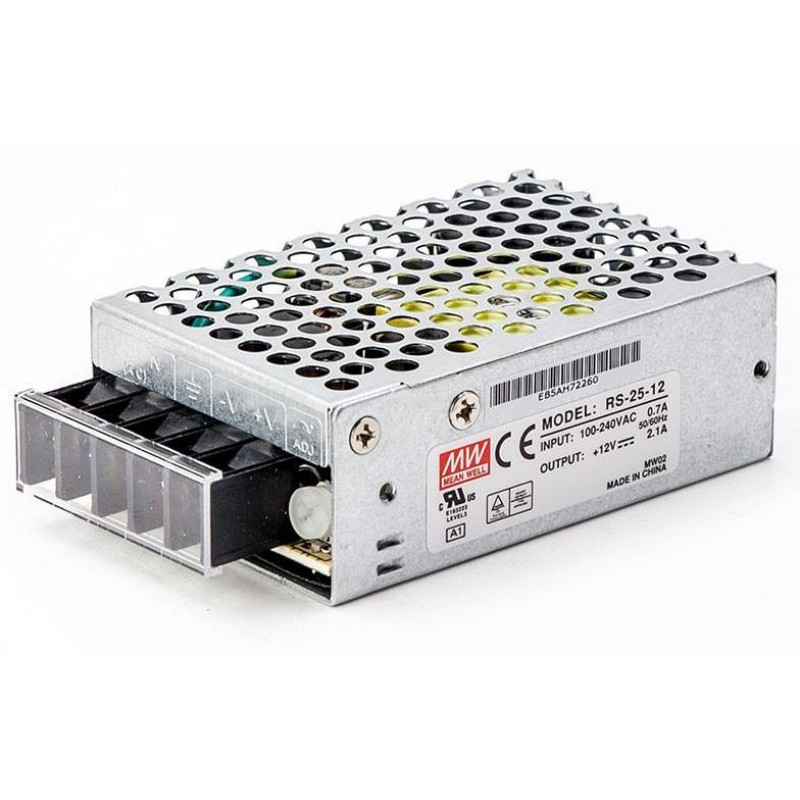

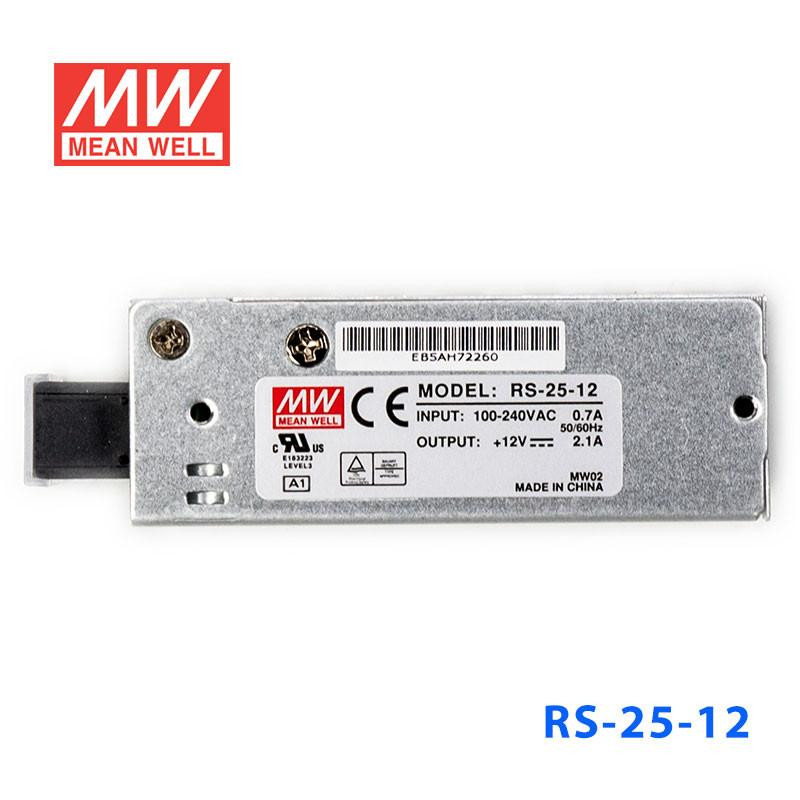

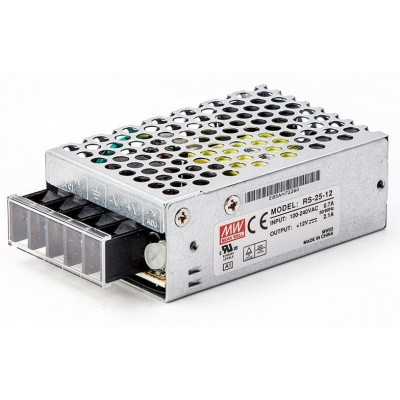

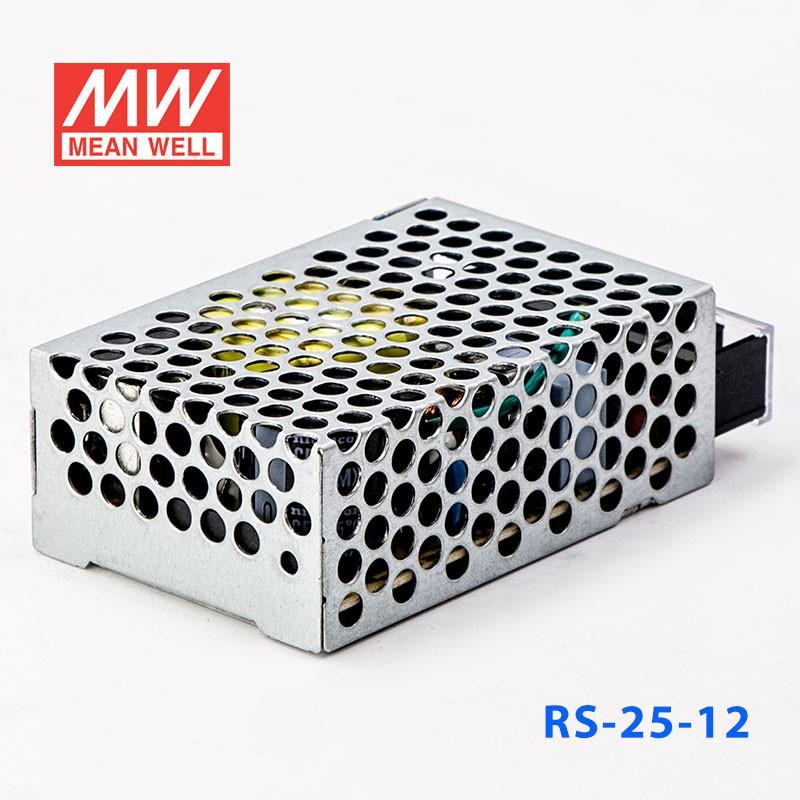

RS-25-12 Mean Well SMPS - 12V 2.1A - 25W Metal Power Supply

  • Product Code: EC-2636
  • Availability: 37
  • Rs.899.00
  • (Excluding 18% GST)
