Key Specifications:-

  • Output Voltage-Channel 1         5 VDC
  • Output Voltage-Channel 2         24 VDC
  • Output Voltage-Channel 3         12 VDC
  • Output Current-Channel 1         4A
  • Output Current-Channel 2         1.5A
  • Output Current-Channel 3         1A
  • Number of Outputs                   3 Output
  • Output Power                           68 W
  • Type                                        Enclosed Type Triple Output
  • Features                                 Standard
  • Series                                 RT (Reliable)
  • Mechanical Form                 Enclosed
  • Warranty                                 3 Years Warranty
  • IP Level                                 Non-Waterproof
  • Input Voltage                         88 VAC to 264 VAC, 125 VDC to 373 VDC


Features:-

  • Universal AC input / Full range
  • Protections: Short circuit / Overload / Over voltage
  • Cooling by free air convection
  • LED indicator for power on
  • 100% full load burn-in test
  • All using 105°C long life electrolytic capacitors
  • Withstand 300VAC surge input for 5 second
  • High operating temperature up to 70°C
  • Withstand 5G vibration test
  • High efficiency, long life and high reliability
  • 3 years warranty


Specifications:-

Manufacturer:          MEAN WELL

Output Voltage-Channel 1:          5 VDC

Output Voltage-Channel 2:          24 VDC

Output Voltage-Channel 3:          12 VDC

Number of Outputs:          3 Output

Output Power:          68 W

Open Frame/Enclosed:  Enclosed

Input Voltage:          88 VAC to 264 VAC, 125 VDC to 373 VDC

Input Current         1.2A/230VAC, 2A/115VAC

Output Current-Channel 1:  4 A

Output Current-Channel 2:  1.5 A

Output Current-Channel 3:  1 A

Operating Temperature: -25 TO +70 DEG CEL.

Voltage Adjustable Range:         4.75 ~ 5.5V

Frequency:         47 TO 63Hz

Protection:         Short circuit / Overload / Over voltage

Industry:                  Commercial

Mounting Style:          Chassis

Length:                  129 mm

Width:          98 mm

Height:                  38 mm

Safety Standards:  UL62368-1, TUV EN62368-1 approved

Series:                  RT-65

Model:         RT-65D

Brand:          MEAN WELL

EMC Emission:          Compliance to EN55032 (CISPR32) Class B, EN61000-3-2,-3, EAC TP TC 02

Unit Weight:          440 g



Related Documents:-

 RT-65 Datasheet

 RT-65D Test Report

 CE Certificate (RT-65)

 UL Certificate (RT-65)

 CB Certificate (RT-65)

 TUV Certificate (RT-65)

 EMC Certificate(RT-65)

Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 2000.1 (Inclusive of all Taxes)
Write a review
Please login or register to review

* Product Images are shown for illustrative purposes only and may differ from actual product.

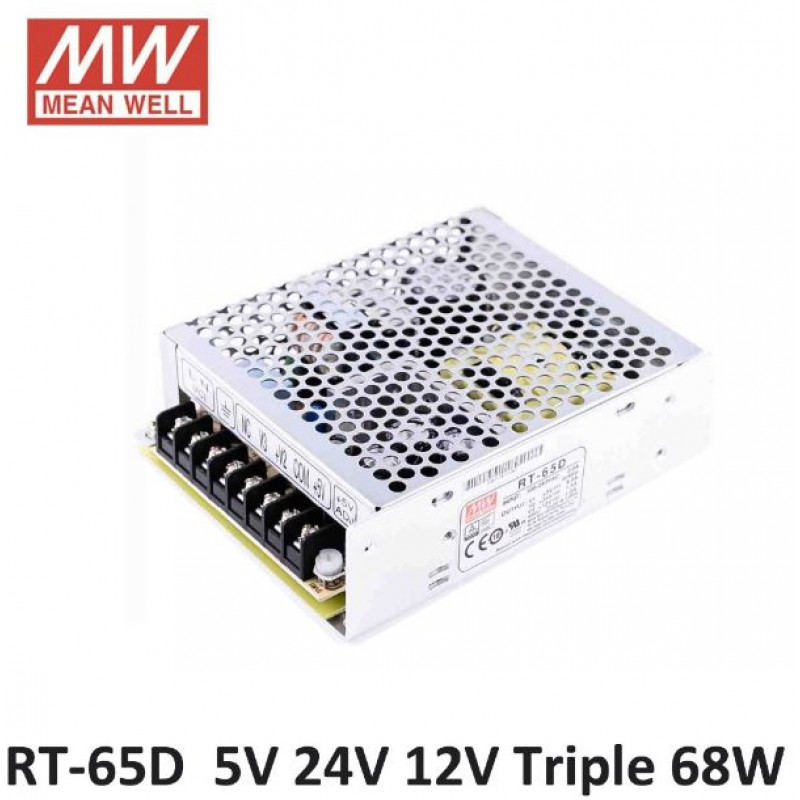

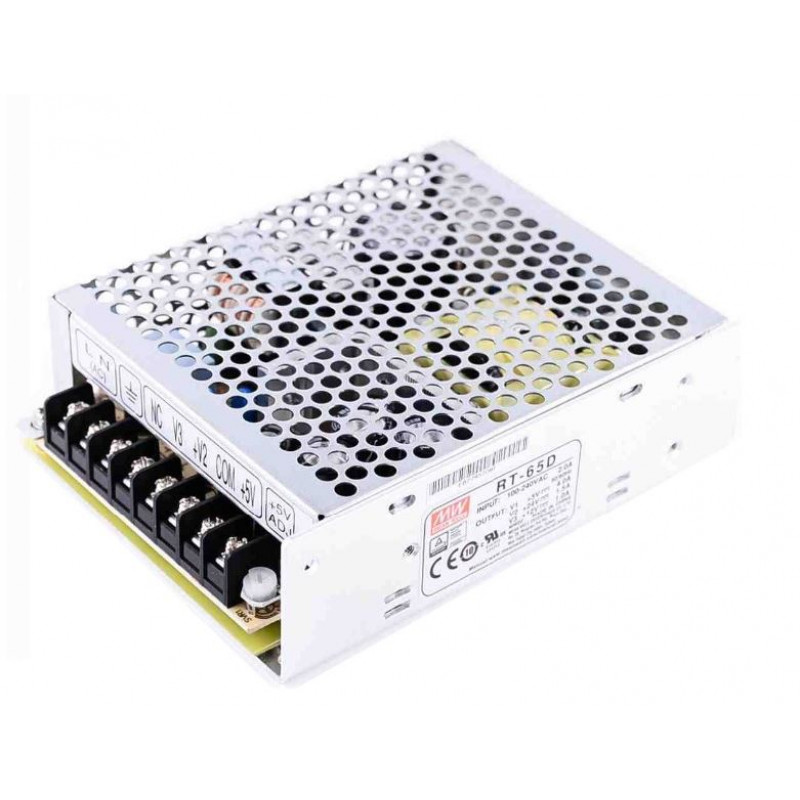

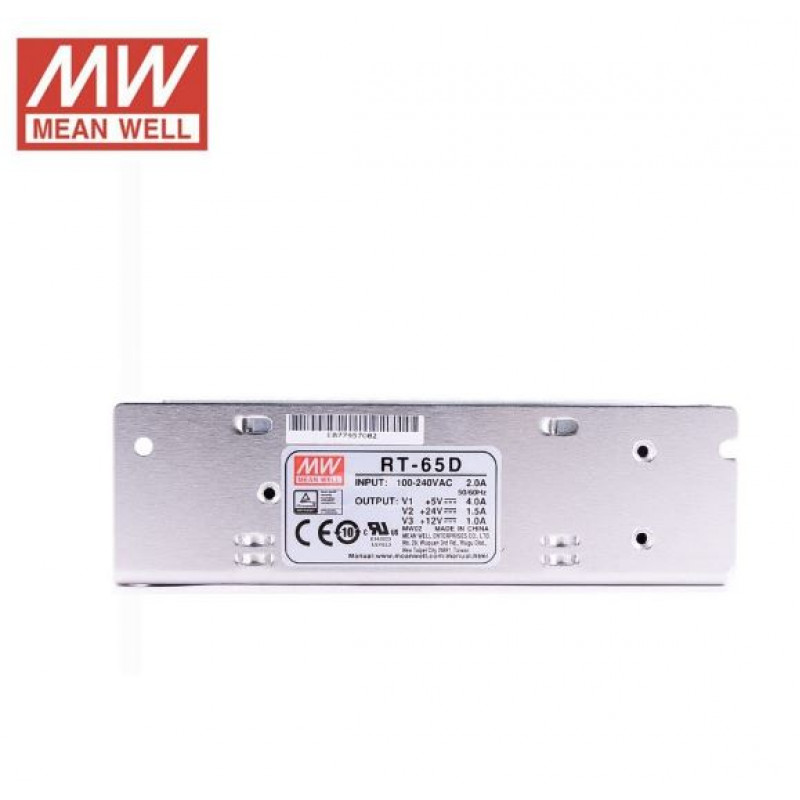

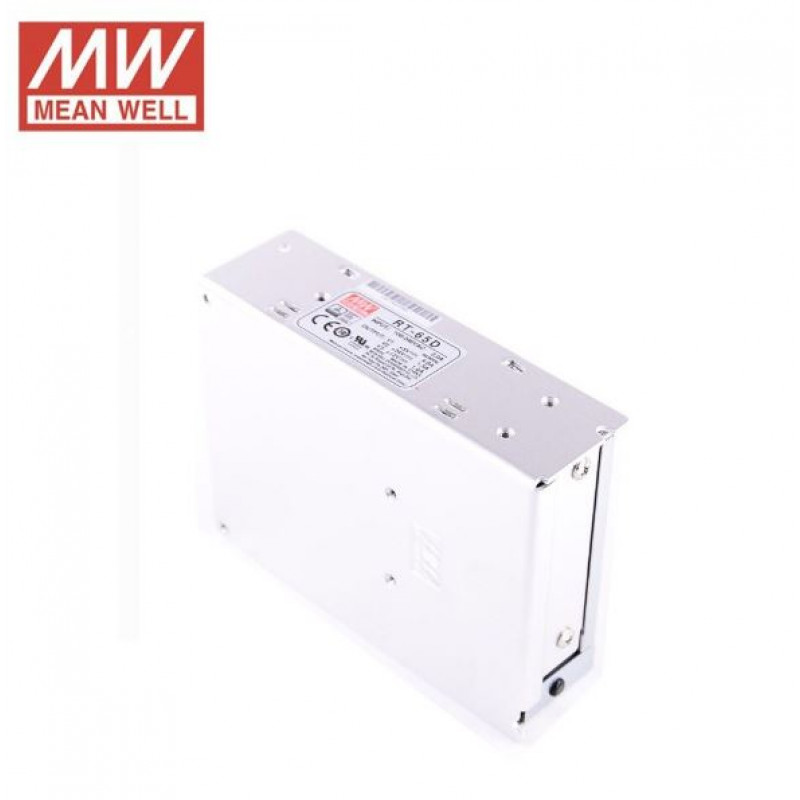

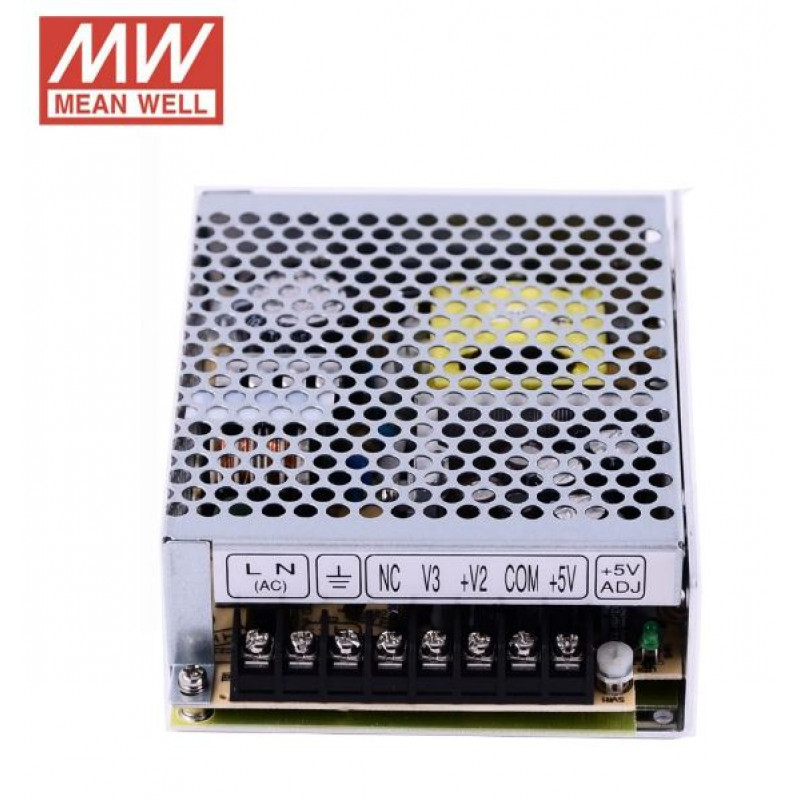

RT-65D Mean Well SMPS (5V 4A), (24V 1.5A) and (12V 1A) - 68W Triple Output Metal Power Supply

  • Product Code: EC-3406
  • Availability: Out Of Stock
  • Rs.1695.00
  • (Excluding 18% GST)
