Key Specifications:-

  • Output Voltage-Channel 1         5 VDC
  • Output Voltage-Channel 2         15 VDC
  • Output Voltage-Channel 3         -15 VDC
  • Output Current-Channel 1         7A
  • Output Current-Channel 2         3A
  • Output Current-Channel 3         0.5A
  • Number of Outputs                   3 Output
  • Output Power                           87.5 W
  • Type                                        Enclosed Type Triple Output
  • Features                                 Standard
  • Series                                 RT (Reliable)
  • Mechanical Form                 Enclosed
  • Warranty                                 3 Years Warranty
  • IP Level                                 Non-Waterproof
  • Input Voltage                         88 VAC to 264 VAC, 125 VDC to 373 VDC


Features:-

  • Universal AC input / Full range
  • Protections: Short circuit / Overload / Over voltage
  • Cooling by free air convection
  • LED indicator for power on
  • 100% full load burn-in test
  • All using 105°C long life electrolytic capacitors
  • Withstand 300VAC surge input for 5 second
  • High operating temperature up to 70°C
  • Withstand 5G vibration test
  • High efficiency, long life and high reliability
  • 3 years warranty


Specifications:-

Manufacturer:          MEAN WELL

Output Voltage-Channel 1:          5 VDC

Output Voltage-Channel 2:          15 VDC

Output Voltage-Channel 3:          -15 VDC

Number of Outputs:          3 Output

Output Power:          87.5 W

Open Frame/Enclosed:  Enclosed

Input Voltage:          88 VAC to 264 VAC, 125 VDC to 373 VDC

Input Current         1.5A/230VAC, 2.5A/115VAC

Output Current-Channel 1:  7 A

Output Current-Channel 2:  3 A

Output Current-Channel 3:  0.5 A

Operating Temperature: -25 TO +70 DEG CEL.

Voltage Adjustable Range:         4.75 ~ 5.5V

Frequency:         47 TO 63Hz

Protection:         Short circuit / Overload / Over voltage

Industry:                  Commercial

Mounting Style:          Chassis

Length:                  159 mm

Width:          97 mm

Height:                  38 mm

Safety Standards:  UL62368-1, TUV EN62368-1 approved

Series:                  RT-85

Model:         RT-85C

Brand:          MEAN WELL

EMC Emission:          Compliance to EN55032 (CISPR32) Class B, EN61000-3-2,-3, EAC TP TC 02

Unit Weight:          600 g



Related Documents:-

 RT-85 Datasheet

 RT-85C Test Report

 CE Certificate (RT-85)

 UL Certificate (RT-85)

 CB Certificate (RT-85)

 TUV Certificate (RT-85)

 EMC Certificate(RT-85)

Write a review
Please login or register to review

* Product Images are shown for illustrative purposes only and may differ from actual product.

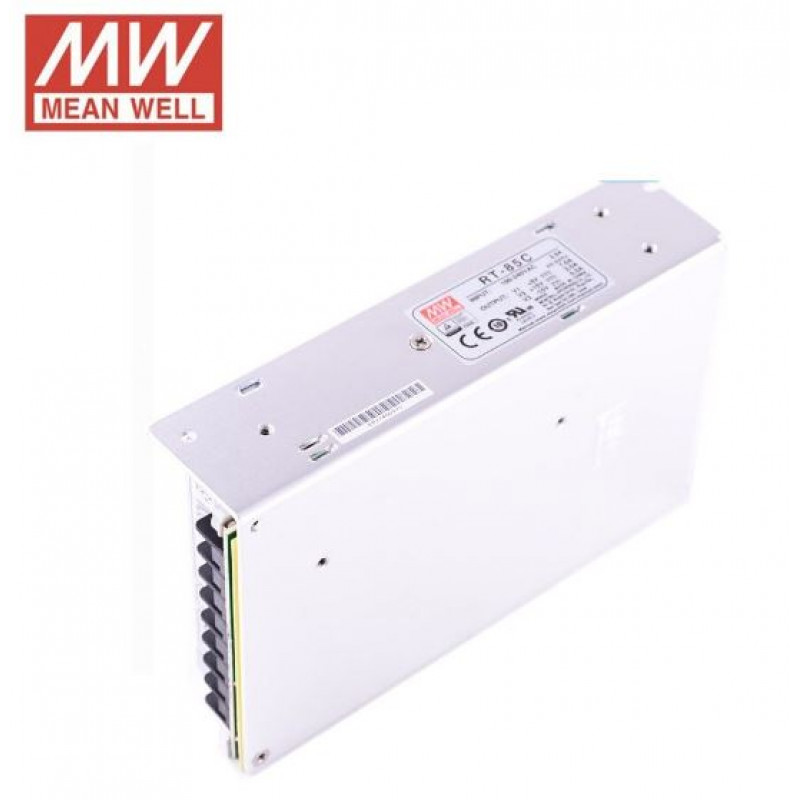

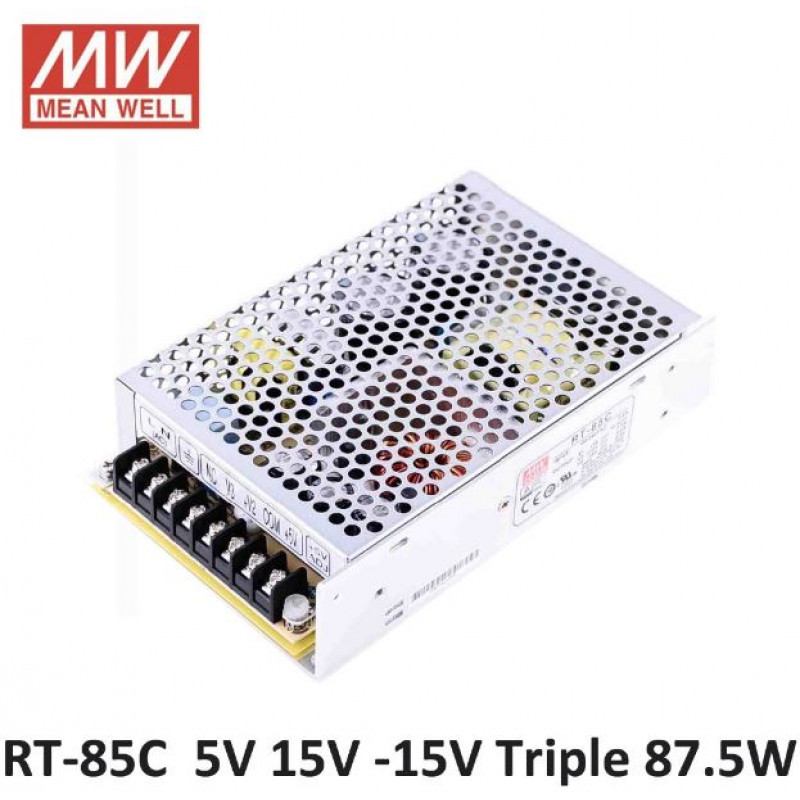

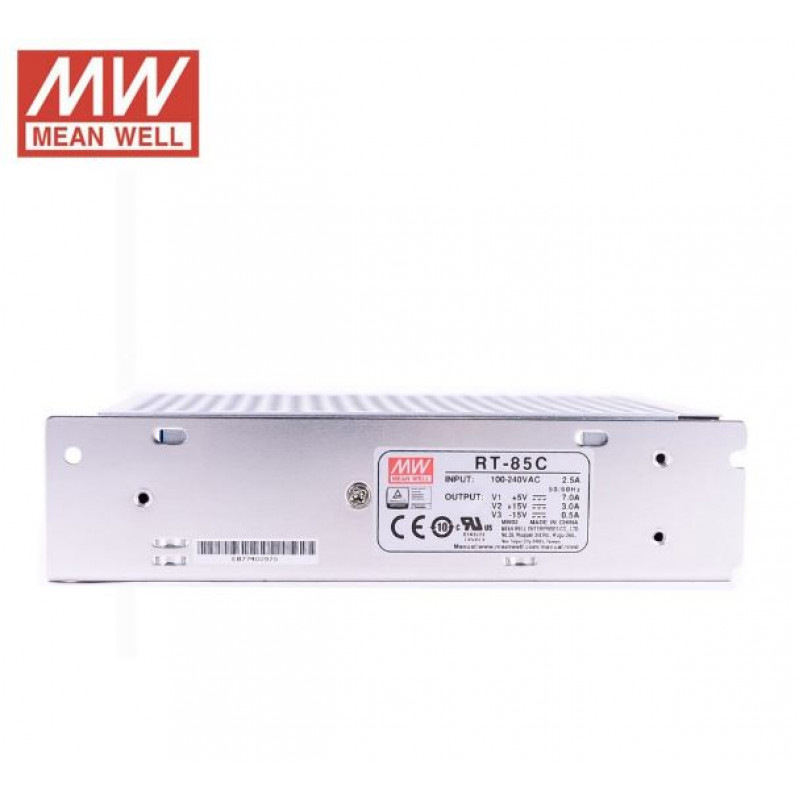

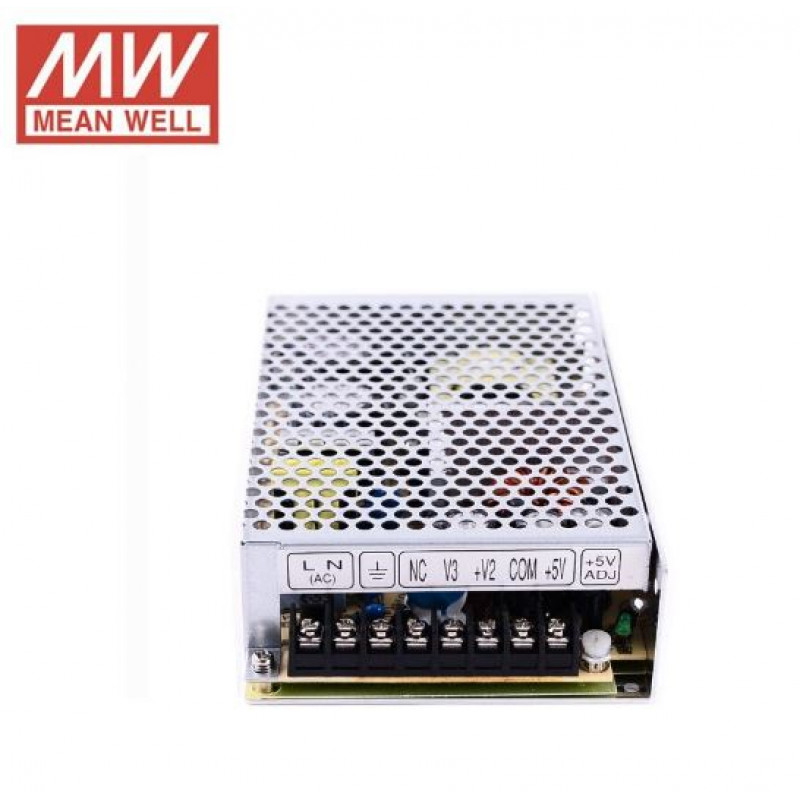

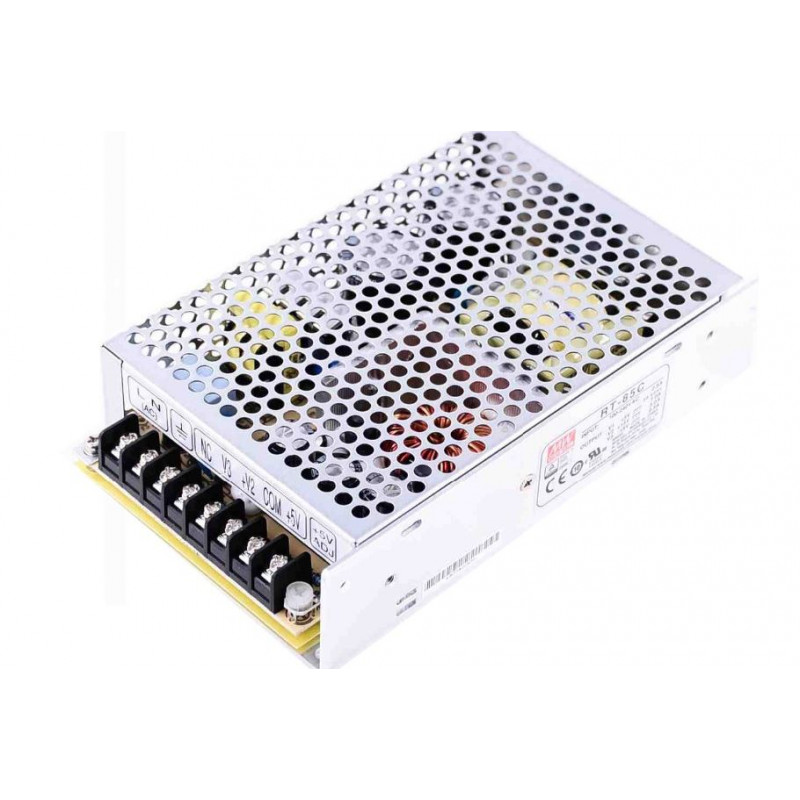

RT-85C Mean Well SMPS (5V 7A), (15V 3A) and (-15V 0.5A) - 87.5W Triple Output Metal Power Supply

  • Product Code: EC-3409
  • Availability: 171
  • Rs.2,145.00
