Key Specifications:-
- Output Voltage 12V
- Type Enclosed Type
- Approx. Wattage 1000W
- Features Standard
- Series SE(Reliable)
- Mechanical Form Enclosed
- Warranty 2 Years Warranty
- IP Level Non-Waterproof
- Input Voltage 100-240V auto-select
Features:-
- AC input selectable by switch
- 100% full load burn-in test
- LED indicator for power on
- Built-in remote sense function
- Forced air cooling by built-in DC fan
- Protections: Short circuit / Overload / Over voltage / Over temperature
- DC OK, remote ON/OFF control
- 2 years warranty
Specifications:-
| AC input voltage range | 90~132VAC / 180~264VAC selected by switch (600~1000W) |
| AC inrush current (max.) | Cold start, 55A at 230VAC |
| DC adjustment range | ±10% rated output voltage |
| Overload protection Range | 105%~125% |
| Overload protection Type | Shut down o/p voltage, re-power on to recover |
| Over voltage protection | 115%~145% |
| Withstand voltage | I/P - O/P: 3kVAC, I/P - FG: 1.5kVAC, 1 minute |
| Working temperature | -20~+60°C (refer to output derating curve) |
| Safety standards | UL60950-1 approved |
| EMC standards | Design refer to EN55022 class B |
| Connection | Terminal block with cover for input and output (SE-1000/1500: copper pillars for output) |
| Dimension (LxWxH) | 278x 127x 63.5 |
| Case No. | 935B |
Related Documents:-
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 14956.5 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

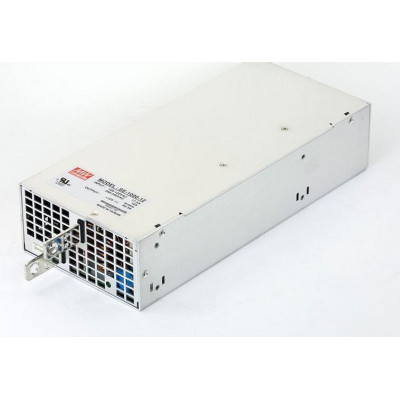

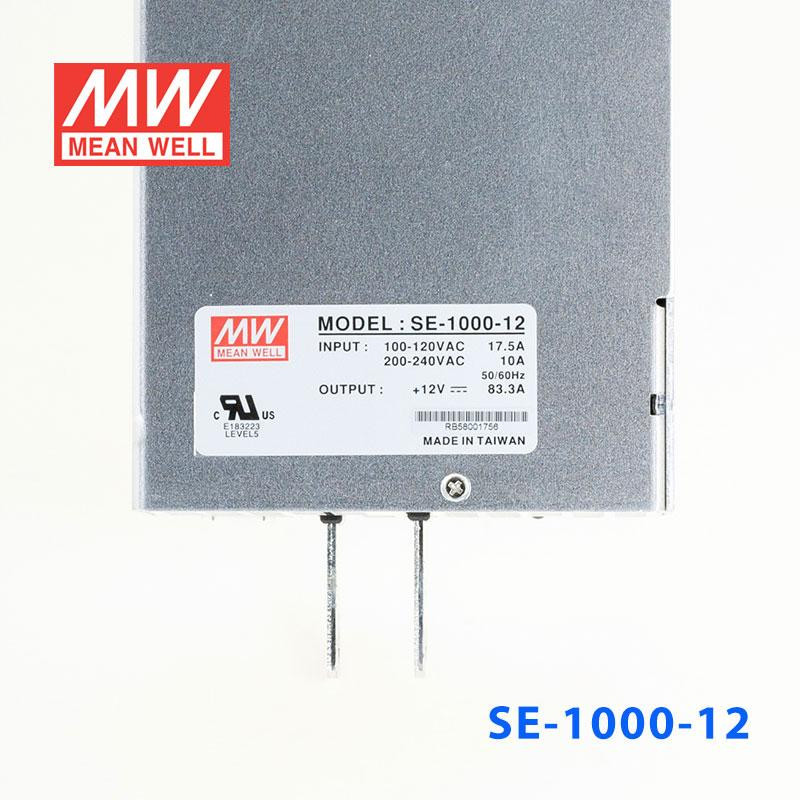

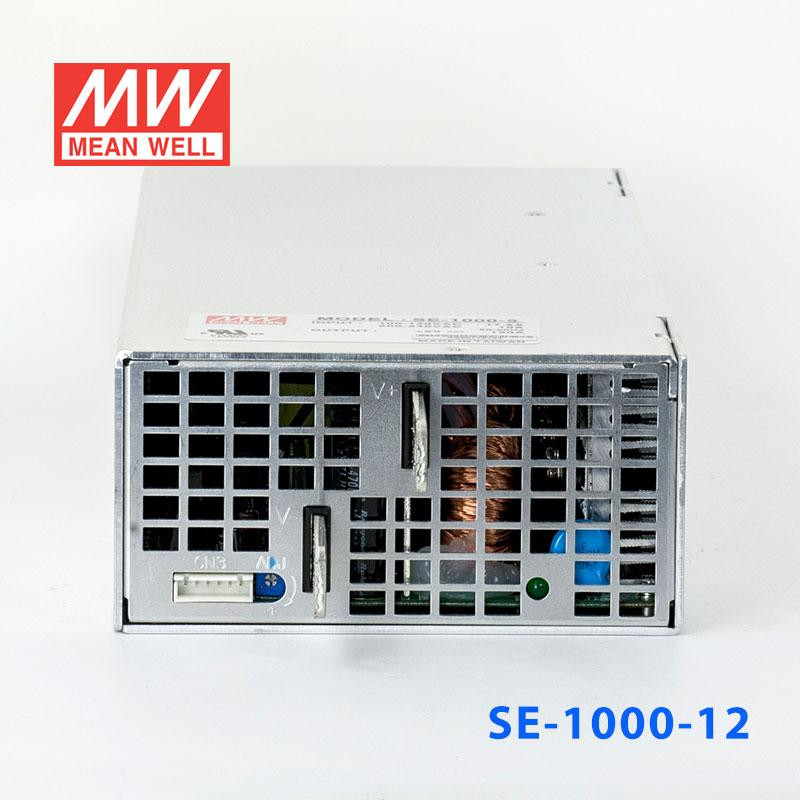

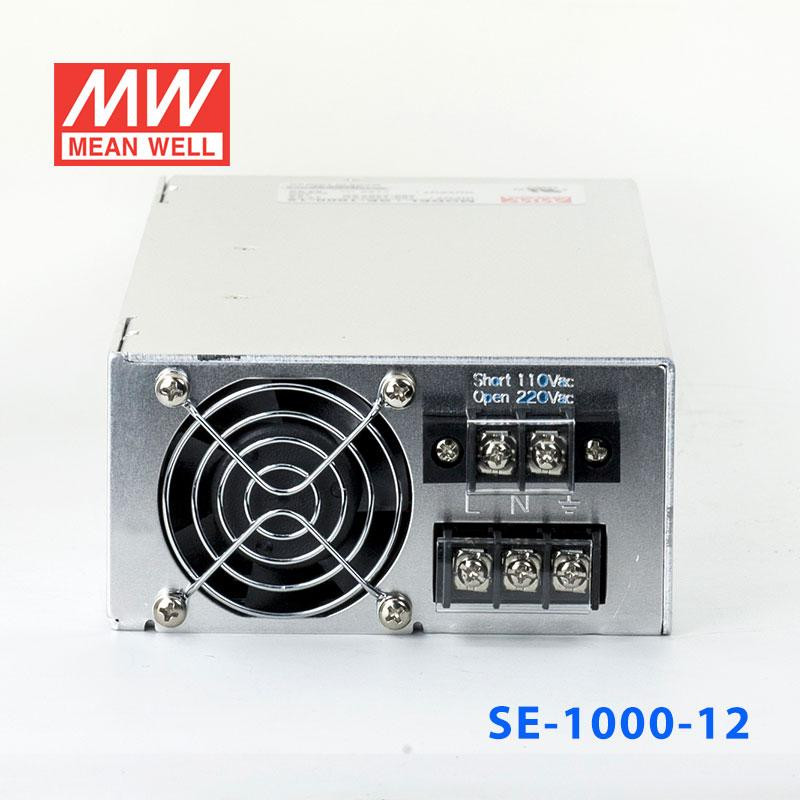

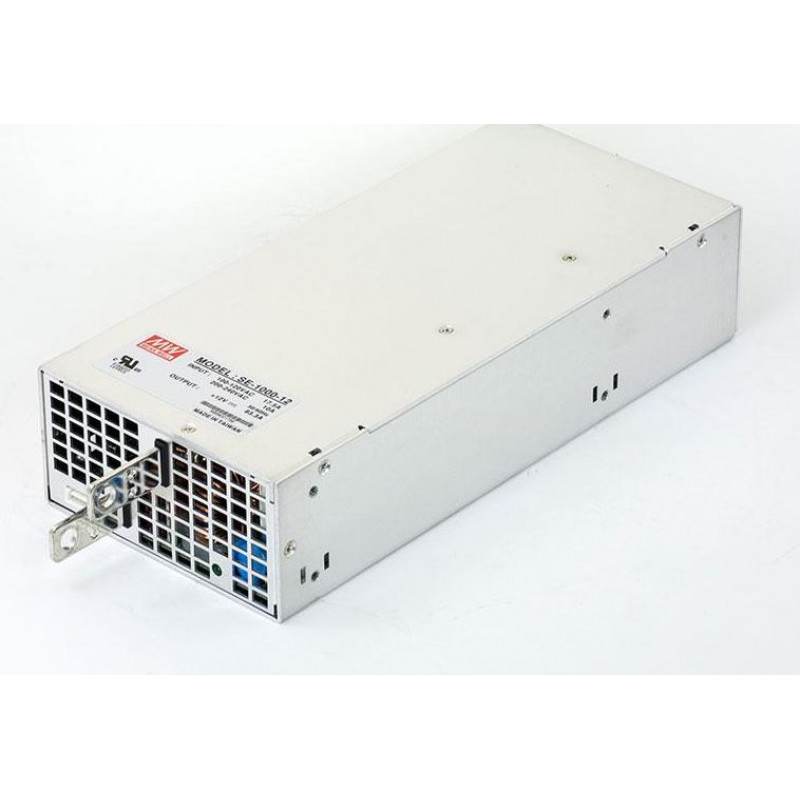

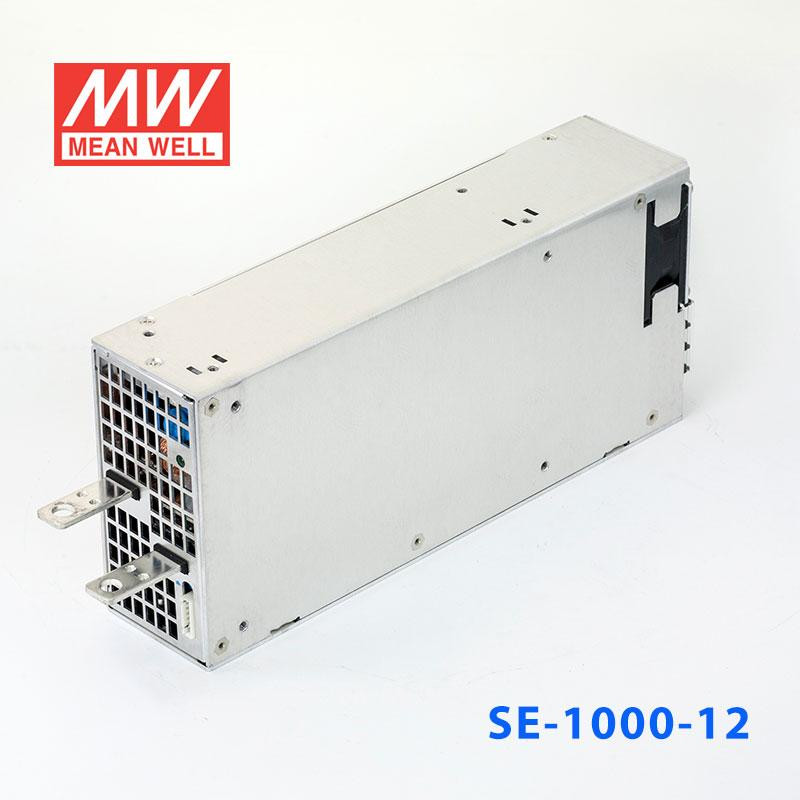

SE-1000-12 Mean Well SMPS - 12V 83.3A - 999.6W Metal Power Supply
- Product Code: EC-2963
- Availability: Out Of Stock
-
Rs.12675.00
- (Excluding 18% GST)
