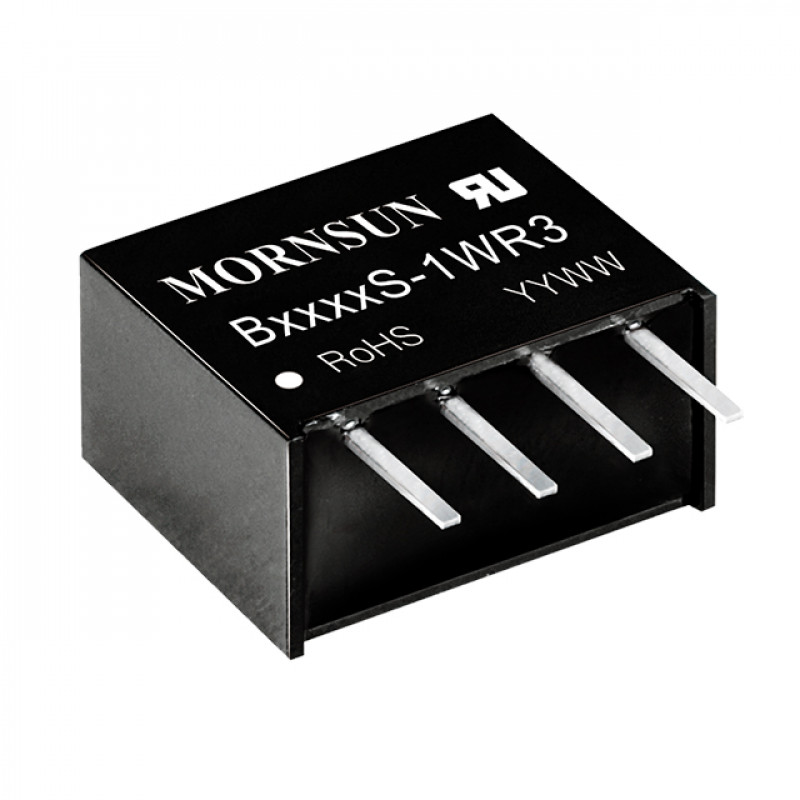

  • B0503S-1WR3 Mornsun 5V to 3.3V DC-DC Converter 1W Power Supply Module - Compact SIP Package

This B0503S-1WR3 Mornsun 5V to 3.3V DC-DC Converter 1W Power Supply Module from Mornsun is designed for applications where an isolated voltage is required in a distributed power supply system. They are suitable for: pure digital circuits, low frequency analog circuits, relay-driven circuits and data switching circuits.

Equipped with numerous features, including a compact SIP package, high efficiency and an operating temperature of -40°C to +105°C.


Features:

  1. Meet UL, CE requirements.
  2. Continuous short-circuit protection
  3. No-load input current as low as 5mA
  4. Operating temperature range: -40℃ to +105℃
  5. High efficiency up to 85%
  6. Isolation voltage:1.5K VDC/min, 3K VDC/1s
  7. International standard pin-out
  8. Compact SIP package
  9. UL62368, EN62368 approval


Specifications:-

Model Number:            B0503S-1WR3
Input Voltage range:    4.5-5.5 V
Nominal voltage:         5 Vdc
Output voltage:           3.3V
Output current:           303/30(mA)
Wattage:                    1W
Isolation Voltage:        1.5 kVdc/min, 3KVdc/s
Package:                    SIP
Size:                          11.60mm(Length) X 6.00mm(Width) X 10.16mm (Height)
Weight:                      1.3gm

Package Includes:-

1 x B0503S-1WR3 Mornsun 5V to 3.3V DC-DC Converter 1W Power Supply Module SIP Package

Related Documents:-

 Mornsun B0503S-1WR3 Datasheet

Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 336.3 (Inclusive of all Taxes)
