E2405S-1WR2 series is specially designed for applications where an isolated voltage is required in a distributed power supply system. It is suitable for：

1.Where the voltage of the input power supply is stable (voltage variation: ±10%Vin);

2.Where isolation is necessary between input and output (isolation voltage ≤3000VDC);

3.Where do not has high requirement of line regulation, load regulation and low ripple noise;

4.Such as: pure digital circuits, low frequency analog circuits and relay-driven circuits. etc.

Features:-

• Compact SIP package
• Industry standard pin-out
• High efficiency up to 81%
• I/O isolation test voltage 3k VDC
• Operating ambient temperature range: -40℃ to +105℃
• EN60950, UL60950 approved

Specifications:-

• I/p Voltage range:21.6-26.4vdc
• Nominal voltage:24Vdc
• O/p voltage:+-5V
• O/p current:+-100/10(mA)
• wattage:1W
• Isolation:3kVdc
• Package : SIP

Package Includes:-

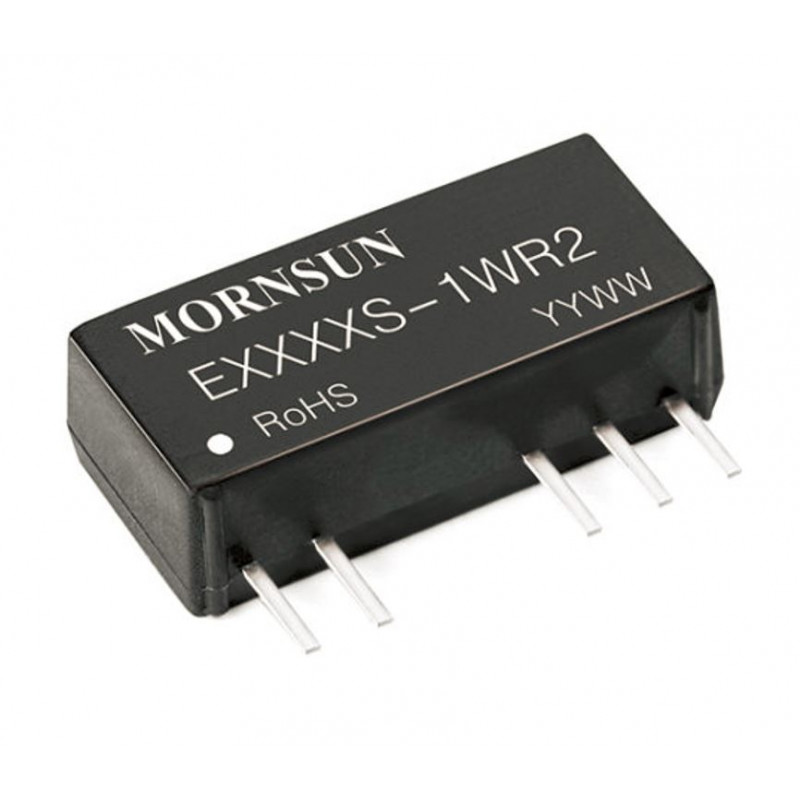

1 x E2405S-1WR2 Mornsun 24V to ±5V DC-DC Converter 1W Power Supply Module - Compact SIP Package
