F0305S-1WR2 series is specially designed for applications where an isolated voltage is required in a distributed power supply system. It is suitable for：

1.Where the voltage of the input power supply is stable (voltage variation: ±10%Vin);

2.Where isolation is necessary between input and output (isolation voltage ≤3000VDC);

3.Where do not has high requirement of line regulation, load regulation and low ripple noise;

4.Such as: pure digital circuits, low frequency analog circuits and relay-driven circuits. etc.

Features:-

• Continuous short-circuit protection
• No-load input current as low as 5mA
• Operating ambient temperature range: -40℃ to+105℃
• High efficiency up to 85%
• I/O isolation test voltage: 3K VDC
• Industry standard pin-out
• SIP package
• IEC62368, UL62368, EN62368 approved

Specifications:-

• I/p Voltage range:2.97-3.63vdc
• Nominal voltage:3.3Vdc
• O/p voltage:5V
• O/p current:200/20(mA)
• wattage:1W
• Isolation:3kVdc
• Package : SIP

Package Includes:-

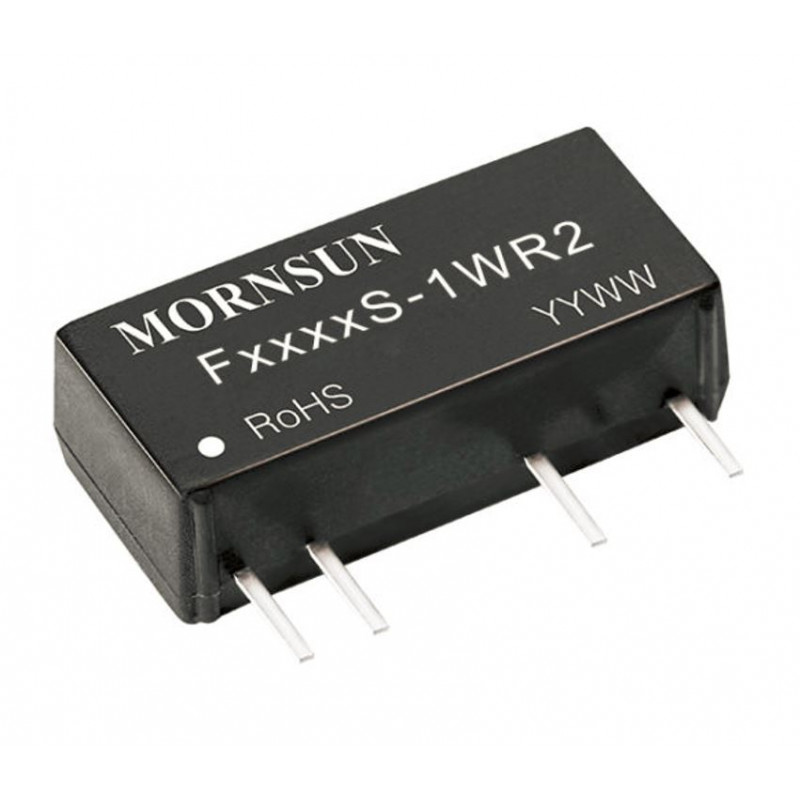

1 x F0305S-1WR2 Mornsun 3.3V to 5V DC-DC Converter 1W Power Supply Module - SIP Package

Download DATASHEET :

Download
