Features:
- Compact SIP package
- Industry standard pin-out
- High efficiency up to 81%
- I/O isolation test voltage 3k VDC
- Operating ambient temperature range: -40 to +105
- EN60950, UL60950 approved
Specifications :-
DC-DC CONVERTER
I/p Voltage range:13.5-16.5vdc
Nominal voltage:15Vdc
O/p voltage:5V
O/p current:200/20(mA)
wattage:1W
Isolation:3kVdc
Package: SIP
Package Includes:
1 x F1505S-1WR2 Mornsun 15V to 5V DC-DC Converter 1W Power Supply Module - Compact SIP Package
Download DATASHEET :
Download| Brand/Manufacturer | Mornsun |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 518.02 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

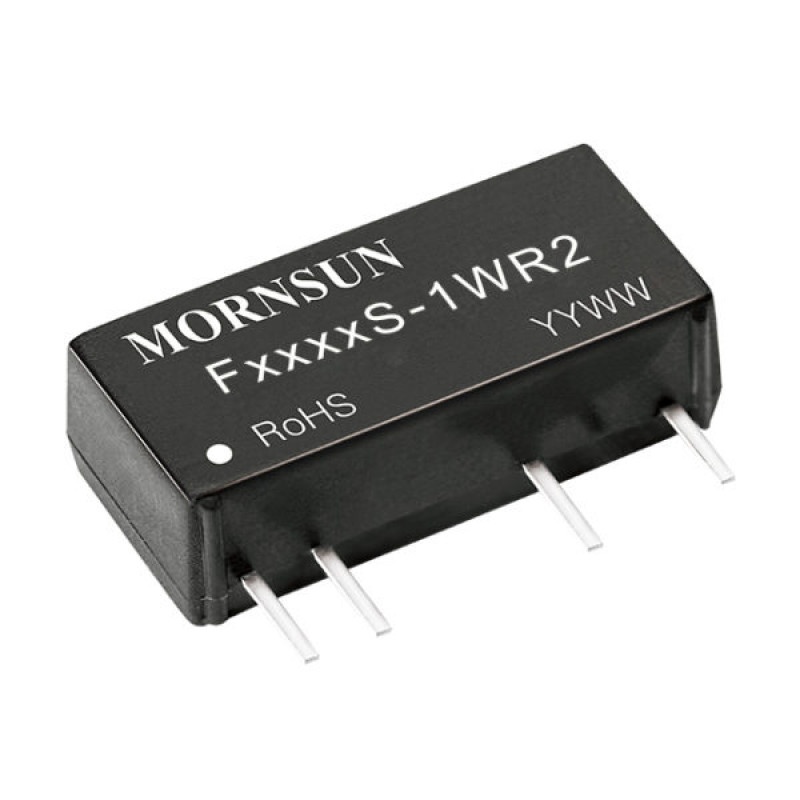

F1505S-1WR2 Mornsun 15V to 5V DC-DC Converter 1W Power Supply Module - Compact SIP Package
- Product Code: EC-9505
- Availability: Out Of Stock
-
Rs.439.00
- (Excluding 18% GST)
