Features:

High efficiency up to 96%
No-load input current as low as 0.1mA
Operating ambient temperature range -40 to +85
Support the negative output
Output short-circuit protection
Pin compatible with LM78xx series
IEC60950, UL60950, EN60950 Approval

Specifications :-

I/p Voltage range:6-36vdc
Nominal voltage:24Vdc
O/p voltage:3.3V
O/p current:1000(mA)
wattage:1W
Isolation: No
Package: SIP

Package Includes:

1 x K7803-1000R3 Mornsun 24V to 3.3V DC-DC Converter 1W Power Supply Module - SIP Package

Download DATASHEET :


Brand/Manufacturer	Mornsun
Country Of Origin	China
Packer / Importer Address	Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP	Rs. 388.22 (Inclusive of all Taxes)

* Product Images are shown for illustrative purposes only and may differ from actual product.

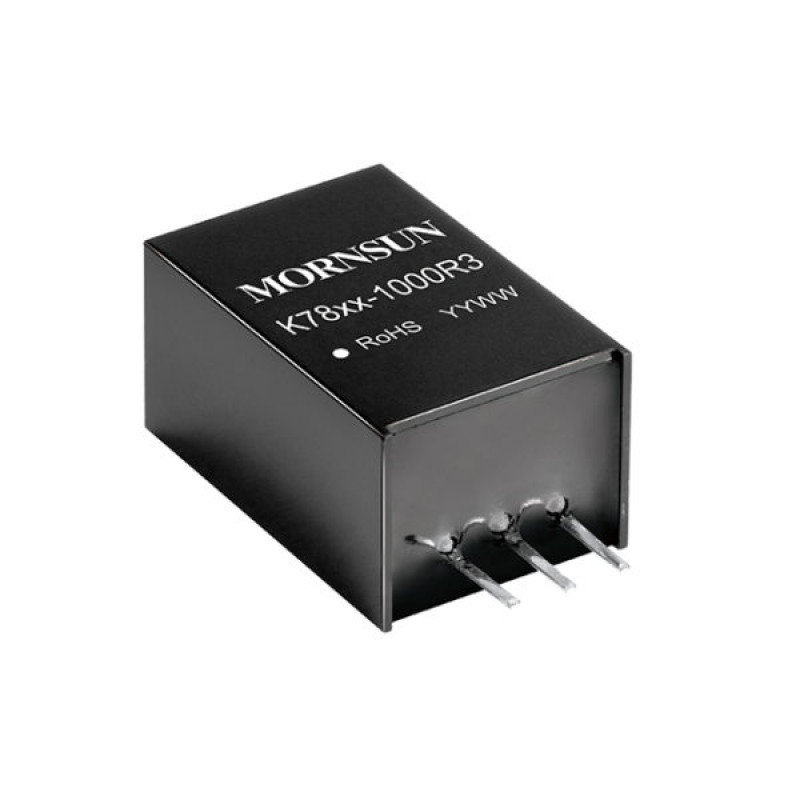

K7803-1000R3 Mornsun 24V to 3.3V DC-DC Converter 1W Power Supply Module - SIP Package

Product Code: EC-9484
Availability: Out Of Stock

Rs.329.00
(Excluding 18% GST)
