K7804-1000R3 series are high efficiency switching regulators and ideal substitutes of LM78XX series three-terminal linear regulators. The product is featured with high efficiency, low loss and no heat sink requirement. They are widely used in industrial control, electric power, and instrumentation applications.
Features:-
- High efficiency up to 85%
- No-load input current as low as 0.1mA
- Operating ambient temperature range: -40℃ to+85℃
- Support the negative output
- Short-circuit protection
- Pin-out compatible with LM78XX linear regulators
Specifications:-
- I/p Voltage range:8-36vdc
- Nominal voltage:24Vdc
- O/p voltage:+4V
- O/p current:1000(mA)
- wattage:1W
- Isolation: No
- Package: SIP
Package Includes:-
1 x K7804-1000R3 Mornsun +4V/-4V Output DC-DC Converter 1W Power Supply Module - SIP Package
Download DATASHEET :
| Brand/Manufacturer | |
| Country Of Origin | |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

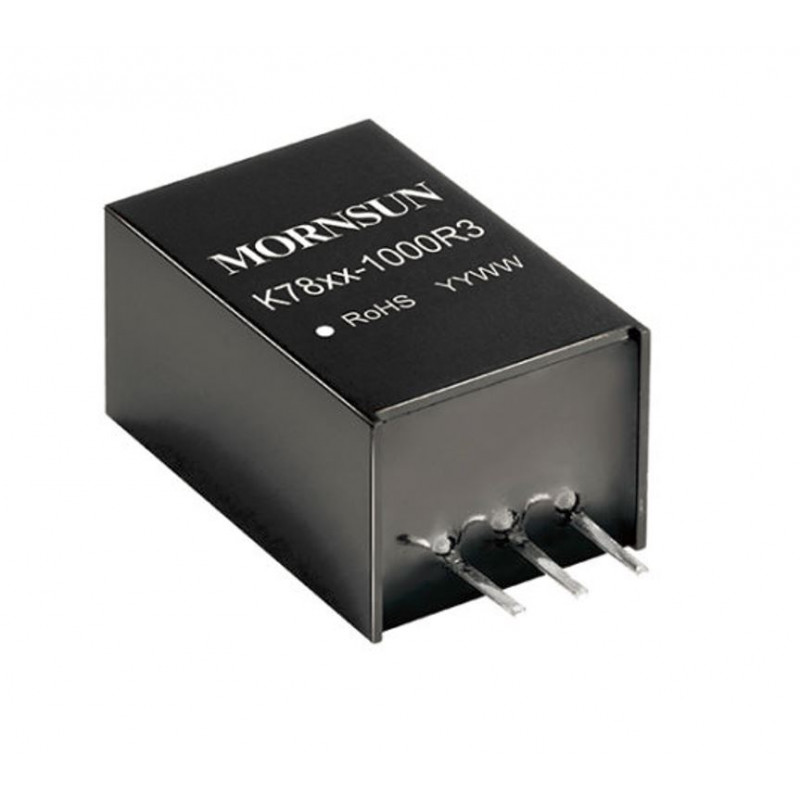

K7804-1000R3 Mornsun +4V/-4V Output DC-DC Converter 1W Power Supply Module - SIP Package
- Product Code: EC-16717
- Availability: 32
-
Rs.349.00
- (Excluding 18% GST)
