FEATURES :
- High efficiency up to 96%
- No-load input current as low as 0.1mA
- Operating ambient temperature range: -40 to+85
- Negative output available
- Output short-circuit protection
- Pin-out compatible with LM78XX linear regulators
- IEC60950, UL60950, EN60950 approved
Specifications :-
DC-DC Converter
I/p Voltage range:6-36vdc
Nominal voltage:24Vdc
O/p voltage:3.3V
O/p current:1000(mA)
wattage:1W
Isolation:No
Package:SIP
Package Includes:
1 x K78L03-1000R3 Mornsun 3.3V Output DC-DC Converter 1W High Efficiency Switching Regulator Module - SIP Package
Download DATASHEET :
Download
| |
| Brand/Manufacturer |
Mornsun |
| Country Of Origin |
China |
| Packer / Importer Address |
Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP |
Rs. 388.22 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

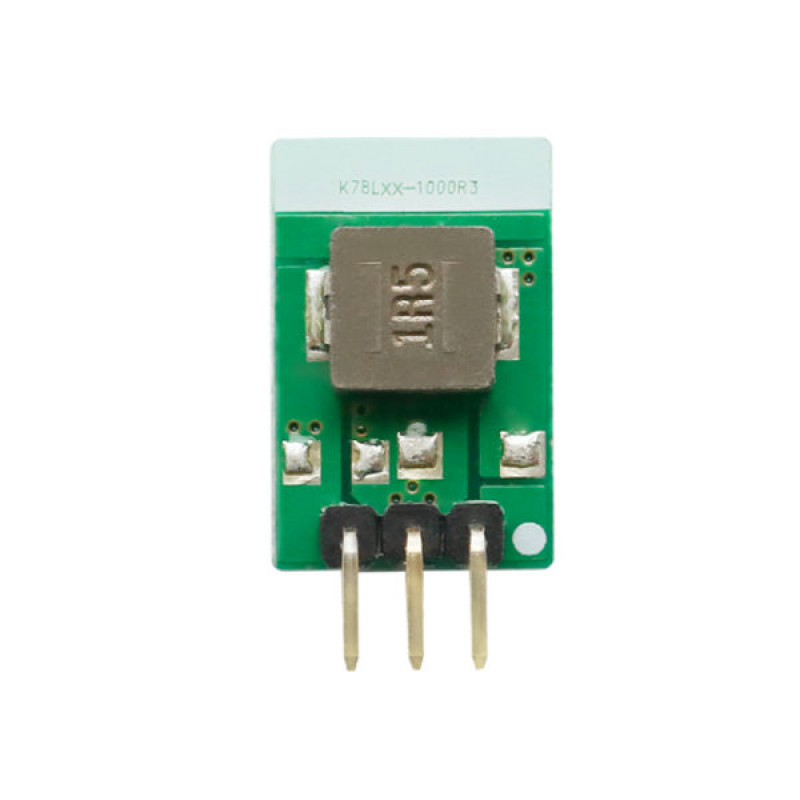

K78L03-1000R3 Mornsun 3.3V Output DC-DC Converter 1W High Efficiency Switching Regulator Module - SIP Package
- Product Code: EC-9519
- Availability: Out Of Stock
-
Rs.329.00
- (Excluding 18% GST)
