LMF1000-20B36 series is one of Mornsun’s enclosed AC-DC switching power supply. It features universal AC input and at the same time accepts DC input voltage, cost-effective, low no load power consumption, high efficiency, high reliability and double or reinforced insulation. These converters offer excellent EMC performance and meet IEC/EN61000-4, CISPR32/EN55032, IEC/UL/EN62368, EN60335,EN60601, GB4943 standards and they are widely used in areas of industrial, LED, street light control, electricity, security, telecommunications, smart home. etc.
Key Specifications
| Type | Enclosed Type Single Output |
| Output Power | 1018W |
| Series | LMF1000-20B |
| Part Number | LMF1000-20B36 |
| Mechanical Form | Enclosed |
| IP Level | Non-Waterproof |
| Output Voltage | 36V |
| Output Current | 28A |
Features
- Wide range Input voltage 90 -264VACor 120 - 370VDC
- Accepts AC or DC input (dual-use of same terminal)
- Operating ambient temperature range: -40℃to+70℃(Non-condensing)
- High reliability, efficiency up to 94%
- Wide range of adjustable output voltage
- Output short circuit, over-current, over-voltage protection, over-temperature protection
- Support 3+1 parallel redundancy, current sharing
- Built-in active PFC function
- Operating up to 5000m altitude
- Fan speed automatic adjustable
- Safety according to IEC62368-1, ES/EN60601-1-2:2015Edition 4
Download DATASHEET :
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

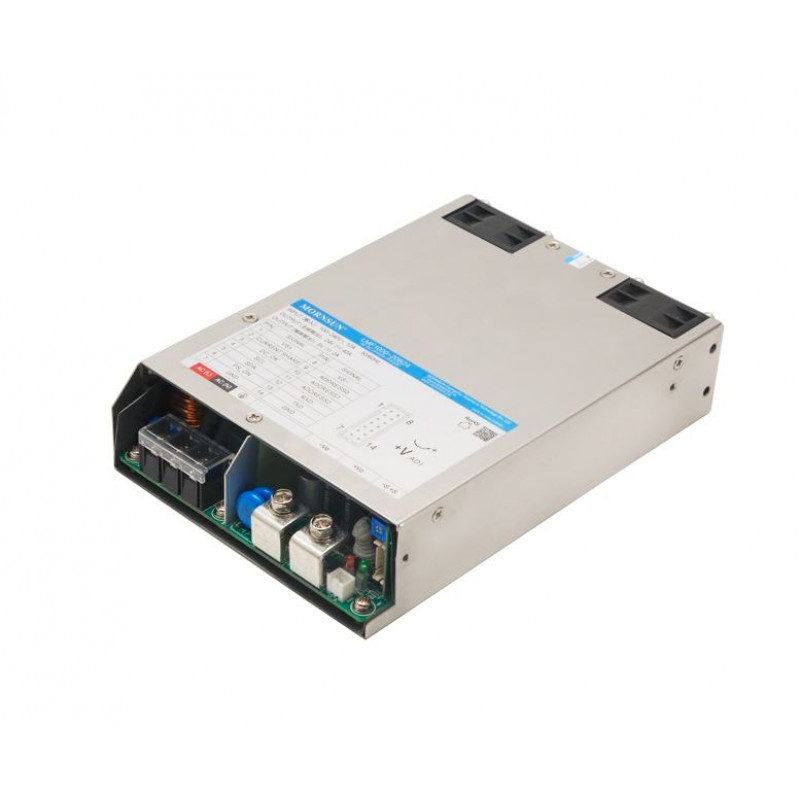

LMF1000-20B36 Mornsun SMPS - 36V 28A - 1018W AC/DC Enclosed Switching Single Output Power Supply
- Product Code: EC-10622
- Availability: Out Of Stock
-
Rs.19899.00
- (Excluding 18% GST)
