- High Power Density
- High efficiency of up to 80%
- Operating ambient temperature range :-40 to +105C
- Ultra Compact SIP Package
- Industry standard pin-out
- I/p isolation test voltage 1.5K VDC
- UL60950/EN60950 Approved
A0303S-1WR2 is designed for use in distributed power supply systems and especially suitable in applications such as pure digital circuits, low frequency analog circuits, relay-driven circuits and data switching circuits, where:
1. The voltage of the input power supply is relatively stable with a variation of ±10%Vin or less;
2. An input to output isolation voltage of up to 1500VDC is necessary;
3. The requirement for a tight line and load regulation is not as strict. Such as pure digital circuits, low frequency analog circuits, relay-driven circuits and data switching circuits
Features:-
Specifications:-
- I/p Voltage range : 2.97-3.63 vdc
- Nominal voltage :3.3Vdc
- O/p voltage : ±3.3V
- O/p current :±152/15(mA)
- wattage :1W
- Isolation :1.5K Vdc
- Package : SIP
Package Includes:-
1 x A0303S-1WR2 Mornsun 3.3V to ±3.3V DC-DC Converter 1W Power Supply Module - Ultra Compact SIP Package
Download DATASHEET :
| Brand/Manufacturer | |
| Country Of Origin | |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

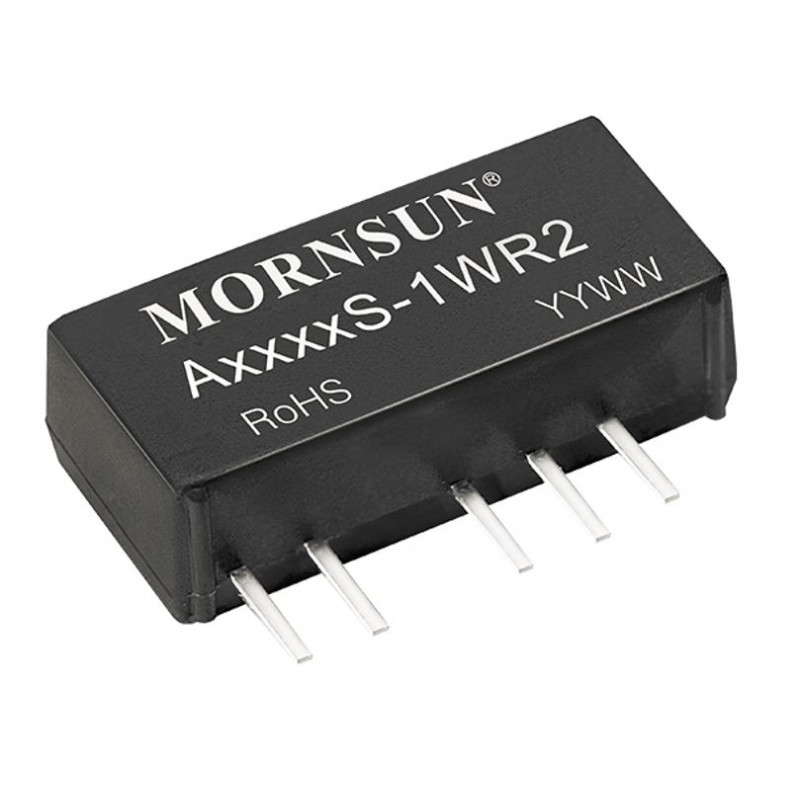

A0303S-1WR2 Mornsun 3.3V to ±3.3V DC-DC Converter 1W Power Supply Module - Ultra Compact SIP Package
- Product Code: EC-16601
- Availability: Out Of Stock
-
Rs.289.00
- (Excluding 18% GST)
