K7812-500R3 series are high efficiency switching regulators and ideal substitutes for LM7812 series three-terminal linear regulators. The converters feature high efficiency, low loss, short circuit protection, positive or negative output voltage, and there is no need for a heat sink. These products are widely used in applications such as industrial control, instrumentation and electric power.

Features:-

• High efficiency up to 95%
• No-load input current as low as 0.2mA
• Operating ambient temperature range: -40℃ to +85℃
• Support the negative output
• Output short-circuit protection
• Pin-out compatible with LM78XX linear regulators
• IEC60950, UL60950, EN60950 approved

Specifications:-

• I/p Voltage range:15-36vdc
• Nominal voltage:24Vdc , 12Vdc
• O/p voltage:+12V,-12V
• O/p current:500(mA)
• wattage:0.5W
• Isolation: No
• Package: SIP

Package Includes:-

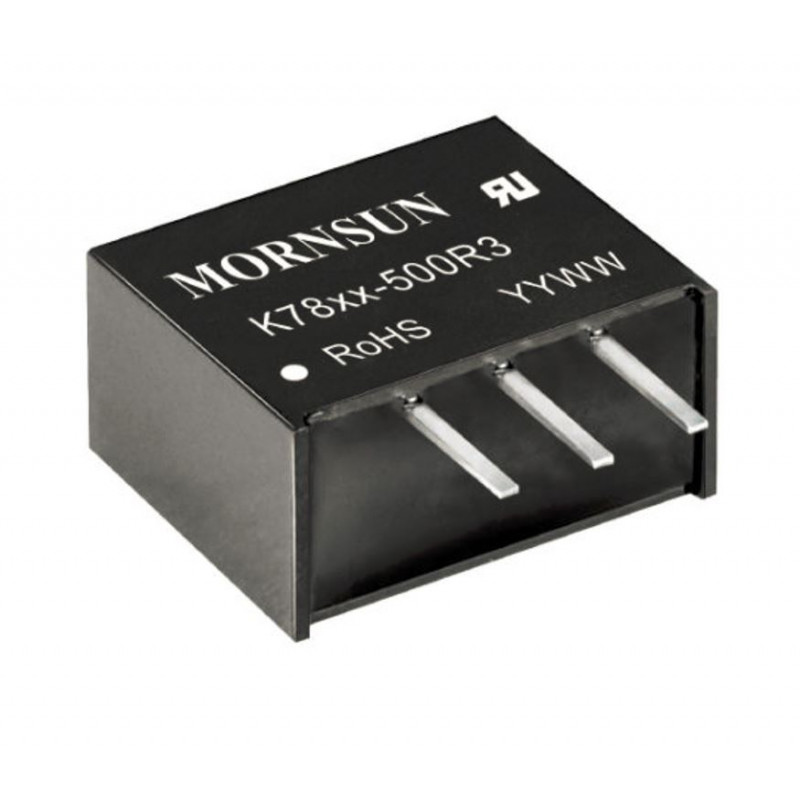

1 x K7812-500R3 Mornsun +12V/-12V Output DC-DC Converter 0.5W Power Supply Module - SIP Package
