K7815-1000R3 series are high efficiency switching regulators and ideal substitutes for LM7815 series three-terminal linear regulators. The converters feature high efficiency, low loss, short circuit protection, positive or negative output voltage, and there is no need for a heatsink. These product are widely used in applications such as industrial control, instrumentation and electric power
Features:-
- High efficiency up to 96%
- No-load input current as low as 0.1mA
- Operating ambient temperature range -40℃ to +85℃
- Support the negative output
- Output short-circuit protection
- Pin compatible with LM78xx series
- IEC60950, UL60950, EN60950 Approval
Specifications:-
- I/p Voltage range:20-36vdc
- Nominal voltage:24Vdc,12Vdc
- O/p voltage:+15V,-15V
- O/p current:1000(mA)
- wattage:1W
- Isolation: No
- Package: SIP
Package Includes:-
1 x K7815-1000R3 Mornsun +15V/-15V Output DC-DC Converter 1W Power Supply Module - SIP Package
Download DATASHEET :
| Brand/Manufacturer | |
| Country Of Origin | |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

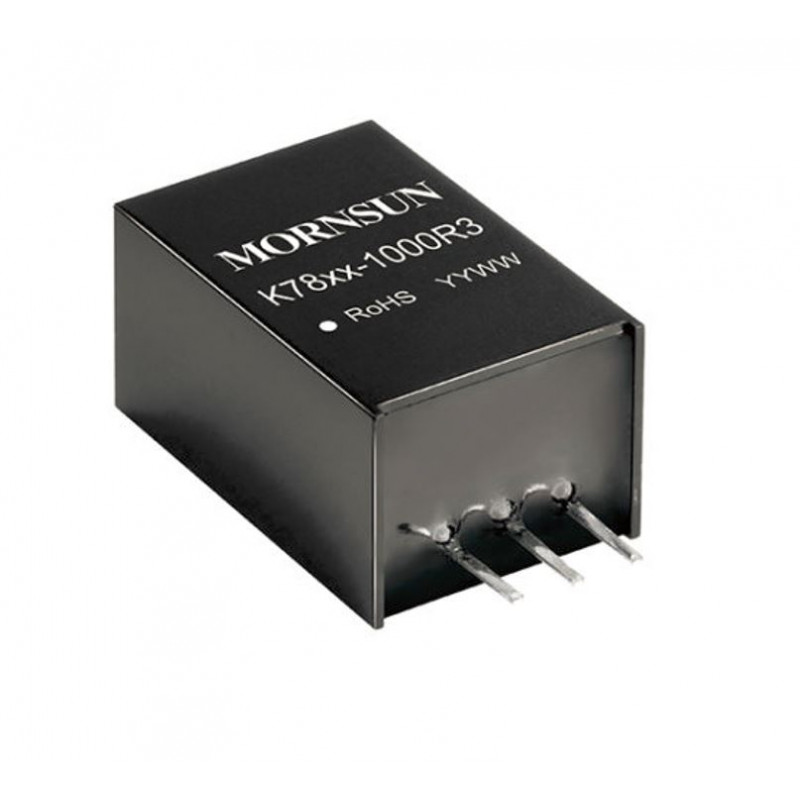

K7815-1000R3 Mornsun +15V/-15V Output DC-DC Converter 1W Power Supply Module - SIP Package
- Product Code: EC-16723
- Availability: Out Of Stock
-
Rs.299.00
- (Excluding 18% GST)
