Ultra-wide 4:1 input voltage range
High efficiency up to 86%
I/O test isolation voltage: 2.25k VDC
Operating ambient temperature range: -40 to +85
Input under-voltage protection, output short circuit, over-current, overvoltage protection
Low output ripple & noise
Input reverse polarity protection available with chassis(A2S ) or Din-Rail mounting (A4S)
version
EN62368 approved (URA1D_YMD-6WR3)
EN60950 approved (URB1D_YMD-6WR3)
Meets EN50155 railway standard
Industry standard pin-out


Brand/Manufacturer	Mornsun
Country Of Origin	China
Packer / Importer Address	Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP	Rs. 1355.82 (Inclusive of all Taxes)

* Product Images are shown for illustrative purposes only and may differ from actual product.

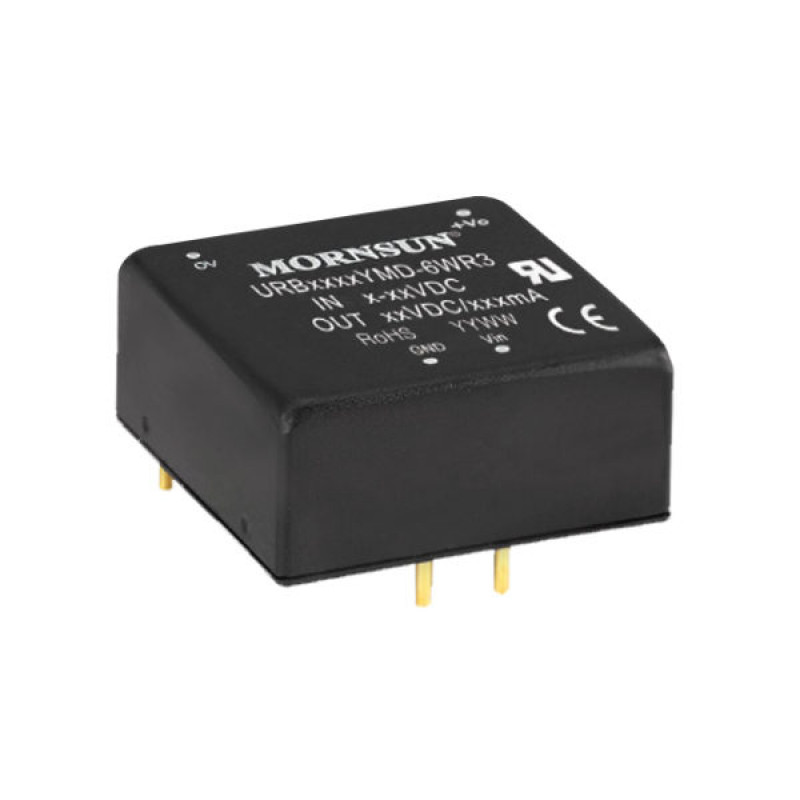

URB1D05YMD-6WR3 Mornsun 110V to 5V DC-DC Converter 6W Power Supply Module - DIP Package
