Ultra-wide 4:1 input voltage range
High efficiency up to 90% with full load
High efficiency up to 82% with 5% load
No-load power consumption as low as 0.14W
I/O isolation test voltage1.5k VDC
Input under-voltage protection, output short-circuit, over-voltage, over-current protection
Operating ambient temperature range: -40 to +80 Deg C
Meets CISPR32/EN55032 CLASS A without external components
Six-sided metal shielded package
Input reverse polarity protection available with Chassis (A2S) or 35mm DIN-Rail mounting (A4S) version

I/p Voltage range: 18-75V
Nominal voltage: 48V
O/p voltage: 5V
O/p current: 6000/0mA
wattage: 30W
Isolation:1.5kvdc
Package: Horizontal DIP Package

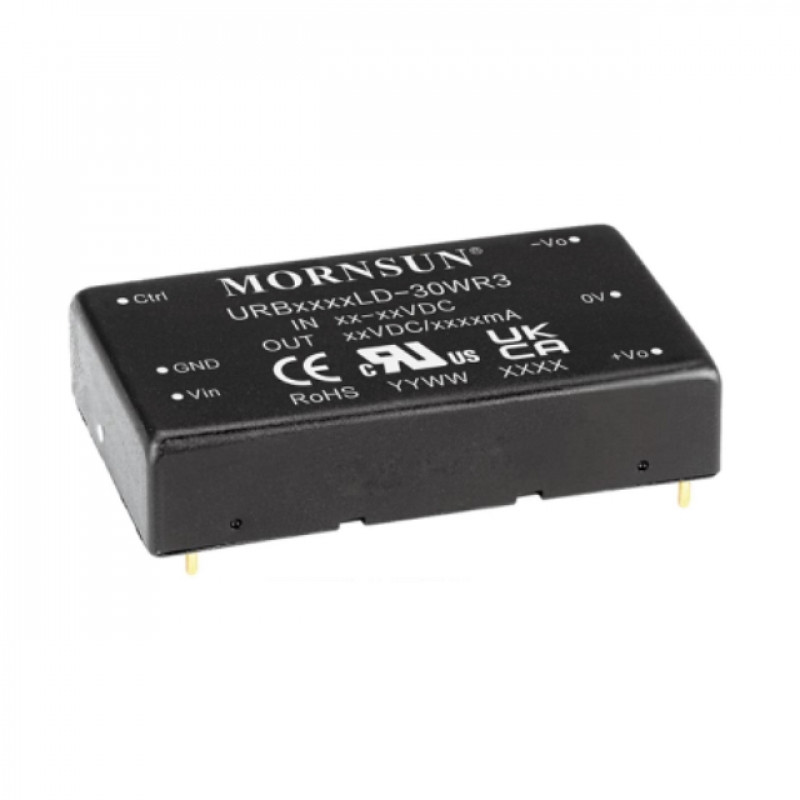

1 x URB4805LD-30WR3 Mornsun 48V to 5V DC-DC Converter 30W Power Supply Module - Horizontal DIP Package


Brand/Manufacturer	Mornsun
Country Of Origin	China
Packer / Importer Address	Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP	Rs. 2653.82 (Inclusive of all Taxes)

* Product Images are shown for illustrative purposes only and may differ from actual product.

URB4805LD-30WR3 Mornsun 48V to 5V DC-DC Converter 30W Power Supply Module - Horizontal DIP Package
