LM150-12A15 series is one of Mornsun’s dual output non-isolation enclosed AC-DC switching power supply. It features universal AC input and at the same time accepts DC input voltage, cost-effective, high efficiency, high reliability and double or reinforced insulation. These Converters offer excellent EMC performance and meet IEC/EN61000-4, IEC/UL/EN62368, GB4943 standards and they are not only specific Used in the laser galvanometer industry, but also widely used in current sensors, motors and other fields.
Key Specifications
| Type | Enclosed Type Dual Output |
| Output Power | 150W |
| Series | LM150-12A |
| Part Number | LM150-12A15 |
| Mount | Enclosed |
| IP Level | Non-Waterproof |
| Output Voltage | 15V, -15V |
| Output Current | 5A, 5A |
Features
- Special switching power supply designed for professional laser galvanometer industry
- Universal 165- 264VAC or 180 - 370VDCInput voltage
- Accepts AC or DC input (dual-use of same terminal)
- Operating ambient temperature range: -30℃to+70℃
- High efficiency
- High I/O isolation test voltage up to 3000VAC
- Low ripple & noise
- Output short circuit, over-current, over-voltage protection
- Over-voltage class Ⅲ (designed to meet EN61558)
- Operating altitude up to 5000m
Download DATASHEET :
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 2535.82 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

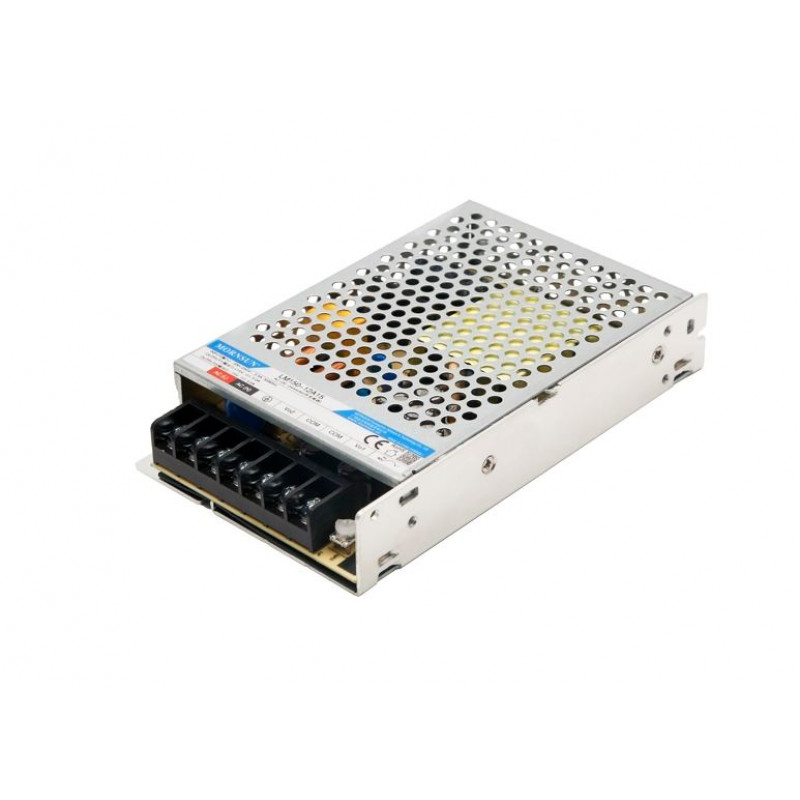

LM150-12A15 Mornsun SMPS - (15V 5A) and (-15V 5A) - 150W AC/DC Enclosed Switching Dual Output Power Supply
- Product Code: EC-10642
- Availability: Out Of Stock
-
Rs.2149.00
- (Excluding 18% GST)
