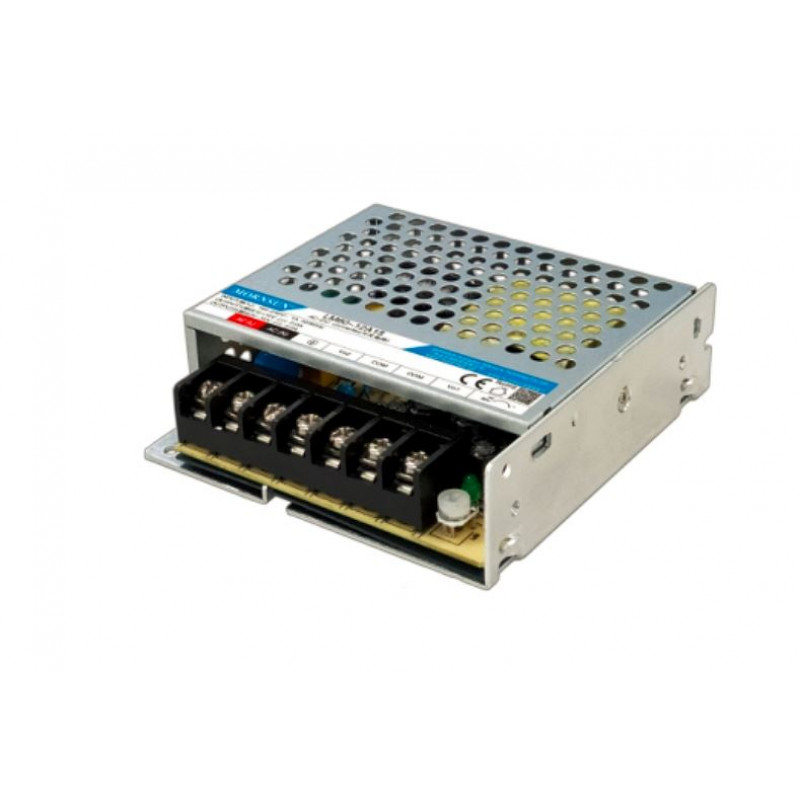

  • LM60-12A15 Mornsun SMPS - (15V 2A) and (-15V 2A) - 60W AC/DC Enclosed Switching Dual Output Power Supply

LM60-12A15 series is one of Mornsun’s dual output non-isolation enclosed AC-DC switching power supply. It features universal AC input and at the same time accepts DC input voltage, cost-effective, high efficiency, high reliability and double or reinforced insulation. These converters offer excellent EMC performance and meet IEC/EN61000-4, IEC/UL/EN62368, GB4943 standards and they are not only specific used in the laser galvanometer industry, but also widely used in current sensors, motors and other fields.


Key Specifications
Type Enclosed Type Dual Output
Output Power 60W
Series LM60-12A
Part Number LM60-12A15
Mount Enclosed
IP Level  Non-Waterproof
Output Voltage 15V, -15V
Output Current 2A, 2A


Features

  • Special switching power supply designed for professional laser galvanometer industry
  • Universal 165 - 264VAC or 180 - 370VDCInput voltage
  • Operating ambient temperature range: -30℃to+70℃
  • Low standby power consumption, high efficiency
  • Output short circuit, over-current, over-voltage protection
  • High I/O isolation test voltage up to 3000VAC
  • Operating altitude up to 5000m


Download DATASHEET :

Download

Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
