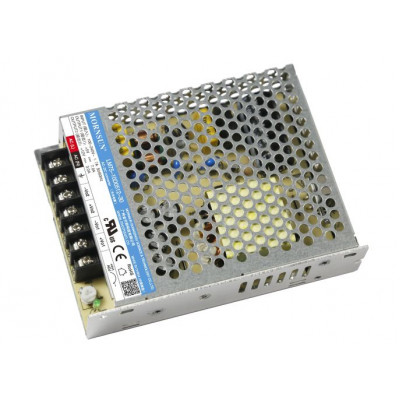

  • LM75-10D0524-20 Mornsun SMPS - (5V 5A) and (24V 2A) - 73W AC/DC Enclosed Switching Dual Output Power Supply

LM75-10D0524-20 is one of power converter design features two isolated output versions, which can independently supply two different loads in the system that need to be isolated from each other. The products can be used in harsh working environments with an ambient temperature range from -30℃ to +70℃, without the need of a fan for further heat dissipation. In addition, the converters EMC immunity performance meets the requirements of IEC61000 standard and meet emission standard CISPR32/EN55032, class B without any external components, thus providing excellent EMC protection. The products also meet IEC/EN/UL62368, EN60335, GB4943 safety standards. The converters integrate a variety of protection features and offer a high-performance to low-cost ratio providing the best power solution for a variety of industries such as industrial control equipment, instrumentation and smart home and building equipment application.

Key Specifications


Type Enclosed Type Dual Output
Output Power 73W
Series LM75-10D
Part Number LM75-10D0524-20
Mechanical Form Enclosed
IP Level  Non-Waterproof
Output Voltage 5V, 24V
Output Current 5A, 2A


  • Universal 90 - 264VAC or 120 - 373VDC Input voltage
  • Operating ambient temperature range: -30℃ to +70℃
  • High efficiency, high reliability and long lifetime
  • LED indicator for power on
  • Output short circuit, over-current, over-voltage protection
  • Withstand 300VAC surge input for 5s
  • High I/O isolation test voltage up to 3000VAC
  • Safety according to IEC/EN/UL62368, EN60335, GB4943
  • Emissions compliant to CISPR32/EN55032 CLASS B
  • Withstand 5G vibration test
  • Operating altitude up to 5000m

Detailed Specifications


Input voltage range 90-264VAC; 120-373VDC
Inrush current (max.) Cold start, 50A at 230VAC
Output voltage adjustable range 4.75-5.5VDC
Working current range 0.5-6A, 0.2-3A
Efficiency  84%
Max. capacitive load 5000µF, 2000µF
Input current (max.) 0.9A at 230VAC
Short circuit protection Hiccup, continuous, self-recovery
Over-current protection 110% Io, self-recovery
Withstand voltage 300VAC
Working temperature -30 - 70°C
Connection Terminal block
Dimension (LxWxH) 129 x 97 x 30 mm
Weight 310 gm
Cooling Method Free air convection
Case Material Metal (AL1100, SGCC)
MTBF >300000 Hrs
Safety Class CLASS I
Safety standards Meet IEC/EN/UL62368/EN60335/GB4943
EMC standards CISPR32/EN55032 CLASS B, IEC/EN61000-3-2 CLASS A, IEC/EN 61000-4-3 10V/m
Certification CE, RoHS
Warranty 3 years

Related Documents

LM75-10D0524-20 Data Sheet

Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 1875.02 (Inclusive of all Taxes)
