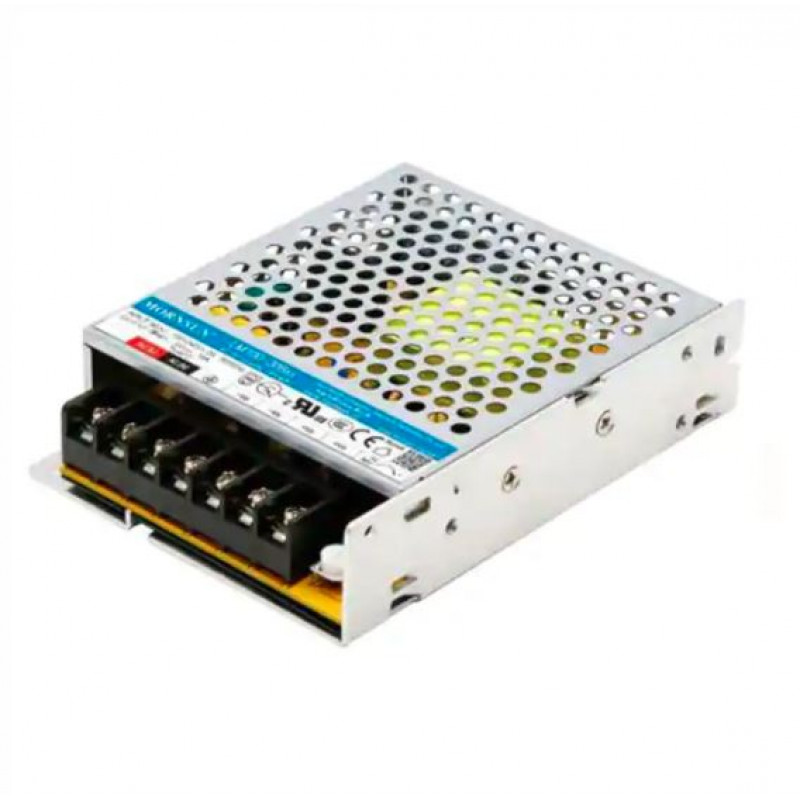

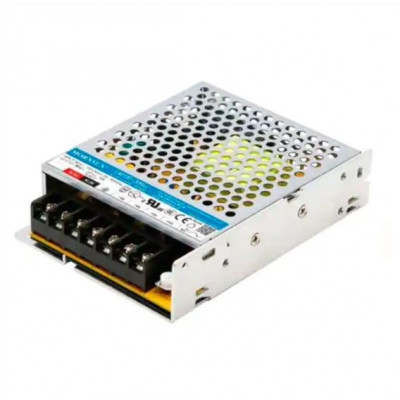

  • LM15-23B12 Mornsun SMPS - 12V 1.3A - 15W AC/DC Enclosed Switching Single Output Power Supply

LM15-23B12 series is one of Mornsun’s enclosed AC-DC switching power supply. It features universal AC input and at the same time accepts DC input voltage, cost-effective, low no load power consumption, high efficiency and high reliability. These converters offer excellent EMC performance and meet IEC/EN61000-4, CISPR32/EN55032, IEC/UL/EN62368, GB4943 standards and they are widely used in areas of industrial, LED, street light control, electricity, security, telecommunications, smart home etc.

Key Specifications:


Type Enclosed Type Single Output
Output Power 15W
Series LM15-23B
Part Number LM15-23B12
Mechanical Form Enclosed
IP Level  Non-Waterproof
Output Voltage 12V
Output Current 1.3A


  • 85 - 305VAC or 100 - 430VDC input voltage
  • Accepts AC or DC input (dual-use of same terminal)
  • Operating ambient temperature range: -30℃ to +70℃
  • Up to 83% efficiency
  • No-load power consumption < 0.5W
  • High I/O isolation test voltage up to 4000VAC
  • Output short circuit, over-current, over-voltage
  • protection
  • Over-voltage class Ⅲ (designed to meet EN61558)
  • Operating up to 5000m altitude
  • Warranty - 3 years

Download DATASHEET :


Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 824.82 (Inclusive of all Taxes)
Write a review
Please login or register to review

* Product Images are shown for illustrative purposes only and may differ from actual product.

LM15-23B12 Mornsun SMPS - 12V 1.3A - 15W AC/DC Enclosed Switching Single Output Power Supply

  • Product Code: EC-9831
  • Availability: Out Of Stock
  • Rs.799.00
  • (Excluding 18% GST)
