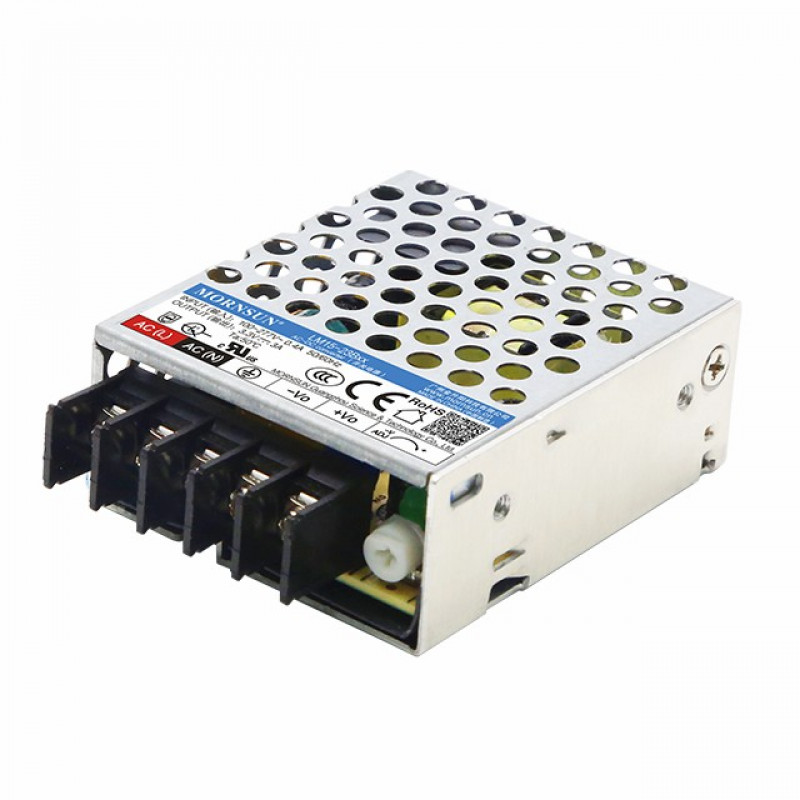

  • LM15-23B15 Mornsun SMPS - 15V 1A - 15W AC/DC Enclosed Switching Single Output Power Supply

LM15-23B15 series is one of Mornsun’s enclosed AC-DC switching power supply. It features universal AC input and at the same time accepts DC input voltage, cost-effective, low no load power consumption, high efficiency and high reliability. These converters offer excellent EMC performance and meet IEC/EN61000-4, CISPR32/EN55032, IEC/UL/EN62368, GB4943 standards and they are widely used in areas of industrial, LED, street light control, electricity, security, telecommunications, smart home etc.


Key Specifications

Type Enclosed Type Single Output
Output Power 15W
Series LM15-23B
Part Number LM15-23B15
Mechanical Form Enclosed
IP Level  Non-Waterproof
Output Voltage 15V
Output Current
1A


Features

  • 85 - 305VAC or 100 - 430VDC input voltage
  • Accepts AC or DC input (dual-use of same terminal)
  • Operating ambient temperature range: -30℃to+70℃ Up to 83% efficiency
  • No-load power consumption < 0.5W
  • High I/O isolation test voltage up to 4000VAC
  • Output short circuit, over-current, over-voltage protection
  • Over-voltage class Ⅲ (designed to meet EN61558)
  • Operating up to 5000m altitude


Download DATASHEET :

Download

Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 0 (Inclusive of all Taxes)
Write a review
Please login or register to review

* Product Images are shown for illustrative purposes only and may differ from actual product.

LM15-23B15 Mornsun SMPS - 15V 1A - 15W AC/DC Enclosed Switching Single Output Power Supply

  • Product Code: EC-10613
  • Availability: 117
  • Rs.949.00
  • (Excluding 18% GST)
