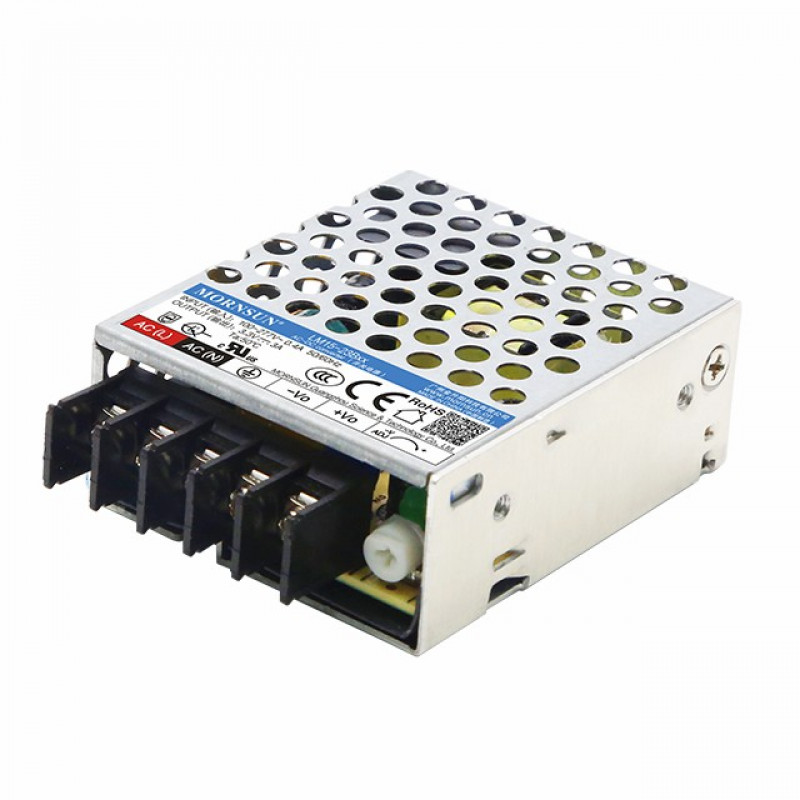

  • LM15-23B24 Mornsun SMPS - 24V 0.625A - 15W AC/DC Enclosed Switching Single Output Power Supply

LM15-23B24 series is one of Mornsun’s enclosed AC-DC switching power supply. It features AC input and at the same time accepts DC input voltage, cost-effective, low no load power consumption, high efficiency, high reliability and double or reinforced insulation. These converters offer excellent EMC performance and meet IEC/EN61000-4, CISPR32/EN55032, IEC/UL/EN62368, IEC/EN60335, GB4943, IEC/EN61558 standards and they are widely used in areas of industrial, LED, street light control, electricity, security, telecommunications, smart home etc.


Key Specifications:

Type Enclosed Type Single Output
Output Power 15W
Series LM15-23B
Part Number LM15-23B24
Mechanical Form Enclosed
IP Level  Non-Waterproof
Output Voltage 24V
Output Current 0.625A


Features

  • 85 - 305VAC or 100 - 430VDC input voltage
  • Accepts AC or DC input (dual-use of same terminal)
  • Operating ambient temperature range: -30℃to+70℃
  • Up to 83% efficiency
  • No-load power consumption < 0.5W
  • High I/O isolation test voltage up to 4000VAC
  • Output short circuit, over-current, over-voltage protection
  • Over-voltage class Ⅲ (designed to meet EN61558)
  • Operating up to 5000m altitude
  • Warranty - 3 years


Download DATASHEET :

Download

Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 824.82 (Inclusive of all Taxes)
