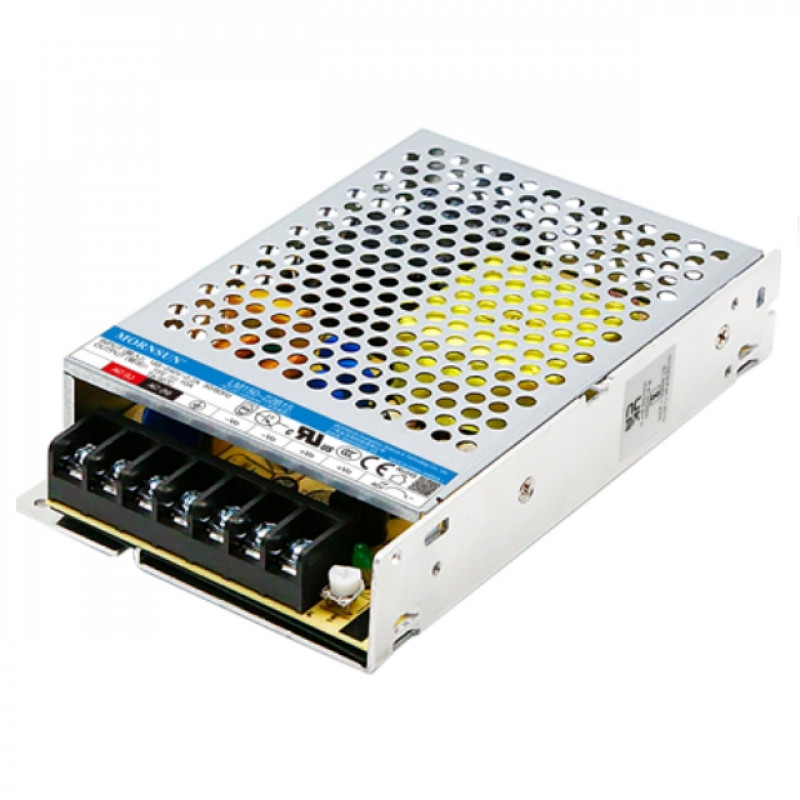

  • LM150-22B12 Mornsun SMPS - 12V 12.5A - 150W AC/DC Enclosed Switching Single Output Power Supply

LM150-22B12 series is one of Mornsun’s enclosed AC-DC switching power supply. It features AC input and at the same time accepts DC input voltage, cost-effective, low no load power consumption, high efficiency, high reliability and double or reinforced insulation. These converters offer excellent EMC performance and meet IEC/EN61000-4, CISPR32/EN55032, IEC/UL/EN62368, IEC/EN60335, GB4943, IEC/EN61558 standards and they are widely used in areas of industrial, LED, street light control, electricity, security, telecommunications, smart home etc.


Key Specifications:

Type Enclosed Type Single Output
Output Power 150W
Series LM150-22B
Part Number LM150-22B12
Mechanical Form Enclosed
IP Level  Non-Waterproof
Output Voltage 12V
Output Current 12.5A


Features

  • 165 - 264VAC or 180 - 370VDC input voltage
  • Accepts AC or DC input (dual-use of same terminal)
  • Operating ambient temperature range: -30℃ to +70℃
  • Low standby power consumption, high efficiency
  • High I/O isolation test voltage up to 4000VAC
  • Low ripple & noise
  • Output short circuit, over-current, over-voltage protection
  • Over-voltage class Ⅲ (designed to meet EN61558)
  • Operating altitude up to 5000m
  • Warranty - 3 years


Download DATASHEET :

Download

Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 1768.82 (Inclusive of all Taxes)
Write a review
Please login or register to review

* Product Images are shown for illustrative purposes only and may differ from actual product.

LM150-22B12 Mornsun SMPS - 12V 12.5A - 150W AC/DC Enclosed Switching Single Output Power Supply

  • Product Code: EC-9837
  • Availability: 1
  • Rs.1499.00
  • (Excluding 18% GST)
