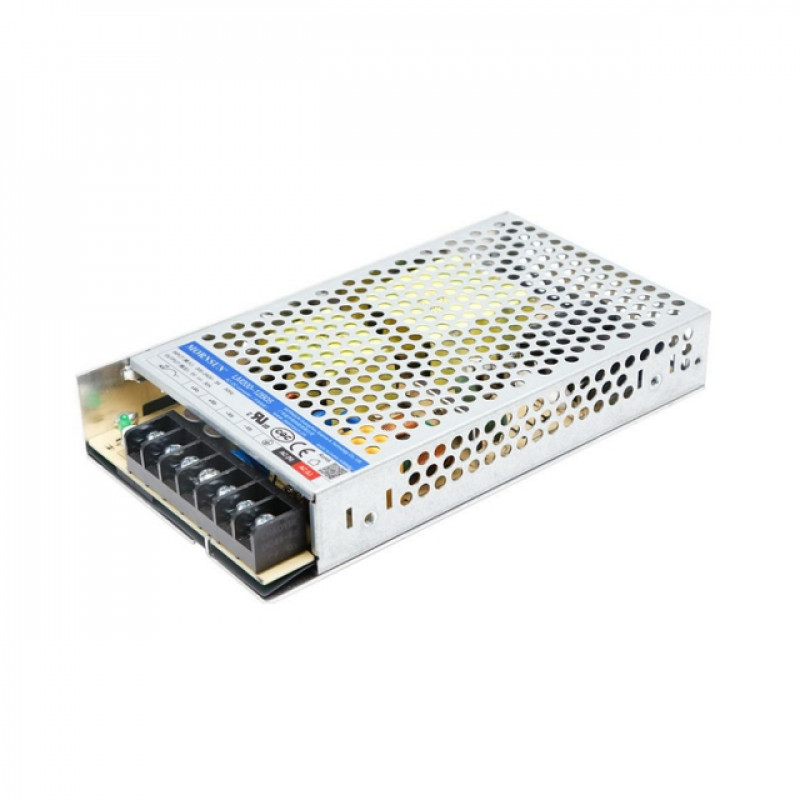

  • LM200-12B24 Mornsun SMPS - 24V 8.8A - 211.2W  AC/DC Enclosed Switching Single Output Power Supply

LM200-12B24 is one of Mornsun’s enclosed AC-DC switching power supply. It features selectable AC input and at the same time accepts DC input voltage, cost-effective, low no load power consumption, high efficiency and high reliability. These power supply offer excellent EMC performance and meet IEC/EN61000-4, CISPR32/EN55032, IEC/UL/EN62368, EN60335, GB4943 standards and they are widely used in areas of industrial, LED, street light control, electricity, security, telecommunications, smart home etc.


Key Specifications

Type Enclosed Type Single Output
Output Power 211.2W
Series LM200-12B
Part Number LM200-12B24
Mechanical Form Enclosed
IP Level  Non-Waterproof
Output Voltage 24V
Output Current 8.8A


Features

• Selectable AC input range: 90 ~ 132VAC/180 ~ 264VAC

• DC input range: 240 ~ 373VDC(Switch in position of 230)

• Ultra low standby power consumption: < 0.75W @230VAC

• Operating ambient temperature range: - 30℃ ~ +70℃

• Compact size with 1U low profile

• LED indicator for power on

• Output short circuit, over-current, over-voltage, over-temperature protection

• Safety according to IEC/EN/UL62368, EN60335, GB4943

• Withstand 300VAC surge input for 5s (Switch in position of 230)

• Operating altitude up to 5000m


Detailed Specifications

Input voltage range 90-132VAC; 180-264VDC
Inrush current (max.) Cold start, 80A at 230VAC
Output voltage adjustable range 21.6-28.8V
Efficiency at 230VAC 88.5%
Max. capacitive load 1500µF
Input current (max.) 3A at 230VAC
Short circuit protection Hiccup, continuous, self-recovery
Over-current protection 110%-150% Io, self-recovery
Withstand voltage 300VAC
Working temperature -30 - 70°C
Connection Terminal block
Dimension (LxWxH) 179 x 99 x 30 mm
Weight 600 gm
Cooling Method Free air convection
Case Material Metal (AL1100, SGCC)
MTBF >300000 Hrs
Safety Class CLASS I
Safety standards Meet IEC/EN/UL62368/EN60335/GB4943
EMC standards CISPR32/EN55032 CLASS B, IEC/EN61000-3-2 CLASS A, IEC/EN 61000-4-3 10V/m
Certification CE, CQC
Warranty 3 years


Download DATASHEET :

Download

Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 2063.82 (Inclusive of all Taxes)
