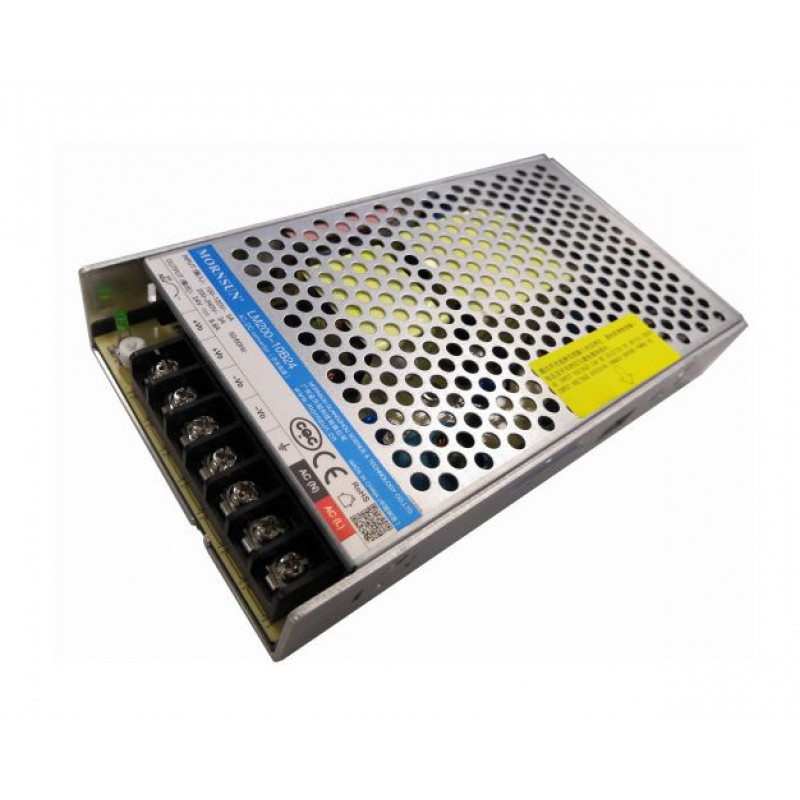

  • LM200-10B36 Mornsun SMPS - 36V 5.9A - 212.4W  AC/DC Enclosed Switching Single Output Power Supply

LM200-10B36 is one of Mornsun’s enclosed AC-DC switching power supply. It features selectable AC input and at the same time accepts DC input voltage, cost-effective, low no load power consumption, high efficiency and high reliability. These power supply offer excellent EMC performance and meet IEC/EN61000-4, CISPR32/EN55032, IEC/UL/EN62368, EN60335, GB4943 standards and they are widely used in areas of industrial, LED, street light control, electricity, security, telecommunications, smart home etc.

Key Specifications


TypeEnclosed Type Single Output
Output Power212.4W
Part NumberLM200-10B36
Mechanical FormEnclosed
IP Level Non-Waterproof
Output Voltage36V
Output Current5.9A


• Selectable AC input range: 90 ~ 132VAC/180 ~ 264VAC

• DC input range: 240 ~ 373VDC(Switch in position of 230)

• Ultra low standby power consumption: < 0.75W @230VAC

• Operating ambient temperature range: - 30℃ ~ +70℃

• Compact size with 1U low profile

• LED indicator for power on

• Output short circuit, over-current, over-voltage, over-temperature protection

• Safety according to IEC/EN/UL62368, EN60335, GB4943

• Withstand 300VAC surge input for 5s (Switch in position of 230)

• Operating altitude up to 5000m

Detailed Specifications

Input voltage range90-132VAC; 180-264VDC
Inrush current (max.)Cold start, 80A at 230VAC
Output voltage adjustable range21.6-28.8V
Efficiency at 230VAC88.5%
Max. capacitive load1500µF
Input current (max.)3A at 230VAC
Short circuit protectionHiccup, continuous, self-recovery
Over-current protection110%-150% Io, self-recovery
Withstand voltage300VAC
Working temperature-30 - 70°C
ConnectionTerminal block
Dimension (LxWxH)179 x 99 x 30 mm
Weight600 gm
Cooling MethodFree air convection
Case MaterialMetal (AL1100, SGCC)
MTBF>300000 Hrs
Safety ClassCLASS I
Safety standardsMeet IEC/EN/UL62368/EN60335/GB4943
EMC standardsCISPR32/EN55032 CLASS B, IEC/EN61000-3-2 CLASS A, IEC/EN 61000-4-3 10V/m
CertificationCE, CQC
Warranty3 years

Related Documents

LM200-10B36 Data sheet

Brand/Manufacturer Generic
Country Of Origin China
