FEATURES :

Ultra-wide 4:1 input voltage range
High efficiency up to 90%
No-load power consumption as low as 0.24W
I/O isolation test voltage 1.5k VDC
Input under-voltage protection, output short circuit, over-current, overvoltage protection
Operating ambient temperature range -40 to +105 Deg C
Input reverse polarity protection available with chassis(A2S) or 35mm DIN-rail mounting(A4S) version
Industry Standard pin-out
Meets EN50155 railway standard

I/p Voltage range:9-36V

Nominal voltage: 24V

O/p voltage: ±15V

O/p current: ±667mA

wattage:20W

Isolation:1.5kvdc

Package: DIP


Brand/Manufacturer	Mornsun
Country Of Origin	China
Packer / Importer Address	Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP	Rs. 2347.02 (Inclusive of all Taxes)

* Product Images are shown for illustrative purposes only and may differ from actual product.

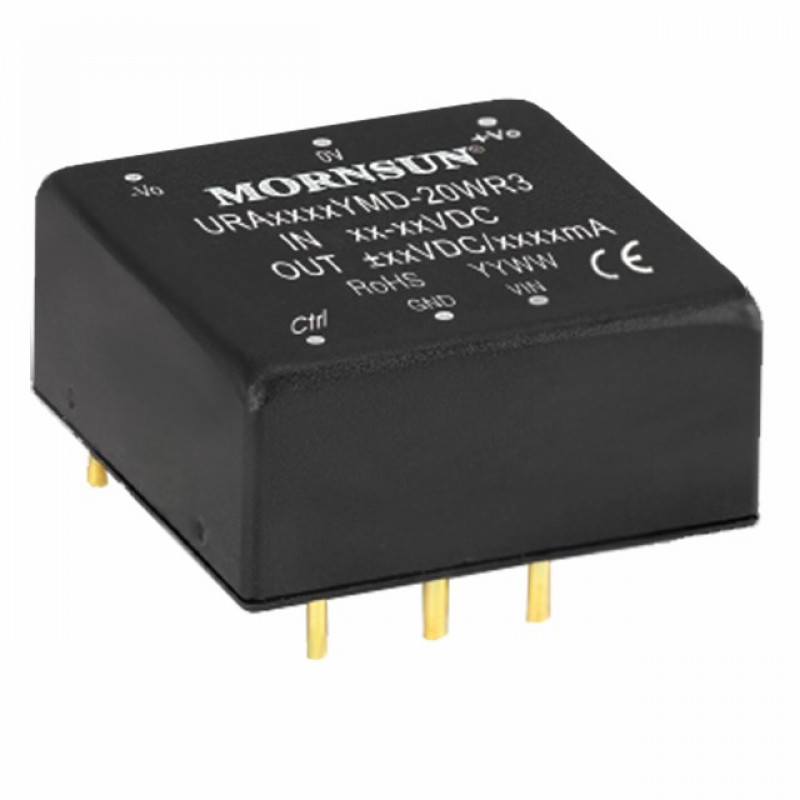

URA2415YMD-20WR3 Mornsun 24V to ±15V DC-DC Converter 20W Power Supply Module - DIP Package
