URB_S-6WR3 series of isolated 6W DC-DC converter products with a 4:1 input voltage range. They feature efficiencies of up to 87%, 1600VDCinput to output isolation, operating ambient temperature range of -40℃ to +105℃, input under-voltage protection, output short-circuit, over-current protection and they are widely used in applications such as medical care, industrial control, electric power, instruments and communication fields..

Features:-

• Ultra-wide 4:1 input voltage range
• High efficiency up to 87%
• No-load power consumption as low as 0.12W
• I/O isolation test voltage 1.6K VDC
• Input under-voltage protection, output short circuit, over-current protection
• Operating ambient temperature range: -40℃ ~+105℃
• Industry standard pin-out
• EN62368 approved

Specifications:-

• I/p Voltage range:9-36V
• Nominal voltage:24V
• O/p voltage:24V
• O/p current:250/0mA
• wattage:6W
• Isolation:1.5kvdc
• Package: SIP

Package Includes:-

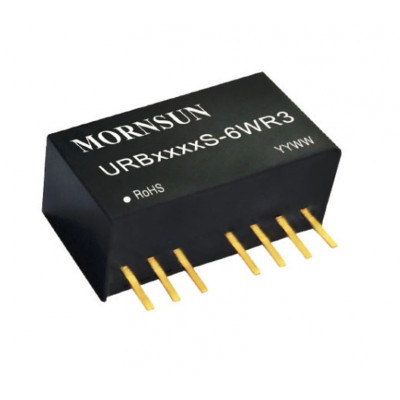

1 x URB2424S-6WR3 Mornsun 24V to 24V DC-DC Converter 6W Power Supply Module - Compact SIP Package

Download DATASHEET :

Download
