Wide 2:1 input voltage range
High efficiency up to 88%
No-load power consumption as low as 0.09W
I/O isolation test voltage 1.5k VDC
Operating ambient temperature range: -40C to +85C
Meets CISPR32/EN55032 CLASS A, without extra components (except for 5VDC input)
Input under-voltage protection, output short- circuit, over-current, over-voltage protection
Industry standard pin-out
EN62368 approved

I/p Voltage range:18-36V
Nominal voltage:24V
O/p voltage:5V
O/p current:1200mA
wattage:6W
Isolation:1.5kvdc
Package: DIP

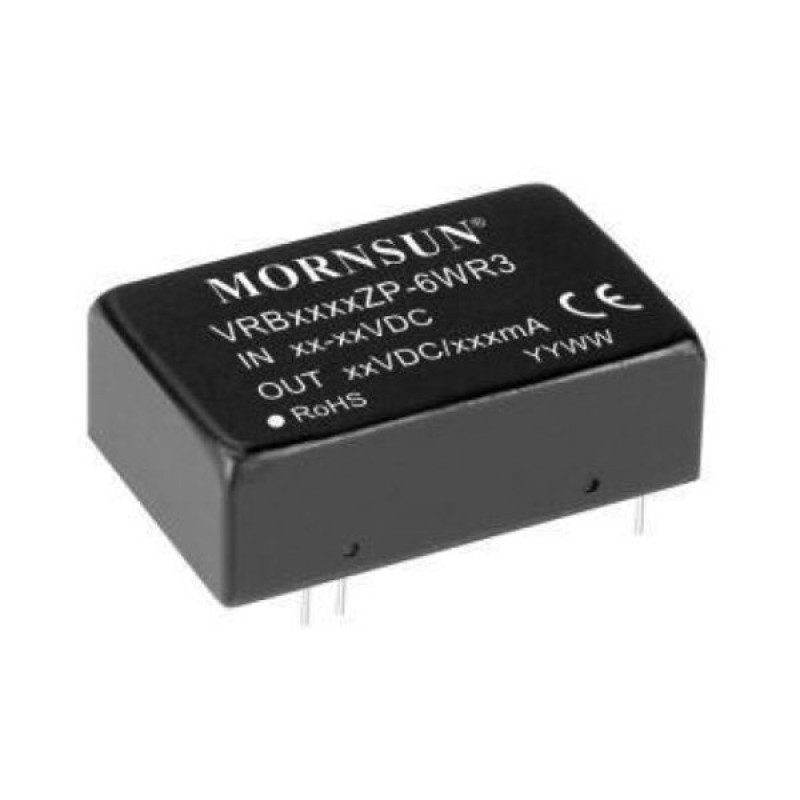

1 x VRB2405ZP-6WR3 Mornsun 24V to 5V DC-DC Converter 6W Power Supply Module - DIP Package


Brand/Manufacturer	Mornsun
Country Of Origin	China
Packer / Importer Address	Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP	Rs. 728.06 (Inclusive of all Taxes)

* Product Images are shown for illustrative purposes only and may differ from actual product.

VRB2405ZP-6WR3 Mornsun 24V to 5V DC-DC Converter 6W Power Supply Module - DIP Package
