WRB4815S-3WR2 series are isolated 3W DC-DC products with 2:1 input voltage and conventional voltage output. The product has a relatively compact SIP plastic package, and features high efficiency, operating temperature of -40℃to +85 ℃. The smaller size and fine cost design make the converter an ideal solution in communication, instruments, and industrial electronics applications.
Features:-
- Compact SIP package
- Wide input voltage range (2:1)
- Operating temperature range: -40℃ to +85℃
- Isolation voltage: 3.0K VDC
- Short circuit protection (self-recovery)
- High power density
- Remote On/Off
- EN60950 approval
Specifications:-
- I/p Voltage range:18-36V
- Nominal voltage:24V
- O/p voltage:3.3V
- O/p current:758/38mA
- wattage:3W
- Isolation:3.0kvdc
- Package: SIP
Package Includes:-
1 x WRF2403S-3WR2 Mornsun 24V to 3.3V DC-DC Converter 3W Power Supply Module - Compact SIP Package
Download DATASHEET :
| Brand/Manufacturer | |
| Country Of Origin | |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

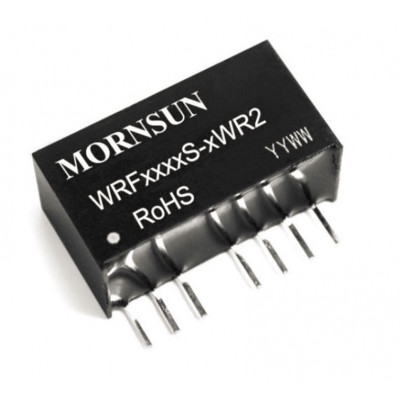

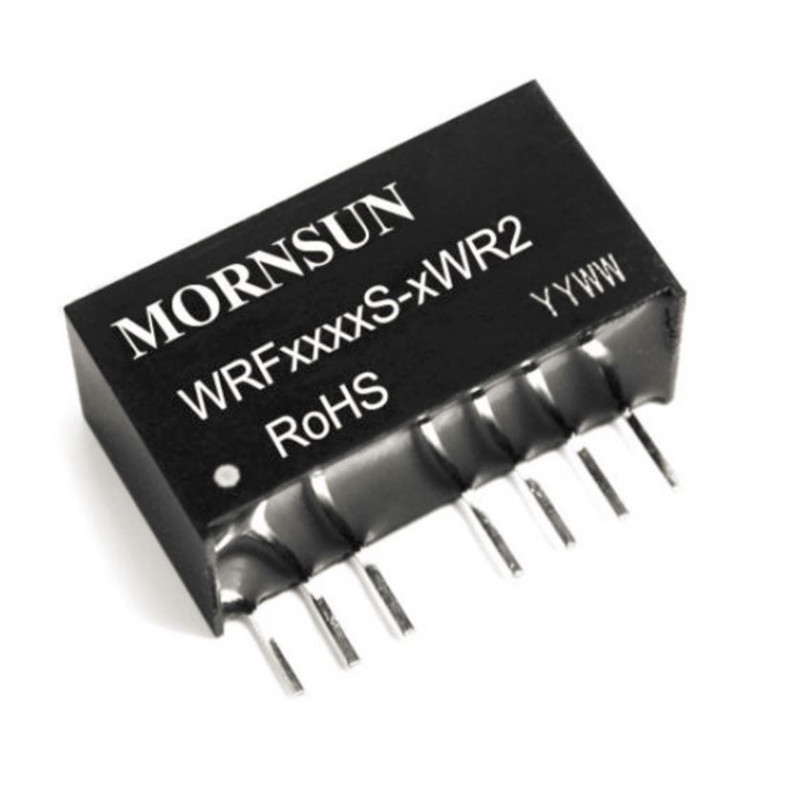

WRF2403S-3WR2 Mornsun 24V to 3.3V DC-DC Converter 3W Power Supply Module - Compact SIP Package
- Product Code: EC-16785
- Availability: 41
-
Rs.799.00
- (Excluding 18% GST)
