- High power density
- High efficiency up to 86%
- Operating ambient temperature range: -40℃ to+105℃
- No external components required
- Miniature SIP package
- Industry standard pin-out
- I/O isolation test voltage 1.5k VDC
- IEC60950/UL60950/EN60950 Approved
A0512S-2WR2 series is designed for use in distributed power supply systems and especially suitable in applications such as pure digital circuits, low frequency analog circuits, relay-driven circuits and data switching circuits, where:
1. The voltage of the input power supply is relatively stable with a variation of ±10%Vin or less;
2. An input to output isolation voltage of up to 1500VDC is necessary;
3. The requirement for a tight output regulation is not as strict.
Features:-
Specifications:-
- I/p Voltage range: 4.5-5.5
- Nominal voltage:5 Vdc
- O/p voltage:+-12V
- O/p current:+-83/8(mA)
- Wattage:2W
- Isolation:1.5kVdc
- Package : SIP
Package Includes:-
1 x A0512S-2WR2 Mornsun 5V to ±12V DC-DC Converter 2W Power Supply Module - Miniature SIP Package
Download DATASHEET :
| Brand/Manufacturer | |
| Country Of Origin | |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 565.22 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

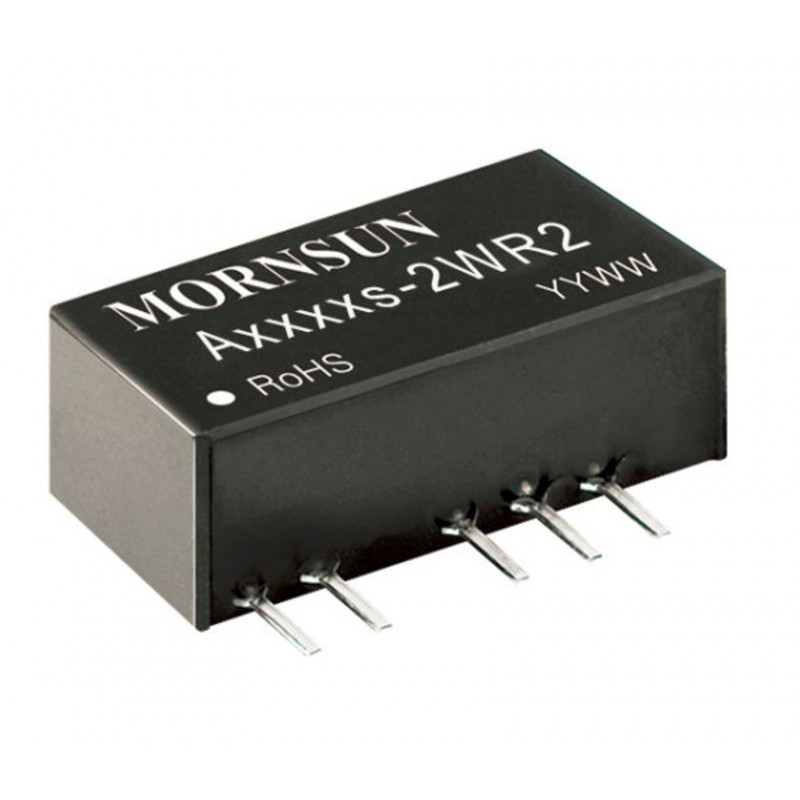

A0512S-2WR2 Mornsun 5V to ±12V DC-DC Converter 2W Power Supply Module - Miniature SIP Package
- Product Code: EC-16608
- Availability: 4
-
Rs.479.00
- (Excluding 18% GST)
