F0515S-2WR2 series are designed for use in distributed power supply systems and especially suitable in applications suchas puredigital circuits, low frequency analog circuits, relay-driven circuits and data switching circuits, where

1. The voltage of the input power supply is relatively stable with a variation of ±10%Vin or less;

2. A high input to output isolation voltage of ≤3000VDC is necessary;

3. The requirement for a tight output regulation and low ripple & noise is not as strict

Features:-

• Operating ambient temperature range: -40°C to +105°C
• High efficiency up to 86%
• High power density
• Miniature SIP package
• I/O isolation test voltage 3K VDC
• No extra components required
• Industry standard pin-out
• IEC60950, UL60950, EN60950 approved

Specifications:-

• I/p Voltage range:4.5-5.5vdc
• Nominal voltage:5Vdc
• O/p voltage:15V
• O/p current:133/13(mA)
• Wattage:2W
• Isolation:3kVdc
• Package: SIP

Package Includes:-

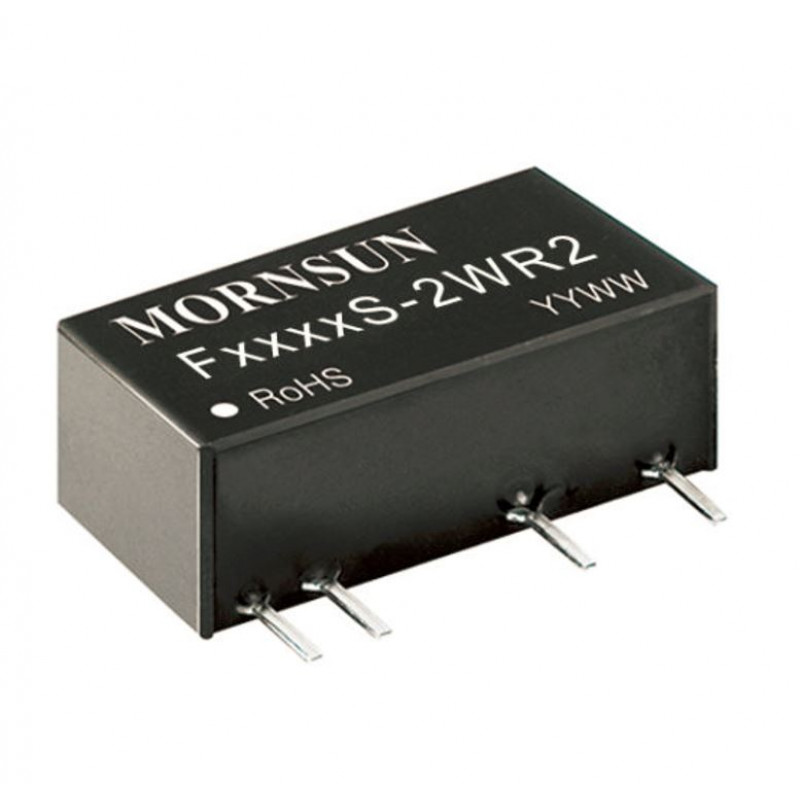

1 x F0515S-2WR2 Mornsun 5V to 15V DC-DC Converter 2W Power Supply Module - Miniature SIP Package
